YCS 464XE-E - Yard King 18" Walk-Behind Mower (2013) Engine & Blade Group (YCS464XE) Parts Diagram

18" Walk-Behind Mower

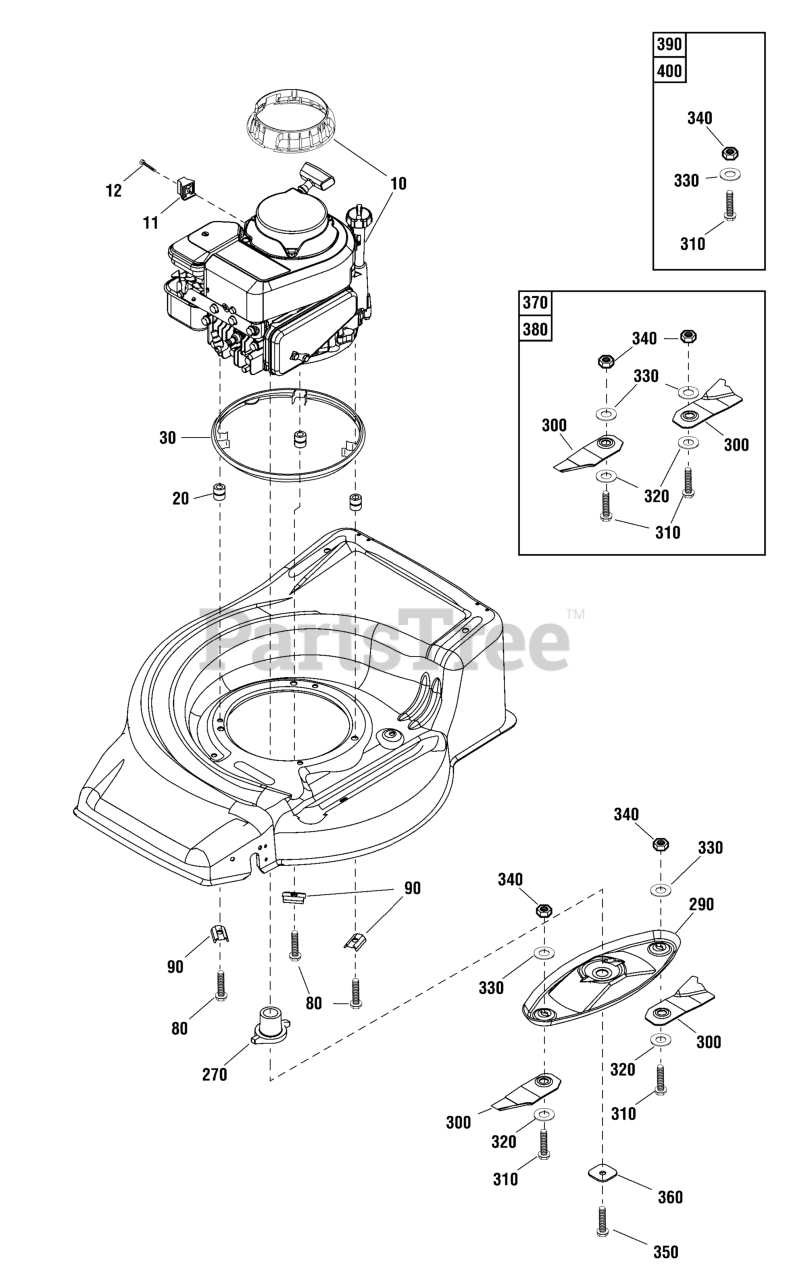

Engine & Blade Group (YCS464XE) Parts Diagram

  • Title

10

Murray 09T502-1513-H1

* ENGINE, Briggs & Stratton Series 450

$

$

Currently unavailable

11

Murray EE14444A

SPACER, Throttle Mount

$

$

Currently unavailable

12

SCREW, Hex Head Phillips, ST4.8 x 35

Note: (Not a serviceable part.)

$

$

Not available

20

Murray EN73043AZ

SPACER, 20mm

$

$

Currently unavailable

30

Murray EN73041AZ

SPACER RING

$

$

Currently unavailable

80

Murray HA21318D

BOLT, Taptite, 3/8 UNC x 50

$

$

Currently unavailable

90

Murray VV17130D

SADDLE PLATE

$

$

Currently unavailable

270

Murray EE14417A

SLEEVE, Locking, 4 Stroke

$

$

Currently unavailable

290

Murray CA09442G

BLADE Disc, Oval

$

$

Currently unavailable

300

BLADE, Low Profile

$

$

Not available

310

BOLT, Blade

$

$

Not available

320

WASHER, Blade Tension

$

$

Not available

330

WASHER, Belleville

$

$

Not available

340

NUT, Nylock, 3/8 UNC

$

$

Not available

350

Murray EE14484B

BOLT, Blade Disc

$

$

Currently unavailable

360

Murray EN73054B

WASHER, Blade Disc

$

$

Currently unavailable

370

Murray CA09506B

KIT, Blade & Bolt (1 Pair)

Note: (Includes Ref. Nos. 300, 310, 320, 330 & 340)

$

$

Currently unavailable

380

Murray CA09306P

KIT, Blade & Bolt, Bulk Pack (50 Pairs)

Note: (Includes Ref. Nos. 300, 310, 320, 330 & 340)

$

$

Currently unavailable

390

Murray CA09277B

KIT, Hardware, Blade Mounting, (1 Pair)

Note: (Includes Ref. Nos. 310, 330 & 340)

$

$

Currently unavailable

400

Murray CA09277P

KIT, Hardware, Blade Mounting , Bulk Pack (50 Pair)

Note: (Includes Ref. Nos. 310, 330 & 340)

$

$

Currently unavailable
