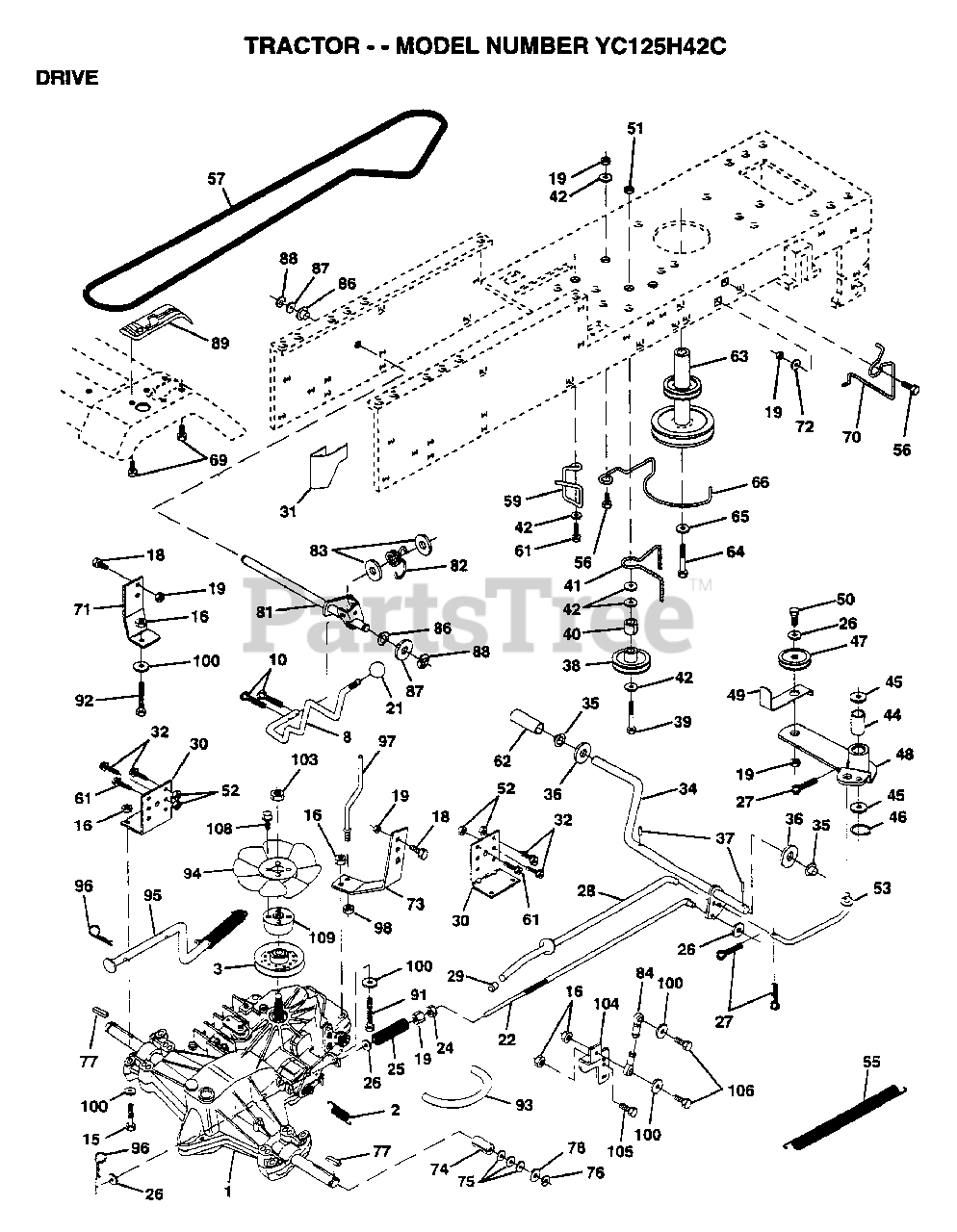

YC 125H42 C - Electrolux/AYP Lawn Tractor (1995) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title
1

Electrolux/AYP 140607

TRANSAXLE HYD 0319-0500

$

$

Not available

2

Electrolux/AYP 142431

SPRING RET BRAKE
(Superseded to 532142431)

$8.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 144698

PULLEY.4.20.HYDRO
(Superseded to 532144698)

$

$

Not available

8

Electrolux/AYP 141003

ROD SHIFT FEND LT
(Superseded to 532141003)

$

$

Not available

10

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74780544

BOLT HEX
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 106933X

KNOB T (1/2-HOLE)
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 145627

ROD.BRAKE.HYDRO.
(Superseded to 532145627)

$193.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 106888X

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 145204

ROD.BRAKE.PARK.LT
(Superseded to 532145204)

$

$

Not available

29

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 130807

TRANSAXLE MTG BKT
(Superseded to 532130807)

$3.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 127275X

"KEEPER,BELT LH T"
(Superseded to 532127275)

$

$

Not available

32

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 149001

SHAFT.PEDAL.FOOT
(Superseded to 532149001)

$34.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 120183X

NYLON BEARING
(Superseded to 532120183)

$6.99

$

In Stock, only 3 left!

0

36

Electrolux/AYP 19211616

WASHER LT
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

37

Murray 1572H

SUB= 2882J

$

$

Not available

38

Electrolux/AYP 123674X

PULLEY.IDLER.FLAT
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 4470J

SPACER T
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 109070X

BELT KEEPER LT
(Superseded to 532109070)

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

44

Electrolux/AYP 105706X

"LY, BEARING"
(Superseded to 532105706)

$7.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 110812X

WASHER LT
(Superseded to 532110812)

$

$

Not available

46

Electrolux/AYP 12000039

KLIP RING
(Superseded to 812000039)

$6.49

$

In Stock, Qty 7

0

47

Murray 127783

SUB= 139245

$

$

Not available

48

Electrolux/AYP 123789X

ARM IDLER
(Superseded to 532123789)

$

$

Not available

49

Electrolux/AYP 123205X

RETAIN BELT
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 74760624

SUB= 74930624
(Superseded to 874760624)

$7.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 105710X

"LINK, CLUTCH T"
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 105709X

"SPRING, RETURN LT"
(Superseded to 532105709)

$11.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 141416

BELT-V.HYDR.84.61
(Superseded to 532141416)

$62.99

$

In Stock, only 1 left!

0

59

Electrolux/AYP 140312

KEEPER BELT CNTSP
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

62

Electrolux/AYP 8883R

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 140186

PULLEY.ENGINE
(Superseded to 532140186)

$113.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 71170764

BOLT
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 129921

KEEPER.BELT.ENG.L
(Superseded to 532129921)

$

$

Not available

39

Electrolux/AYP 142432

SCREW HEXWSH H-L
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 134683

KEEPER BELT ENG
(Superseded to 532134683)

$

$

Not available

71

Electrolux/AYP 141417

STRAP.TORQ.LH.HYD
(Superseded to 532141417)

$

$

Not available

72

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 141418

STRAP.TORQ.RH.HYD
(Superseded to 532141418)

$

$

Not available

74

Electrolux/AYP 121199X

SPACER SPLIT
(Superseded to 532121199)

$

$

Not available

75

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 12000001

E-RING LT
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 123583X

SQUARE KEY
(Superseded to 532123583)

$4.99

$

In Stock, only 4 left!

0

78

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

81

Electrolux/AYP 141420

SHAFT.CROSS.HYD
(Superseded to 156048)

$12.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 123782X

"SPRING,TORSION"
(Superseded to 532123782)

$

$

Not available

83

Electrolux/AYP 19171216

WASHER
(Superseded to 819171216)

$

$

Not available

84

Electrolux/AYP 141423

ROD.TIE.BALL.HYD.
(Superseded to 532141423)

$66.99

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 71208

BUSHING
(Superseded to 532071208)

$3.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 19212016

WASHER D
(Superseded to 819212016)

$6.49

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 12000008

KLIP RING
(Superseded to 812000008)

$6.49

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 139988

SUB= 153764

$

$

Not available

91

Electrolux/AYP 74780536

NLA
(Superseded to 874780536)

$

$

Not available

92

Electrolux/AYP 74780524

HEX BOLT
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

93

Electrolux/AYP 142564

"LINE FUEL HYD 4"""
(Superseded to 532142564)

$6.49

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 140462

"FAN 7"" HYDRO"
(Superseded to 532140462)

$12.99

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 144643

SUB= 918144643
(Superseded to 532167696)

$

$

Not available

96

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

97

Electrolux/AYP 144201

KEEPER.BELT.RH.HY
(Superseded to 532144201)

$8.99

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 73510600

NUT
(Superseded to 873510600)

$6.49

$

Usually ships in 3-10 days

0

100

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

103

Electrolux/AYP 73940800

SUB= 73360800
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

104

Electrolux/AYP 141421

ARM.CONTROL.PUMP
(Superseded to 532141421)

$

$

Not available

105

Electrolux/AYP 71070516

SCREW CAP 5/16-18
(Superseded to 871070516)

$4.99

$

Usually ships in 3-10 days

0

106

Electrolux/AYP 74780520

BOLT
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

108

Electrolux/AYP 17541026

SCREW.HXHD.10-20
(Superseded to 817541026)

$

$

Not available

109

Electrolux/AYP 145098

ADAPTOR.FAN.HYDRO
(Superseded to 532145098)

$

$

Not available
