YB-950 (24A-315C190) - White Outdoor Yard Boss Chipper Shredder Vacuum (2002) General Assembly Parts Diagram

Yard Boss Chipper Shredder Vacuum

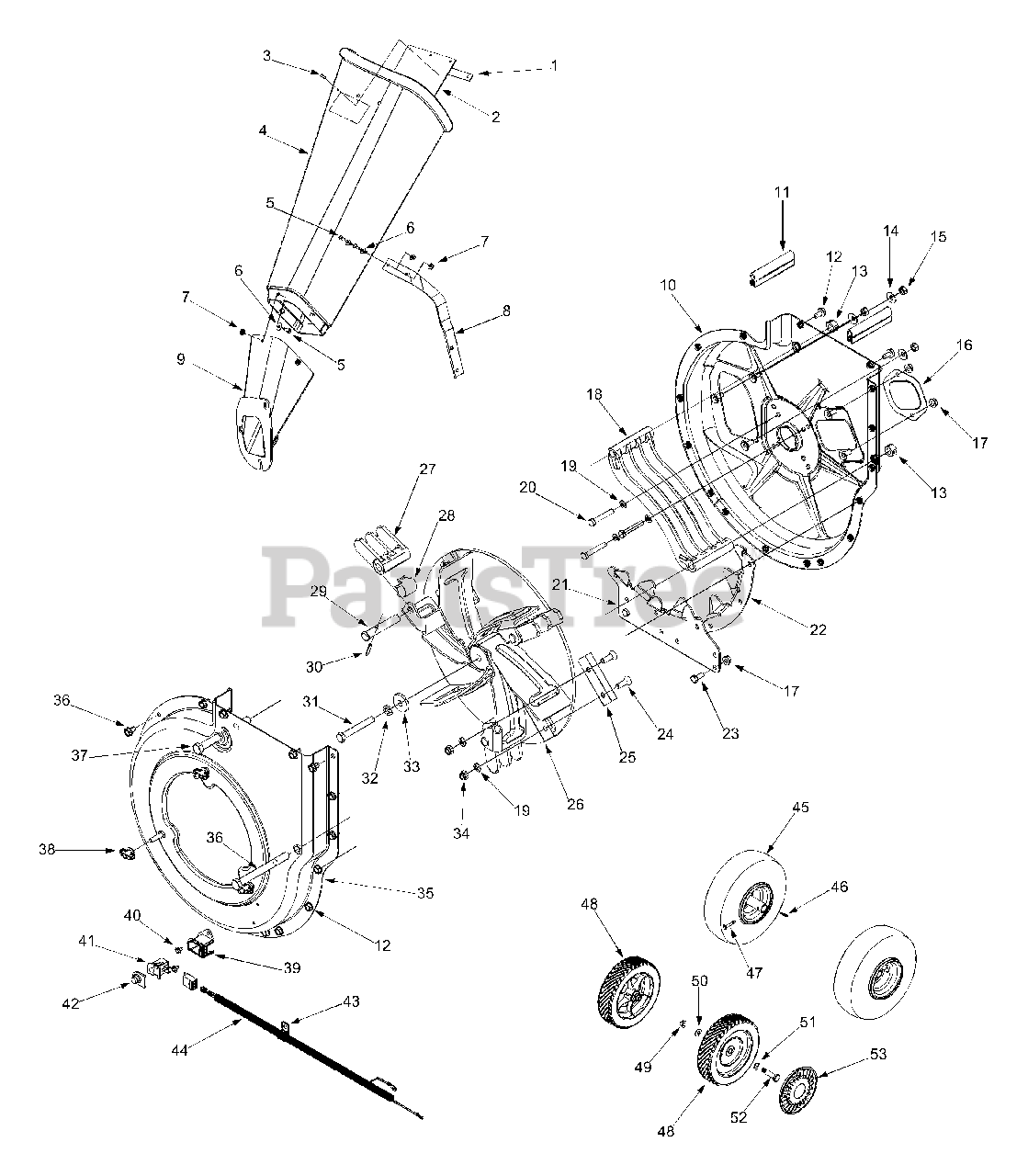

General Assembly Parts Diagram

  • Title

1

MTD 781-0633

Chute Flap Strip

$10.99

$

Usually ships in 3-6 days

0

2

MTD 735-0249A

Chute Flap

$24.99

$

Usually ships in 3-6 days

0

3

MTD 728-0175

Pop Rivet

$4.99

$

In Stock, Qty 10

0

4

MTD 731-1574A

Chipper Chute

$202.99

$

Usually ships in 3-6 days

0

5

MTD 710-0751

Hex Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

6

MTD 736-0173

Flat Washer .28 ID x .74 OD

$4.49

$

In Stock, only 3 left!

0

7

MTD 912-3027

Hex Lock Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

MTD 781-0625

Support Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0625-0483

No Longer Available BRKT-SUPPO - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0625-0498

BRACKET-SUPPORT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0625-0637

BRACKET-SUPPORT-CHIPP - POWDER BLACK (0637)

$

$

Not available

MTD 781-0625-0638

No Longer Available BRKT-SUPPO - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0625-0662

BRACKET-SUPPORT-CHIPP - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0625-0716

BRACKET-SUPPORT-CHIPP - CUB YELLOW-99 (0716)

$

$

Not available

$

$

9

MTD 681-0068A

Chipper Chute Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 681-0068A-0483

ASM-CHUTE - CHARCOAL GRAY (0483)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0638

ASM-CHUTE - MTD/TROY-BILT RED (0638)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0498

CHUTE ASM-CHIPPER - OLD CUB YELLOW (0498)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0650

ASM-CHUTE - RED METALLIC (0650)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0662

ASM-CHUTE - OYSTER GRAY (0662)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0674

ASM-CHUTE - YARDMAN YELLOW (0674)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0689

ASM-CHUTE - POLO GREEN (0689)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0691

ASM-CHUTE - BLACK JACK (0691)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0709

ASM-CHUTE - MASTERCRAFT GREEN (0709)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0716

CHUTE ASM-CHIPPER - CUB YELLOW-99 (0716)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-0721

CHUTE ASM-CHIPPER - SEARS RED (0721)

$177.99

$

Usually ships in 3-6 days

0

MTD 681-0068A-4044

CHUTE ASM-CHIPPER - CRAFTSMAN RED (4044)

$177.99

$

Usually ships in 3-6 days

0

$177.99

$

Usually ships in 3-6 days

0

10

MTD 681-0059

Inner Housing Assembly

Note: NLA

Variations

MTD 681-0059-0483

No Longer Available HSG-ASSY-I - CHARCOAL GRAY (0483)

$

$

Not available

MTD 681-0059-0498

No Longer Available HSG-ASSY-I - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0059-0638

No Longer Available HSG-ASSY-I - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0059-0650

No Longer Available HSG-ASSY-I - RED METALLIC (0650)

$

$

Not available

MTD 681-0059-0662

Housing Ass'y, Inner Flail - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0059-0665

No Longer Available HSG-ASSY-I - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0059-0716

No Longer Available HSG-ASSY-I - CUB YELLOW-99 (0716)

$

$

Not available

$

$

11

MTD 723-0438

Rubber Seal

$10.99

$

Usually ships in 3-6 days

0

12

MTD 710-0604A

Hex Washer Screw 5/16-18 x .60

$4.49

$

In Stock, Qty 20+

0

13

MTD 912-0384

Hex Lock Nut 1/2-13

$6.99

$

In Stock, only 3 left!

0

14

MTD 736-0242

Bell Washer .345 ID x .88 OD

$4.49

$

In Stock, Qty 20+

0

15

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

16

MTD 781-0627

Chipper Blade Cover

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0627-0483

COVER-CHIPPER-BLAD - CHARCOAL GRAY (0483)

$19.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0498

COVER-CHIPPER-BLAD - OLD CUB YELLOW (0498)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0637

COVER-CHIPPER-BLAD - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0638

COVER-CHIPPER-BLAD - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0648

COVER-CHIPPER-BLAD - TECH GRAY (0648)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0650

COVER-CHIPPER-BLAD - RED METALLIC (0650)

$19.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0662

COVER-CHIPPER-BLAD - OYSTER GRAY (0662)

$19.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0716

COVER-CHIPPER-BLAD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

17

MTD 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 719-0326

Flail Screen

$101.99

$

In Stock, only 2 left!

0

19

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

20

MTD 710-0772

Hex Cap Screw 5/16-24 x 2.0

$4.49

$

Usually ships in 3-6 days

0

21

MTD 781-0598-0637

Lower Shredder Blade

$79.99

$

Usually ships in 3-6 days

0

22

MTD 781-0599-0637

Upper Shredder Blade

$33.99

$

In Stock, only 1 left!

0

23

MTD 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-1054

Hex Cap Screw 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

25

MTD 942-0544B

Chipper Blade

$89.99

$

In Stock, Qty 7

0

26

MTD 981-04091

Impeller Assembly

$533.99

$

Usually ships in 3-6 days

0

27

MTD 719-0329

Flail Blade

$31.99

$

Usually ships in 3-6 days

0

28

MTD 781-0735

Pin Clip

$4.49

$

In Stock, Qty 20+

0

29

MTD 911-0833B

Clevis Pin

$12.99

$

In Stock, only 2 left!

0

30

MTD 715-0166

Pin

$6.99

$

In Stock, Qty 15

0

31

MTD 710-1273

Hex Cap Screw 3/8-24 x 2.75

$7.99

$

Usually ships in 3-6 days

0

32

MTD 936-0217

Lock Washer 3/8
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 9

0

33

MTD 736-0247

Flat Washer 3/8 x 1.25

$9.49

$

In Stock, Qty 15

0

34

MTD 912-0411

Hex Lock Nut 5/16-24
(Superseded to 712-0411)

$

$

Not available

35

MTD 681-0060

Outer Housing Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 681-0060-0483

HOUSING-ASSY-OUTER - CHARCOAL GRAY (0483)

$309.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0638

HOUSING-ASSY-OUTER - MTD/TROY-BILT RED (0638)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0650

HOUSING-ASSY-OUTER - RED METALLIC (0650)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0662

HOUSING-ASSY-OUTER - OYSTER GRAY (0662)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0665

HOUSING-ASSY-OUTER - YARDMAN GREEN (0665)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0689

HOUSING-ASSY-OUTER - POLO GREEN (0689)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0716

HOUSING-ASSY-OUTER - CUB YELLOW-99 (0716)

$288.99

$

Usually ships in 3-6 days

0

$288.99

$

Usually ships in 3-6 days

0

36

MTD 710-0607

Hex Washer Screw 5/16-18

$6.99

$

In Stock, Qty 11

0

37

MTD 710-0382

Hex Cap Screw 1/2-13 x 5.0

$12.99

$

In Stock, only 2 left!

0

38

MTD 712-0421

Knob 5/16-18 x .70

$6.99

$

In Stock, Qty 20+

0

39

MTD 931-1613

Safety Switch Mounting Cover

$10.99

$

In Stock, only 1 left!

0

40

MTD 710-1268

Hex Washer Screw #10-16 x .30

$4.49

$

In Stock, only 2 left!

0

41

MTD 925-3166

Snap Mount Switch

$16.99

$

In Stock, Qty 20+

0

42

MTD 925-1700

Switch Cover

$11.99

$

In Stock, only 1 left!

0

43

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

44

MTD 629-0241

Wire Harness

$

$

Not available

45

MTD 634-0100

Wheel Assembly 10 x 4.0

Note: NLA

$

$

Not available

46

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

47

MTD 711-1017

Clevis Pin

$7.49

$

In Stock, only 1 left!

0

48

MTD 734-2004B

Wheel Assembly 8 x 2.0
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

49

MTD 912-0431

Hex Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0

50

MTD 736-0105

Bell Washer .401 ID x .870 OD

$4.49

$

In Stock, Qty 20+

0

51

MTD 936-0232

Wave Washer .53 ID x .78 OD
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

52

MTD 738-0213

Shoulder Bolt

$7.99

$

In Stock, only 2 left!

0

53

MTD 731-0982C

Hubcap

$11.99

$

In Stock, Qty 18

0
