YB-950 (24A-315C190) - White Outdoor Yard Boss Chipper Shredder Vacuum (2001) Drive & Fuel Tank Parts Diagram

Yard Boss Chipper Shredder Vacuum

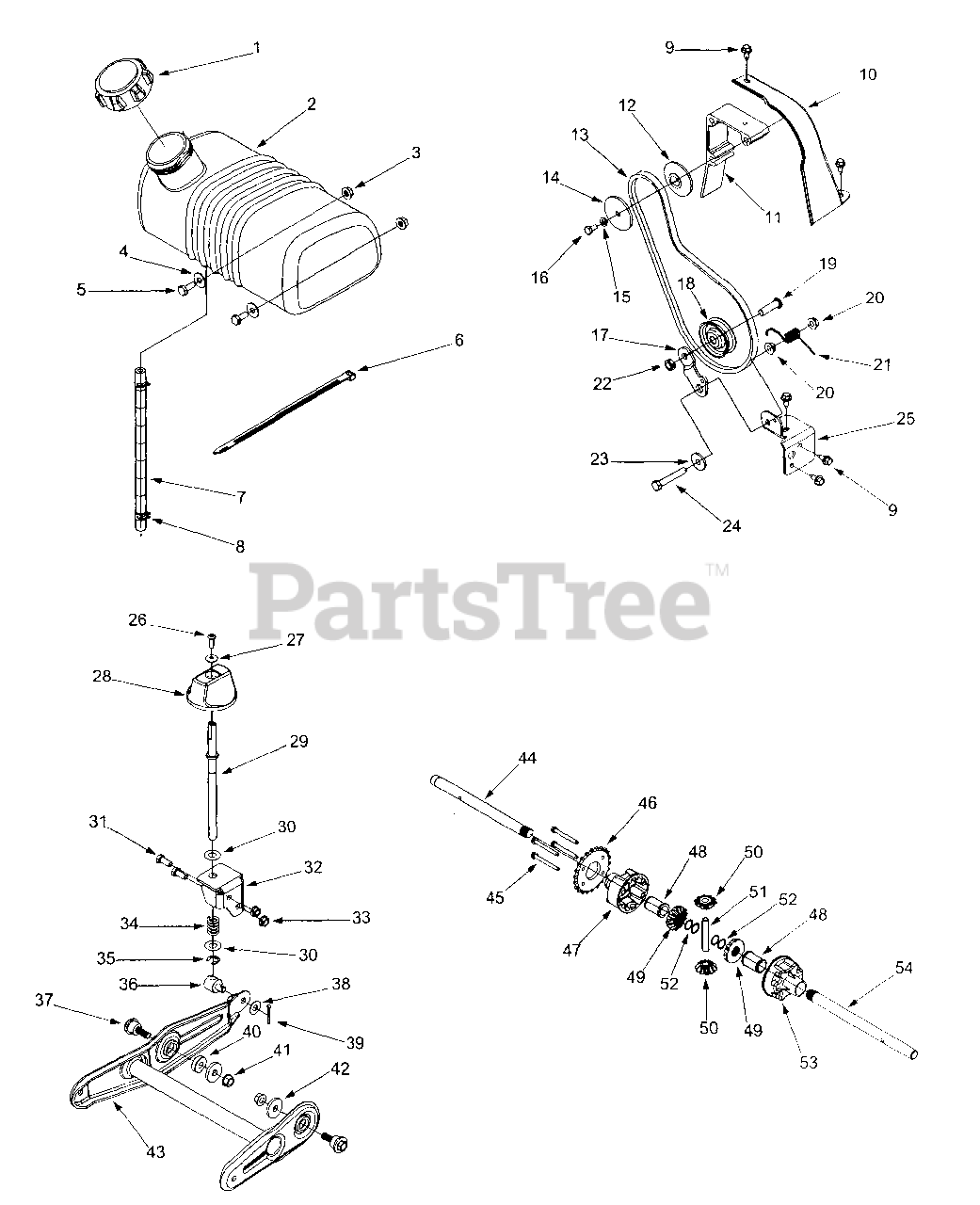

Drive & Fuel Tank Parts Diagram

  • Title

1

MTD 751-0603A

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

2

MTD 751-0610

Gas Tank - 1 Gallon

Note: NLA

$

$

Not available

3

MTD 912-3027

Hex Lock Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

4

MTD 736-0173

Flat Washer .28 ID x .74 OD

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0751

Hex Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

6

MTD 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

7

MTD 751-10349

Fuel Line

$9.49

$

Usually ships in 3-6 days

0

8

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0896

Hex Washer Screw 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

10

MTD 731-1584

Belt Cover

Variations

MTD 731-1584-0637

BELT COVER PLAS. - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 719-0330A

Engine Mounting Adapter

Note: NLA

$

$

Not available

12

MTD 956-0987

Pulley Half

$

$

Not available

13

MTD 954-0256

V-Belt

$47.99

$

In Stock, only 1 left!

0

14

MTD 756-0986

Pulley Half

$

$

Not available

15

MTD 936-0329

Lock Washer 1/4

$4.49

$

In Stock, Qty 9

0

16

MTD 710-0230

Hex Cap Screw 1/4-28 x .50

$

$

Not available

17

MTD 781-0614

Idler Bracket

$

$

Not available

18

MTD 756-0313

Flat Idler

$26.99

$

In Stock, only 4 left!

0

19

MTD 710-0723

Hex Cap Screw 3/8-16 x 1.25

$4.99

$

In Stock, only 3 left!

0

20

MTD 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

21

MTD 732-0745

Torsion Spring

Note: NLA

$

$

Not available

22

MTD 712-0266A

Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

23

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-04039

Hex Cap Screw 5/16-18 x 2.0

$4.99

$

In Stock, only 4 left!

0

25

MTD 781-0611

Idler Pivot Bracket

Note: NLA

Variations

MTD 781-0611-0483

No Longer Available BRACKET-ID - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0611-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0611-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 781-0611-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

MTD 781-0611-0648

No Longer Available BRKT-IDLER - TECH GRAY (0648)

$

$

Not available

MTD 781-0611-0650

No Longer Available BRKT-IDLER - RED METALLIC (0650)

$

$

Not available

MTD 781-0611-0662

Bracket, Idler Pivot - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0611-0716

No Longer Available BRACKET-ID - CUB YELLOW-99 (0716)

$

$

Not available

$

$

26

MTD 710-0924

Machine Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

27

MTD 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

28

MTD 920-0236

Knob

$18.99

$

Usually ships in 3-6 days

0

29

MTD 749-0361

Height Adjustment Rod

Note: NLA

$

$

Currently unavailable

30

MTD 936-0369

Flat Washer .508 ID x 1.0 OD
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

31

MTD 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

32

MTD 781-0605

Height Adjustment Bracket

Note: NLA

Variations

MTD 781-0605-0637

No Longer Available BRACKET-HG - POWDER BLACK (0637)

$

$

Not available

MTD 781-0605-0662

Bracket, Height Adj - OYSTER GRAY (0662)

$

$

Not available

$

$

33

MTD 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

34

MTD 932-0645

Compression Spring

$2.99

$

In Stock, only 4 left!

0

35

MTD 916-0104

E Ring

$3.99

$

In Stock, Qty 20+

0

36

MTD 711-1041

Adjustment Ferrule

Note: NLA

$

$

Not available

37

MTD 738-0955

Shoulder Screw 3/8-16

Note: NLA

$

$

Not available

38

MTD 936-0300

Flat Washer .406 ID x .875 OD
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

39

MTD 914-0115

Cotter Pin
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

40

MTD 911-0242

Spacer

$4.49

$

In Stock, Qty 9

0

41

MTD 912-0431

Flange Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0

42

MTD 736-0247

Flat Washer .375 ID x 1.25 OD

$9.49

$

In Stock, Qty 12

0

43

MTD 681-0096

Pivot Wheel Bracket Assembly

Note: NLA

Variations

MTD 681-0096-0483

No Longer Available BRKT ASM- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 681-0096-0498

No Longer Available BRKT ASM- - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0096-0629

No Longer Available BRKT ASM- - SILVER FLAKE (0629)

$

$

Not available

MTD 681-0096-0637

No Longer Available BRKT ASM- - POWDER BLACK (0637)

$

$

Not available

MTD 681-0096-0648

No Longer Available BRKT ASM- - TECH GRAY (0648)

$

$

Not available

MTD 681-0096-0662

Bracket Ass'y, Wheel Pivot - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0096-0667

No Longer Available BRKT ASM- - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 681-0096-0716

No Longer Available BRKT ASM- - CUB YELLOW-99 (0716)

$

$

Not available

$

$

44

MTD 711-1038

Axle Shaft .750 x 9.8

$

$

Not available

45

MTD 710-1206

Hex Washer Screw 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

46

MTD 713-0445

Sprocket 22T

$

$

Not available

47

MTD 719-0334

Differential Housing LH

Note: NLA

$

$

Not available

48

MTD 948-0383

Flange Bearing .75 ID x 1.0 OD x 1.5

$

$

Not available

49

MTD 717-1358

Differential Gear 14T

Note: NLA

$

$

Not available

50

MTD 717-1437

Differential Gear 10T

$

$

Not available

51

MTD 711-1035

Cross Shaft .427 x 2.7

$

$

Not available

52

MTD 716-0232

Retaining Ring

$

$

Not available

53

MTD 719-0333

Differential Housing RH

Note: NLA

$

$

Not available

54

MTD 711-1037

Axle Shaft .750 x 10.954

Note: NLA

$

$

Not available
