YB-950 (24A-315C190) - White Outdoor Yard Boss Chipper Shredder Vacuum (2000) Differential Assembly Parts Diagram

Yard Boss Chipper Shredder Vacuum

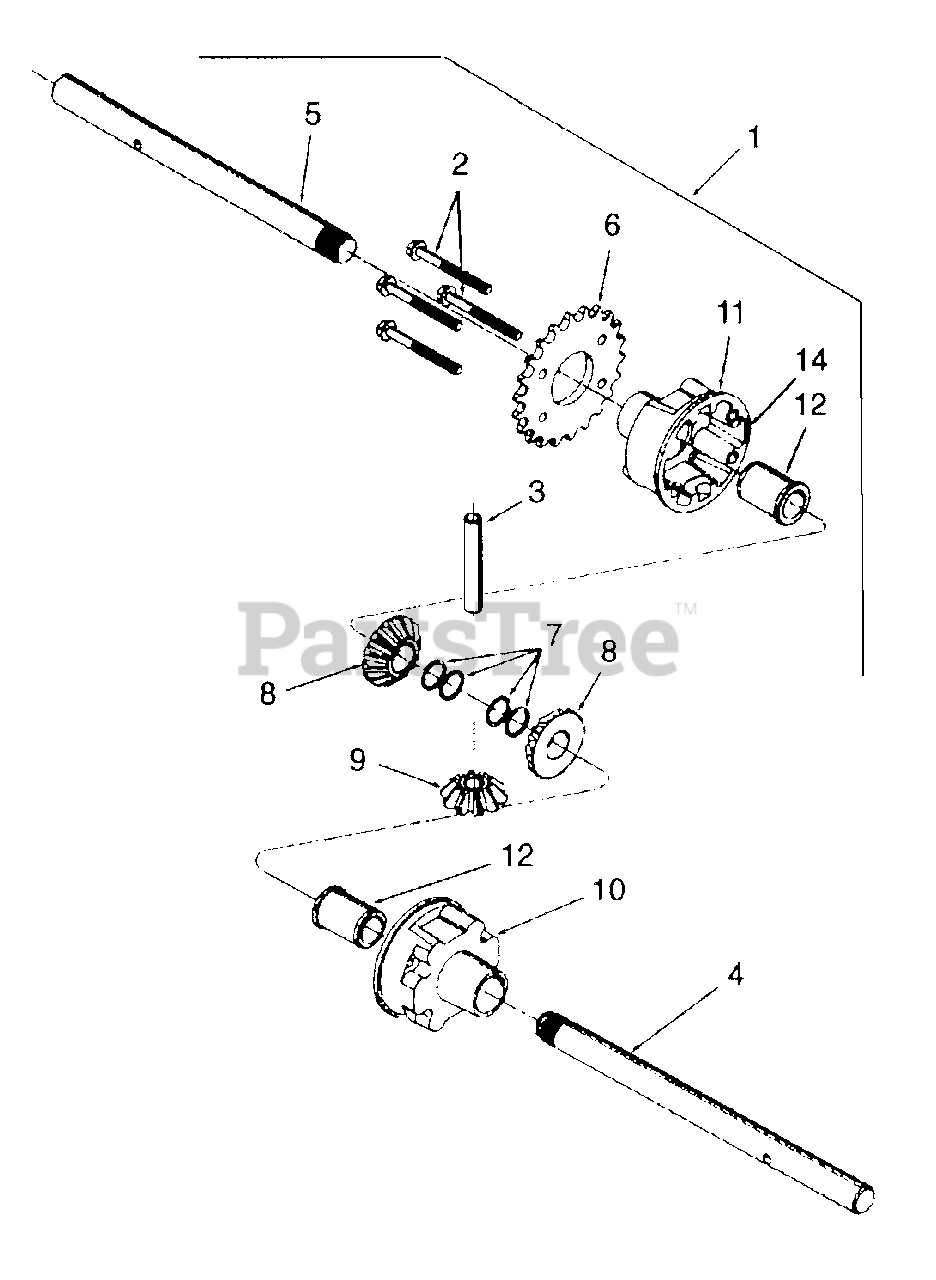

Differential Assembly Parts Diagram

  • Title

1

MTD 618-0168

Differential Ass'y Complete

Note: NLA

$

$

Not available

2

MTD 710-1206

Screw, Hex Wash Hd Tapp 1/4-20 x 2-5/16

$7.49

$

In Stock, Qty 6

0

3

MTD 711-1035

Cross Shaft

$

$

Not available

4

MTD 711-1037

Axle Shaft, .75 x 10.95

Note: NLA

$

$

Not available

5

MTD 711-1038

Axle Shaft, .75 x 9.82

$

$

Not available

6

MTD 713-0445

Spocket, 22T

$

$

Not available

7

MTD 716-0232

Ring, Retaining

$

$

Not available

8

MTD 717-1358

Gear, Differential, 14T

Note: NLA

$

$

Not available

9

MTD 717-1437

Gear, Differential, 10T

$

$

Not available

10

MTD 719-0333

Housing, Differential RH

Note: NLA

$

$

Not available

11

MTD 719-0334

Housing, Differential LH

Note: NLA

$

$

Not available

12

MTD 948-0383

Bearing, Flange, .75 ID x 1.0 OD

$

$

Not available
