YB-950 (24A-315C190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1999) Impeller Assembly Parts Diagram

Yard Boss Chipper Shredder Vacuum

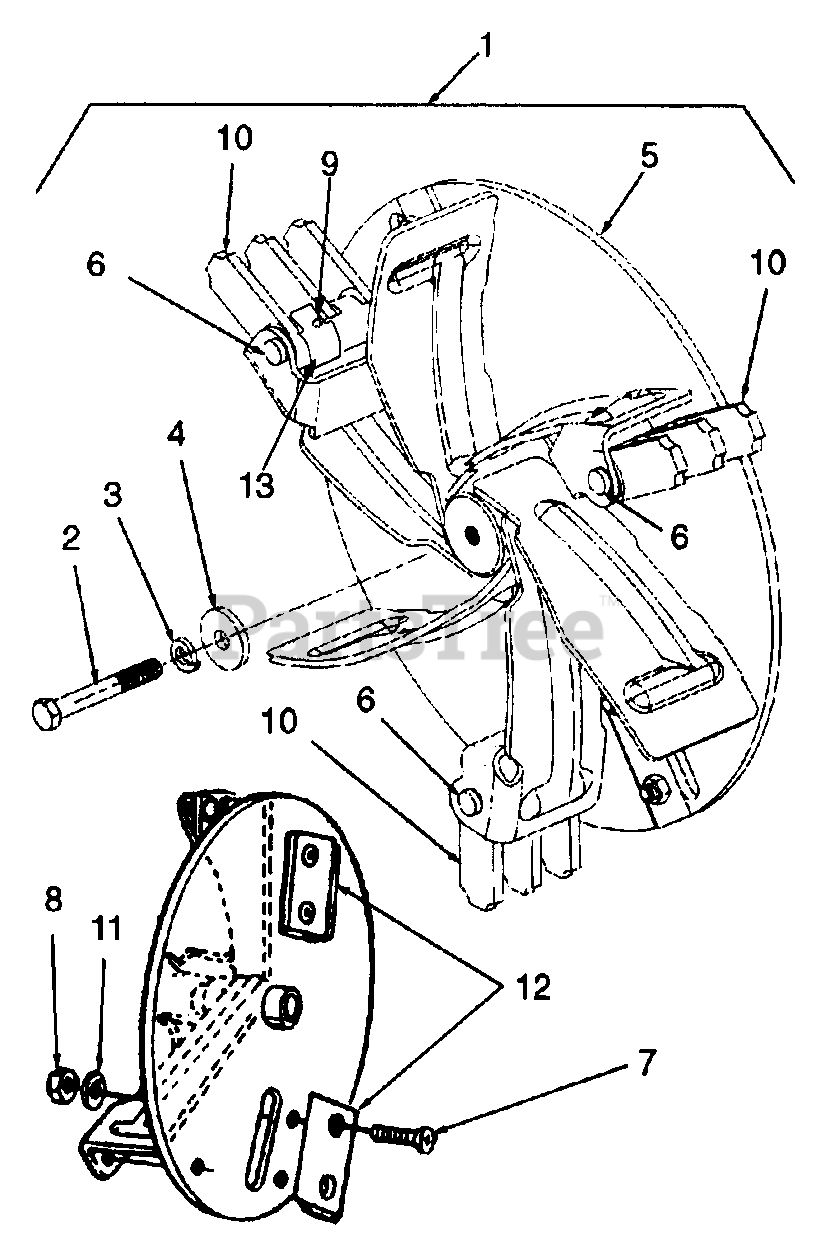

Impeller Assembly Parts Diagram

  • Title

1

MTD 981-04091

Impeller Ass'y,

Note: Complete. Includes Ref. Nos. 5 thru 13

$533.99

$

Usually ships in 3-6 days

0

2

MTD 710-1273

Screw, Hex Cap, 3/8-24 x 2.75 GR5

$7.99

$

Usually ships in 3-6 days

0

3

MTD 936-0217

Washer, Lock, 3/8 Heavy Duty 1
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

4

MTD 736-0247

Washer, Flat, .406 x 1-1/4 HD1

$9.49

$

In Stock, Qty 14

0

5

MTD 981-04091

Impeller Assembly

$533.99

$

Usually ships in 3-6 days

0

6

MTD 911-0833B

Pin, Clevis

$12.99

$

In Stock, Qty 5

0

7

MTD 710-1054

Screw, Flat Hd. Cap, 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

8

MTD 912-0411

Nut, Hex Insert Lock, 5/16-24
(Superseded to 712-0411)

$

$

Not available

9

MTD 715-0166

Pin, Spirol, 5/32 x 1.125

$6.99

$

In Stock, Qty 19

0

10

MTD 719-0329

Blade, Flail

$31.99

$

In Stock, Qty 5

0

11

MTD 936-0119

Washer, Lock, 5/16

$4.99

$

In Stock, Qty 20+

0

12

MTD 942-0544B

Blade, Chipper

$89.99

$

In Stock, Qty 7

0

13

MTD 781-0735

Pin Retaining Clip

$4.49

$

In Stock, Qty 20+

0
