YB-950 (24A-315C190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1999) Handle & Control Assembly Parts Diagram

Yard Boss Chipper Shredder Vacuum

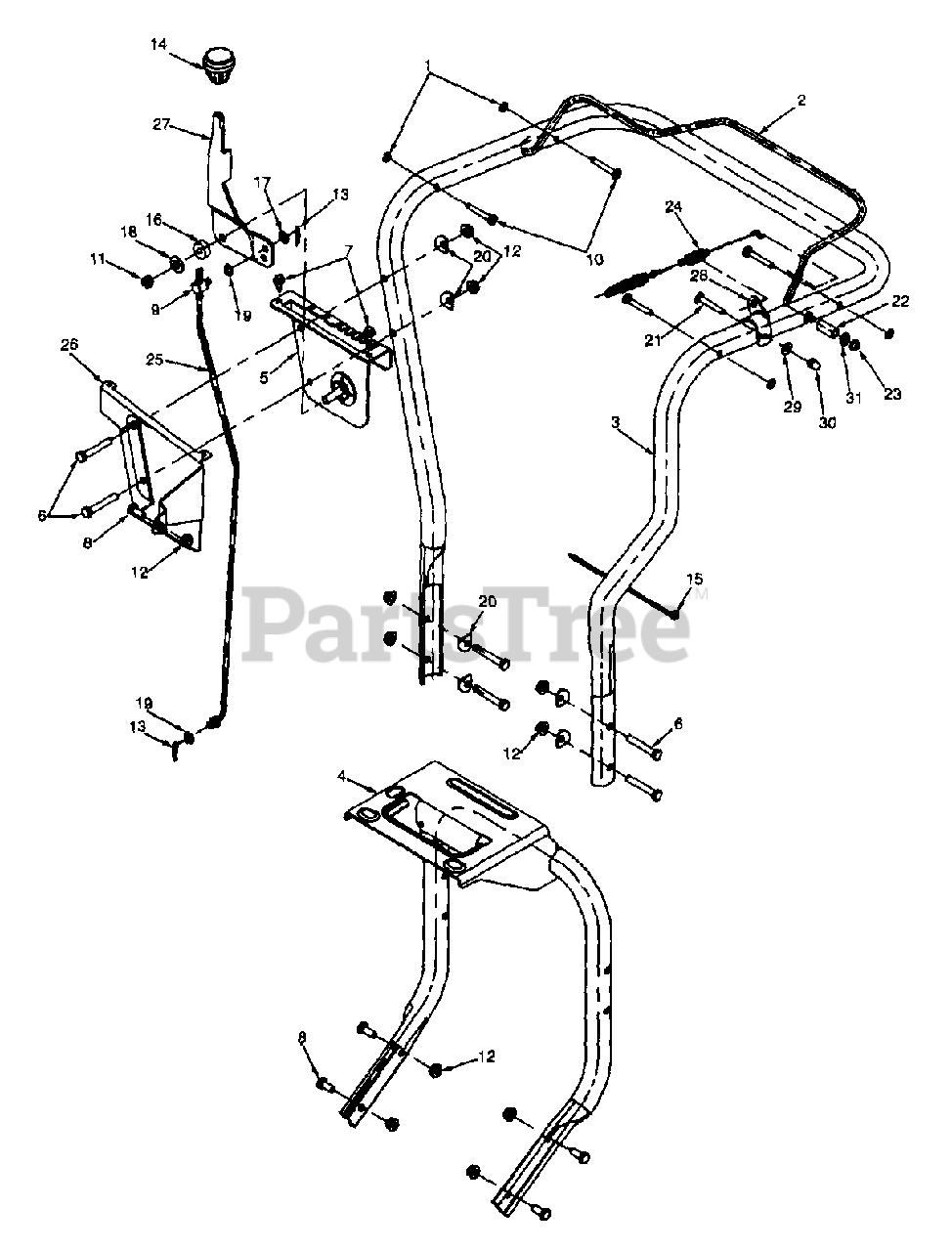

Handle & Control Assembly Parts Diagram

  • Title

1

MTD 1539-019

Nut, Push, .25

$4.49

$

In Stock, Qty 14

0

2

MTD 747-1133-0662

Control Assembly, Clutch

$

$

Not available

3

MTD 749-1083-0662

Handle Assembly, Upper

Note: NLA

$

$

Not available

4

MTD 649-0012-0662

Handle Assembly, Lower

Note: NLA

$

$

Not available

5

MTD 681-0076-0637

Bracket Assembly, Shift

$

$

Not available

6

MTD 710-3103

Screw, Hex Cap, 5/16-18 x 2.0

$4.49

$

In Stock, only 4 left!

0

7

MTD 710-0896

Screw, Hex Wash Hd, 4-14x

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-3008

Screw, Hex Cap 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

9

MTD 911-0677

Ferrule

$17.99

$

In Stock, only 4 left!

0

10

MTD 911-0737

Pin, Stud, .250 x 1.75

$4.99

$

In Stock, Qty 10

0

11

MTD 912-0116

Nut, Hex Insert Jam Lock 3/8
(Superseded to 712-0116)

$

$

Not available

12

MTD 712-3004A

Nut, Hex Flange Lock 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 914-0104

Pin, Internal Cotter
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

14

MTD 920-0232

Knob, Shift

$10.99

$

In Stock, only 1 left!

0

15

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

16

MTD 735-0126A

Rubber Washer

$

$

Not available

17

MTD 936-0117

Washer, Flat .385 x .62 x .6

$7.49

$

In Stock, only 1 left!

0

18

MTD 936-0300

Washer, Flat, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0413

Washer, Spring, .390 x .62

$6.99

$

In Stock, only 2 left!

0

20

MTD 936-0451

Washer, Saddle, .320 x .93
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

21

MTD 710-0495

Carr. Bolt 1/4-20 x 1.75" Lg.

Note: NLA

$

$

Not available

22

MTD 750-1185

Spacer

Note: NLA

$

$

Not available

23

MTD 726-0135

Nut, Cap Speed

$6.99

$

In Stock, only 1 left!

0

24

MTD 746-1080

Cable, Clutch

$

$

Not available

25

MTD 747-0626

Rod, Shift

Note: NLA

$

$

Not available

26

MTD 781-0626-0662

Cover, Shift

$

$

Not available

27

MTD 784-0297A

Handle, Shift

Note: NLA

Variations

MTD 784-0297A-0483

No Longer Available HANDLE-SHI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-0297A-0498

No Longer Available HANDLE-SHI - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0297A-0662

No Longer Available HANDLE-SHI - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0297A-0716

No Longer Available HANDLE-SHI - CUB YELLOW-99 (0716)

$

$

Not available

$

$

28

MTD 781-0157

Bracket, Cable Mtg.

Note: NLA

Variations

MTD 781-0157-0637

No Longer Available BRACKET CA - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 936-3020

Washer, Flat .271 x .63 x .65
(Superseded to 736-3020)

$

$

Not available

30

MTD 912-0442

Nut, Lock, Acorn 1/4-20
(Superseded to 712-0442)

$

$

Not available

31

MTD 936-0275

Washer, Flat 5/16
(Superseded to 736-0275)

$

$

Not available
