YB-950 (24A-315C190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1998) Wheel Pivot Bracket Assembly Parts Diagram

Yard Boss Chipper Shredder Vacuum

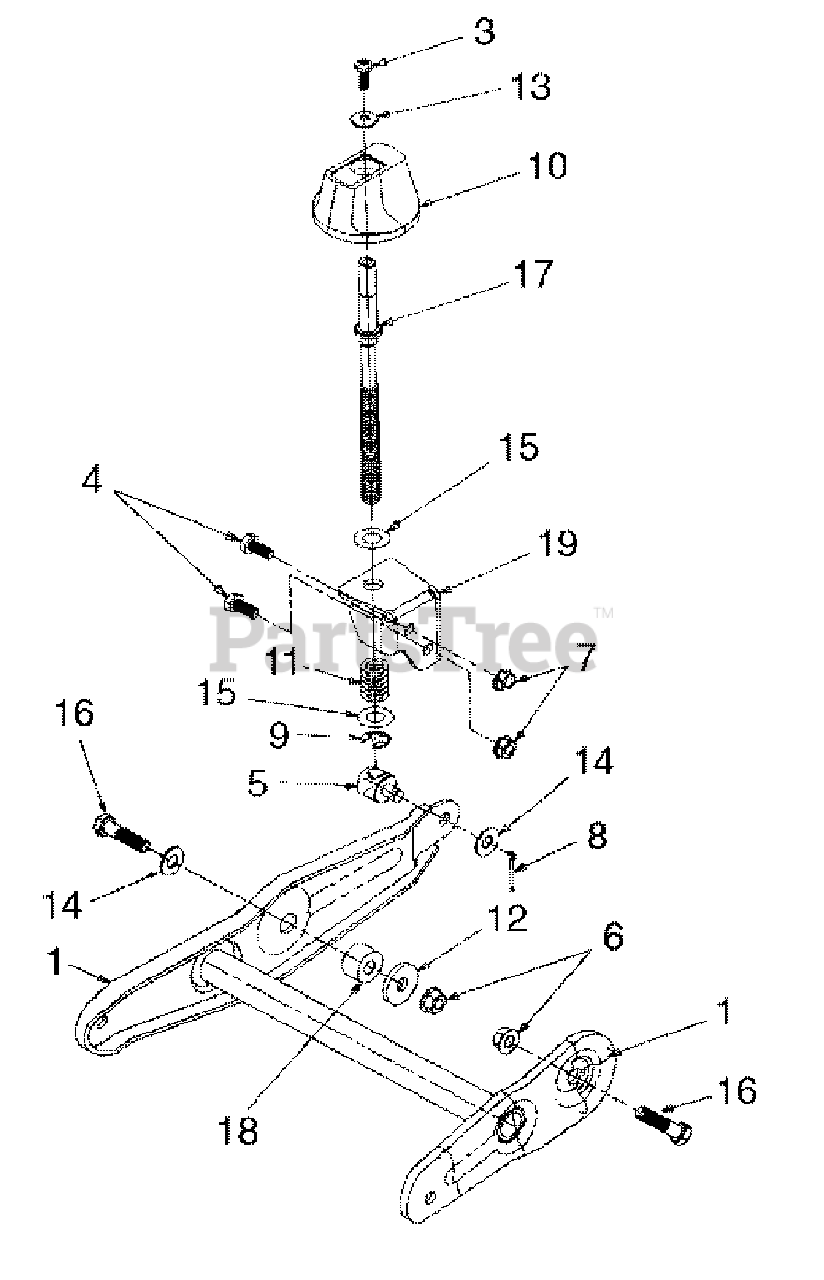

Wheel Pivot Bracket Assembly Parts Diagram

  • Title

1

MTD 681-0096-0662

Bracket Ass'y, Wheel Pivot

Note: NLA

$

$

Not available

3

MTD 710-0924

Screw, Pan Hd Mach, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

5

MTD 711-1041

Ferrule, Adjustment

Note: NLA

$

$

Not available

6

MTD 912-0431

Nut, Hex Flange Lock, 3/8-16

$4.99

$

In Stock, Qty 20+

0

7

MTD 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

MTD 914-0115

Pin, Cotter, 1/8 x 1.0
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

9

MTD 916-0104

E-Ring, .50 Dia

$3.99

$

In Stock, Qty 20+

0

10

MTD 920-0236

Knob

$18.99

$

Usually ships in 3-6 days

0

11

MTD 932-0645

Spring, Compression

$2.99

$

In Stock, only 4 left!

0

12

MTD 736-0247

Washer, Flat, .406 x 1-1/4

$9.49

$

In Stock, Qty 12

0

13

MTD 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

14

MTD 936-0300

Washer, Flat, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

15

MTD 936-0369

Washer, Flat, .508 x 1.0 x .020
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

16

MTD 738-0955

Shoulder Bolt, .75 x .43: 3/8-16

Note: NLA

$

$

Not available

17

MTD 747-0631

Rod, Height Adjustment

Note: NLA

$

$

Not available

18

MTD 911-0242

Spacer, .380 ID x 1.0 OD x .32 Lg

$4.49

$

In Stock, Qty 9

0

19

MTD 781-0605-0662

Bracket, Height Adj

$

$

Not available
