YB-950 (24A-315C190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1998) Friction Wheel & Differential Assemblies Parts Diagram

Yard Boss Chipper Shredder Vacuum

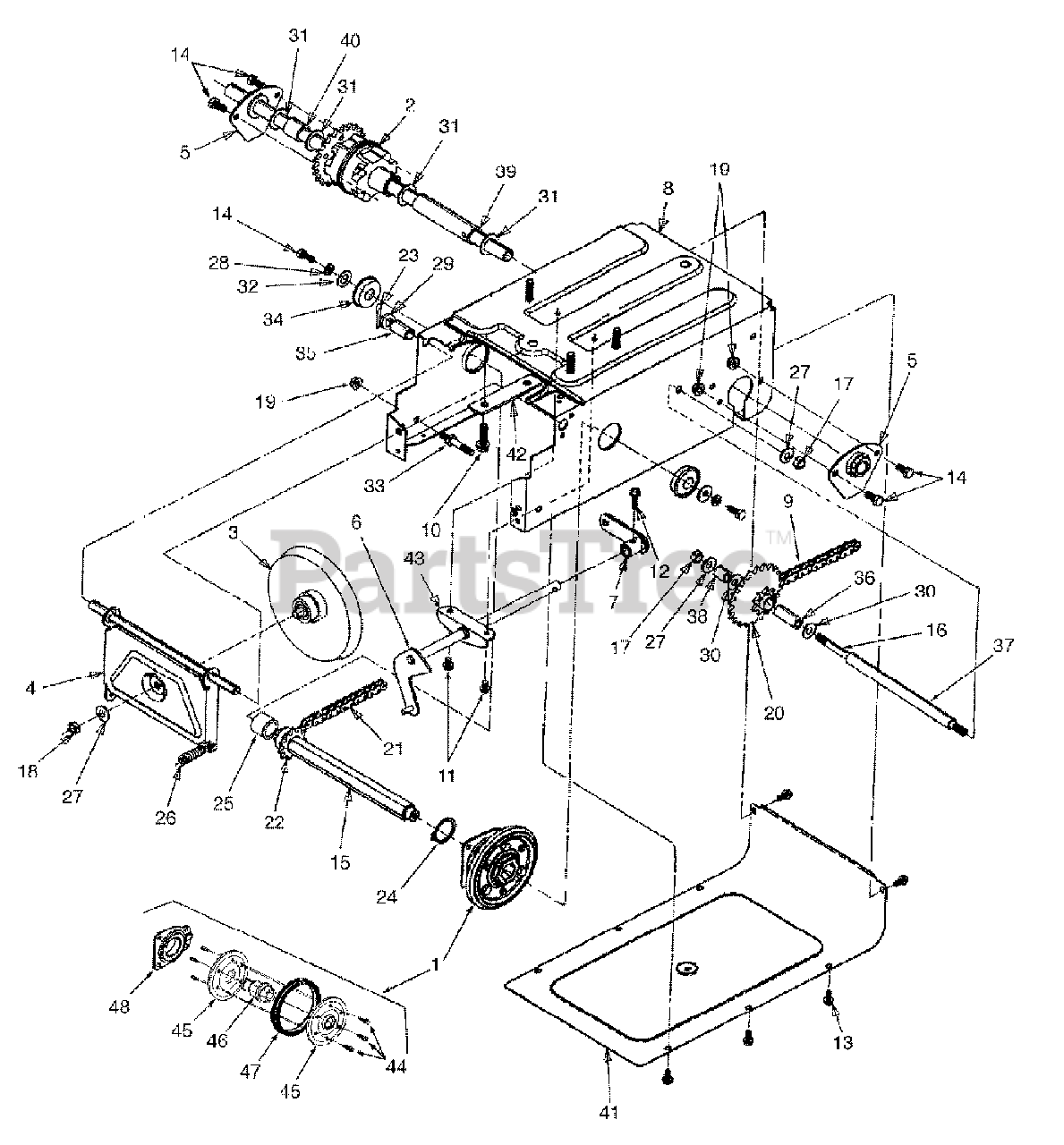

Friction Wheel & Differential Assemblies Parts Diagram

  • Title

1

MTD 984-0042C

Friction Wheel Ass'y Complete

$138.99

$

Usually ships in 3-6 days

0

2

MTD 618-0168

Differential Ass'y Complete

Note: NLA

$

$

Not available

3

MTD 956-0012A

Friction Disc Assembly

$125.99

$

In Stock, Qty 9

0

4

MTD 681-0055-0637

Bracket Ass'y, Frctn Wheel Supt

$

$

Not available

5

MTD 681-0058

Bracket Ass'y, Axle

$

$

Not available

6

MTD 681-0082

Shaft Ass'y, Shift

$

$

Not available

7

MTD 681-0072

Arm Ass'y, Shift

Note: NLA

Variations

MTD 681-0072-0637

No Longer Available ARM-SHIFT- - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 681-0081-0662

Frame Assembly

Note: NLA

$

$

Not available

9

MTD 713-0374

Chain, #420 x 36 Lnks

$25.99

$

Usually ships in 3-6 days

0

10

MTD 710-0502A

Screw, Hex Wash Hd Tapp 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

11

MTD 710-0653

Screw, Hex Wash Hd Tapp 1/4-20 x .375

$4.49

$

In Stock, Qty 13

0

12

MTD 710-0788

Screw, Hex Wash Hd Tapp 1/4-20 x 1.0

$7.49

$

In Stock, only 4 left!

0

13

MTD 710-0896

Screw, Hex Wash Hd Tapp 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

15

MTD 711-1073

Hex Shaft

Note: NLA

$

$

Not available

16

MTD 711-1028

Jack Shaft

Note: NLA

$

$

Not available

17

MTD 712-0241

Nut, Hex, 3/8-24

$4.49

$

In Stock, Qty 13

0

18

MTD 712-0711

Nut, Hex Jam, 3/8-24

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

20

MTD 713-0330

Sprocket Ass'y, 9T & 22T

Note: NLA

$

$

Not available

21

MTD 713-0284

Chain, #41 x 36 Lnks

$24.99

$

Usually ships in 3-6 days

0

22

MTD 713-0413

Sprocket, 10T

$12.99

$

Usually ships in 3-6 days

0

23

MTD 914-0111

Pin, Cotter, 3/32 x 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

24

MTD 916-0102

Ring, Snap, 1.0 Dia
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

25

MTD 750-0998

Spacer, .675 x 1.0 x 1.53

$

$

Not available

26

MTD 932-0209

Spring, Extension

$7.99

$

In Stock, only 2 left!

0

27

MTD 736-0105

Washer, Bell, .406 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

28

MTD 936-0119

Washer, Lock, 5/16

$4.99

$

In Stock, Qty 20+

0

29

MTD 936-0160

Washer, Flat, .536 x .930 x .05

$4.49

$

In Stock, Qty 9

0

30

MTD 936-0267

Washer, Flat, .385 x .87 x .06
(Superseded to 736-0267)

$4.49

$

In Stock, only 1 left!

0

31

MTD 936-0287

Washer, Flat, .793 x 1.24 x .06
(Superseded to 736-0287)

$

$

Not available

32

MTD 736-3089

Washer, Flat, .345 x 1.0 x .100

$

$

Not available

33

MTD 738-0908

Bolt, Idler

$

$

Not available

34

MTD 941-0563

Bearing, Ball

$36.99

$

In Stock, Qty 11

0

35

MTD 748-0382

Spacer, .508 x .75 x .94

Note: NLA

$

$

Not available

36

MTD 750-0351

Sleeve, .380 x .623 x 1.5

$

$

Not available

37

MTD 750-0978

Spacer, .407 x .625 x 7.86

Note: NLA

$

$

Not available

38

MTD 750-0979

Spacer, .407 x .625 x .71

Note: NLA

$

$

Not available

39

MTD 750-0980

Spacer, .782 x 1.0 x 4.11

Note: NLA

$

$

Not available

40

MTD 750-0981

Spacer, .782 x 1.0 x .99

$

$

Not available

41

MTD 781-0612A-0662

Cover, Frame Bottom

Note: NLA

$

$

Not available

42

MTD 781-0638A

Plate, Frame Reinforcement

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0638A-0483

No Longer Available PLATE-REIN - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0638A-0637

PLATE-REINFORCEMEN - POWDER BLACK (0637)

$

$

Not available

$

$

43

MTD 784-5590-0637

Bracket, Frame Shift

$15.99

$

Usually ships in 3-6 days

0

44

MTD 710-0599

Screw, Hex Wash Hd Tapp 1/4-20 X .5

$4.49

$

In Stock, Qty 20+

0

45

MTD 784-5617

Plate, Friction Wheel

Note: NLA

$

$

Currently unavailable

46

MTD 984-0042C

Hub, Friction Wheel

$138.99

$

Usually ships in 3-6 days

0

47

MTD 935-0243B

Wheel, Rubber Friction

$15.99

$

In Stock, Qty 20+

0

48

MTD 618-0063

Bearing Ass'y, Friction Wheel

$92.99

$

Usually ships in 3-6 days

0
