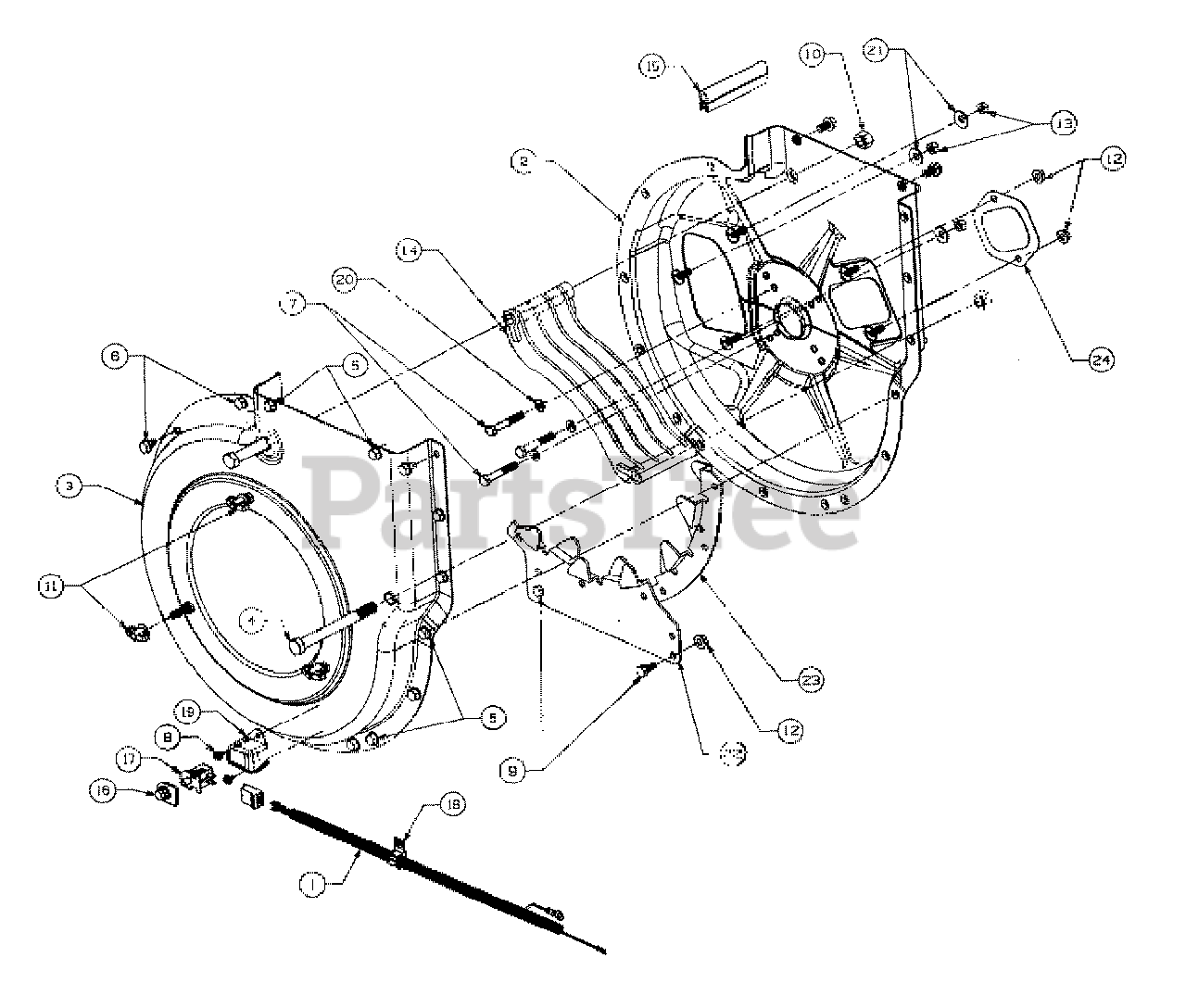

YB-950 (247-315C190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1997) Housing Parts Diagram

Yard Boss Chipper Shredder Vacuum

Housing Parts Diagram

  • Title

1

MTD 629-0241

HARNESS-CHIPPER VAC

$

$

Not available

2

MTD 681-0059

HOUSING ASSY-INNER

Note: NLA

Variations

MTD 681-0059-0483

No Longer Available HSG-ASSY-I - CHARCOAL GRAY (0483)

$

$

Not available

MTD 681-0059-0498

No Longer Available HSG-ASSY-I - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0059-0638

No Longer Available HSG-ASSY-I - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0059-0650

No Longer Available HSG-ASSY-I - RED METALLIC (0650)

$

$

Not available

MTD 681-0059-0662

Housing Ass'y, Inner Flail - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0059-0665

No Longer Available HSG-ASSY-I - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0059-0716

No Longer Available HSG-ASSY-I - CUB YELLOW-99 (0716)

$

$

Not available

$

$

3

MTD 681-0060

HOUSING ASSY-OUTER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 681-0060-0483

HOUSING-ASSY-OUTER - CHARCOAL GRAY (0483)

$309.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0638

HOUSING-ASSY-OUTER - MTD/TROY-BILT RED (0638)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0650

HOUSING-ASSY-OUTER - RED METALLIC (0650)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0662

HOUSING-ASSY-OUTER - OYSTER GRAY (0662)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0665

HOUSING-ASSY-OUTER - YARDMAN GREEN (0665)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0689

HOUSING-ASSY-OUTER - POLO GREEN (0689)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0716

HOUSING-ASSY-OUTER - CUB YELLOW-99 (0716)

$288.99

$

Usually ships in 3-6 days

0

$288.99

$

Usually ships in 3-6 days

0

4

MTD 710-0382

SCREW-HEX

$12.99

$

In Stock, only 2 left!

0

5

MTD 710-0604A

SCREW-HEX SELF TAP

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0607

SCREW-HEX SELF TAP

$6.99

$

In Stock, Qty 11

0

7

MTD 710-0772

SCREW-HEX

$4.49

$

Usually ships in 3-6 days

0

8

MTD 710-1268

SCREW-HEX SELF TAP

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-3008

SCREW-HEX

$4.49

$

In Stock, Qty 20+

0

10

MTD 912-0384

NUT-HEX LOCK

$6.99

$

In Stock, only 3 left!

0

11

MTD 712-0421

KNOB

$6.99

$

In Stock, Qty 20+

0

12

MTD 712-3004A

NUT-HEX LOCK

$3.99

$

In Stock, Qty 20+

0

13

MTD 912-3010

NUT-HEX (GR 5)
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

14

MTD 719-0326

SCREEN

$101.99

$

In Stock, only 2 left!

0

15

MTD 723-0438

SEAL-RUBBER

$10.99

$

Usually ships in 3-6 days

0

16

MTD 925-1700

COVER-SWITCH

$11.99

$

In Stock, only 1 left!

0

17

MTD 925-3166

SWITCH

$16.99

$

In Stock, Qty 20+

0

18

MTD 726-0272

CLAMP

$7.49

$

Usually ships in 3-6 days

0

19

MTD 931-1613

COVER SWITCH

$10.99

$

In Stock, only 1 left!

0

20

MTD 936-0119

WASHER-LOCK

$4.99

$

In Stock, Qty 20+

0

21

MTD 736-0242

WASHER-BELL

$4.49

$

In Stock, Qty 20+

0

22

MTD 781-0598-0637

BLADE-FLAIL HOUSING

$79.99

$

Usually ships in 3-6 days

0

23

MTD 781-0599-0637

BLADE-FLAIL HOUSING

$33.99

$

In Stock, only 1 left!

0

24

MTD 781-0627

COVER-CHIPPER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0627-0483

COVER-CHIPPER-BLAD - CHARCOAL GRAY (0483)

$19.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0498

COVER-CHIPPER-BLAD - OLD CUB YELLOW (0498)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0637

COVER-CHIPPER-BLAD - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0638

COVER-CHIPPER-BLAD - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0648

COVER-CHIPPER-BLAD - TECH GRAY (0648)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0650

COVER-CHIPPER-BLAD - RED METALLIC (0650)

$19.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0662

COVER-CHIPPER-BLAD - OYSTER GRAY (0662)

$19.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0716

COVER-CHIPPER-BLAD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0
