YB-550 (24A-203B190) - White Outdoor Yard Boss Chipper Shredder Vacuum (2002) Transmission Assembly Parts Diagram

Yard Boss Chipper Shredder Vacuum

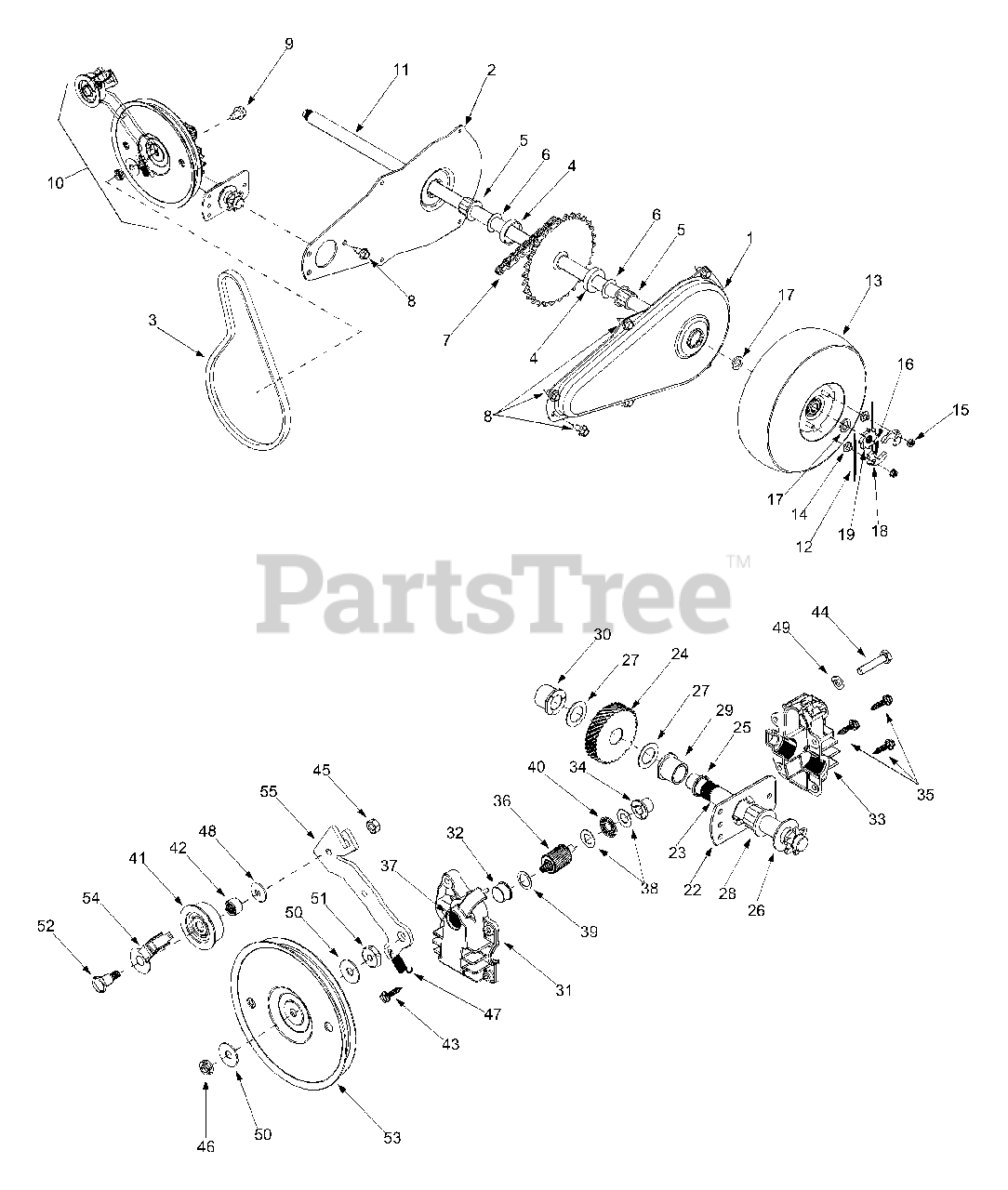

Transmission Assembly Parts Diagram

  • Title

1

MTD 781-0677

Chain Case LH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0677-0637

CASE CHAIN LH - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

MTD 781-0677-0665

CASE CHAIN LH - YARDMAN GREEN (0665)

$47.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

2

MTD 781-0676

Chain Case RH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0676-0637

CASE CHAIN RH - POWDER BLACK (0637)

$77.99

$

Usually ships in 3-6 days

0

MTD 781-0676-0665

CASE CHAIN RH - YARDMAN GREEN (0665)

$77.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

3

MTD 954-0457

V-Belt

$23.99

$

In Stock, only 3 left!

0

4

MTD 748-0313

Spacer

$3.99

$

Usually ships in 3-6 days

0

5

MTD 941-0413

Hex Flange Bearing

$10.99

$

Usually ships in 3-6 days

0

6

MTD 936-0336

Flat Washer

$4.49

$

In Stock, Qty 7

0

7

MTD 913-0422

Chain

$30.99

$

Usually ships in 3-6 days

0

8

MTD 710-0896

Hex Washer Screw 1/4-14

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0603

Hex Washer Screw 5/16

$4.99

$

Usually ships in 3-6 days

0

10

MTD 618-0256

Transmission Assembly

$464.99

$

Usually ships in 3-6 days

0

11

MTD 611-0063

Axle Assembly

$

$

Not available

12

MTD 10622BP

Plastic Spring Ratchet
(Superseded to 10622B)

$5.49

$

In Stock, Qty 20+

0

13

MTD 634-0244

Wheel Complete 10 x 4 x 4

$138.99

$

Usually ships in 3-6 days

0

14

MTD 912-0456

Hex Nut 1/4-20
(Superseded to 712-0456)

$

$

Not available

15

MTD 912-3027

Hex Flanged Lock Nut 1/4-20

$4.49

$

In Stock, Qty 17

0

16

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0366

Flat Washer 5/8 ID x 1.0 OD

$4.49

$

In Stock, Qty 20+

0

18

MTD 948-0188B

Pawl LH .345 ID

$

$

Not available

18

MTD 748-0381

Pawl RH .345 ID

$11.99

$

Usually ships in 3-6 days

0

19

MTD 748-0405

Wheel Ratchet 1.62 OD x .5 serr

$11.99

$

In Stock, Qty 9

0

21

MTD 918-0255

Transmission Assembly Complete

$782.99

$

Usually ships in 3-6 days

0

22

MTD 16500A-0637

Hex Bearing Cup

$8.99

$

Usually ships in 3-6 days

0

23

MTD 911-1118

Output Shaft 6T Sprocket

$32.99

$

Usually ships in 3-6 days

0

24

MTD 717-1432

Helical 34T Gear

$58.99

$

Usually ships in 3-6 days

0

25

MTD 721-0213

Oil Seal

$10.99

$

In Stock, Qty 15

0

26

MTD 736-0187

Flat Washer .64 ID x 1.24 OD

$4.49

$

In Stock, Qty 20+

0

27

MTD 936-0336

Flat Washer 5/8 x 1.0

$4.49

$

In Stock, Qty 7

0

28

MTD 941-0413

Hex Flange Bearing .631 ID

$10.99

$

Usually ships in 3-6 days

0

29

MTD 741-0414

Flange Bearing .629 ID

$10.99

$

Usually ships in 3-6 days

0

30

MTD 941-0415

Flange Bearing .566 ID

$10.99

$

Usually ships in 3-6 days

0

31

MTD 719-0325

Lower Housing

$92.99

$

Usually ships in 3-6 days

0

32

MTD 748-0373

Flange Bearing .503 ID

$4.49

$

Usually ships in 3-6 days

0

33

MTD 719-0324A

Upper Housing

$92.99

$

Usually ships in 3-6 days

0

34

MTD 748-0208A

Flange Bearing .378 ID

$4.49

$

Usually ships in 3-6 days

0

35

MTD 710-0589

Hex Washer Screw #10-16 x .75

$6.99

$

Usually ships in 3-6 days

0

36

MTD 717-1433

Pinion Shaft 10T

$40.99

$

Usually ships in 3-6 days

0

37

MTD 921-0329

Oil Seal

$10.99

$

Usually ships in 3-6 days

0

38

MTD 936-0314

Thrust Washer .382 ID x .684 OD
(Superseded to 736-0314)

$

$

Not available

39

MTD 936-0520

Flat Washer .504 ID x .70 OD

$5.99

$

Usually ships in 3-6 days

0

40

MTD 741-0479

Thrust Bearing .375 ID x .812 OD

$11.99

$

Usually ships in 3-6 days

0

41

MTD 956-0008

Pulley Ass'y Idler w/ Bearing

$20.99

$

In Stock, only 2 left!

0

42

MTD 941-0556

Needle Bearing .375 ID x .375 OD
(Superseded to 741-0556)

$

$

Not available

43

MTD 710-0589

Hex Screw #10-16 x .75

$6.99

$

Usually ships in 3-6 days

0

44

MTD 710-1062

Hex Cap Screw 1/4-20 x 1.25

$6.49

$

Usually ships in 3-6 days

0

45

MTD 912-0138

Hex Nut 1/4-28
(Superseded to 712-0138)

$

$

Not available

46

MTD 912-3045

Hex Jam Nut 5/16-24 LH Thd

$4.99

$

Usually ships in 3-6 days

0

47

MTD 932-0357A

Extension Spring 1.12 Lg
(Superseded to 732-0357A)

$4.49

$

In Stock, Qty 13

0

48

MTD 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

49

MTD 936-0329

Lock Washer 1/4

$4.49

$

In Stock, Qty 11

0

50

MTD 936-0425

Bell Washer .325 ID x .930 OD
(Superseded to 736-0425)

$

$

Not available

51

MTD 738-0440

Shoulder Spacer .375 ID x .165 OD

$5.99

$

In Stock, only 4 left!

0

52

MTD 938-0826

Shoulder Bolt 1/4-28 x .375

$12.99

$

In Stock, Qty 5

0

53

MTD 756-0656

Flat Pulley 5.06 Dia

$36.99

$

Usually ships in 3-6 days

0

54

MTD 782-7569

Belt Keeper

$7.49

$

Usually ships in 3-6 days

0

55

MTD 682-0054

Idler Bracket

$25.99

$

Usually ships in 3-6 days

0
