YB-550 (24A-203B190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1998) Chain Case Parts Diagram

Yard Boss Chipper Shredder Vacuum

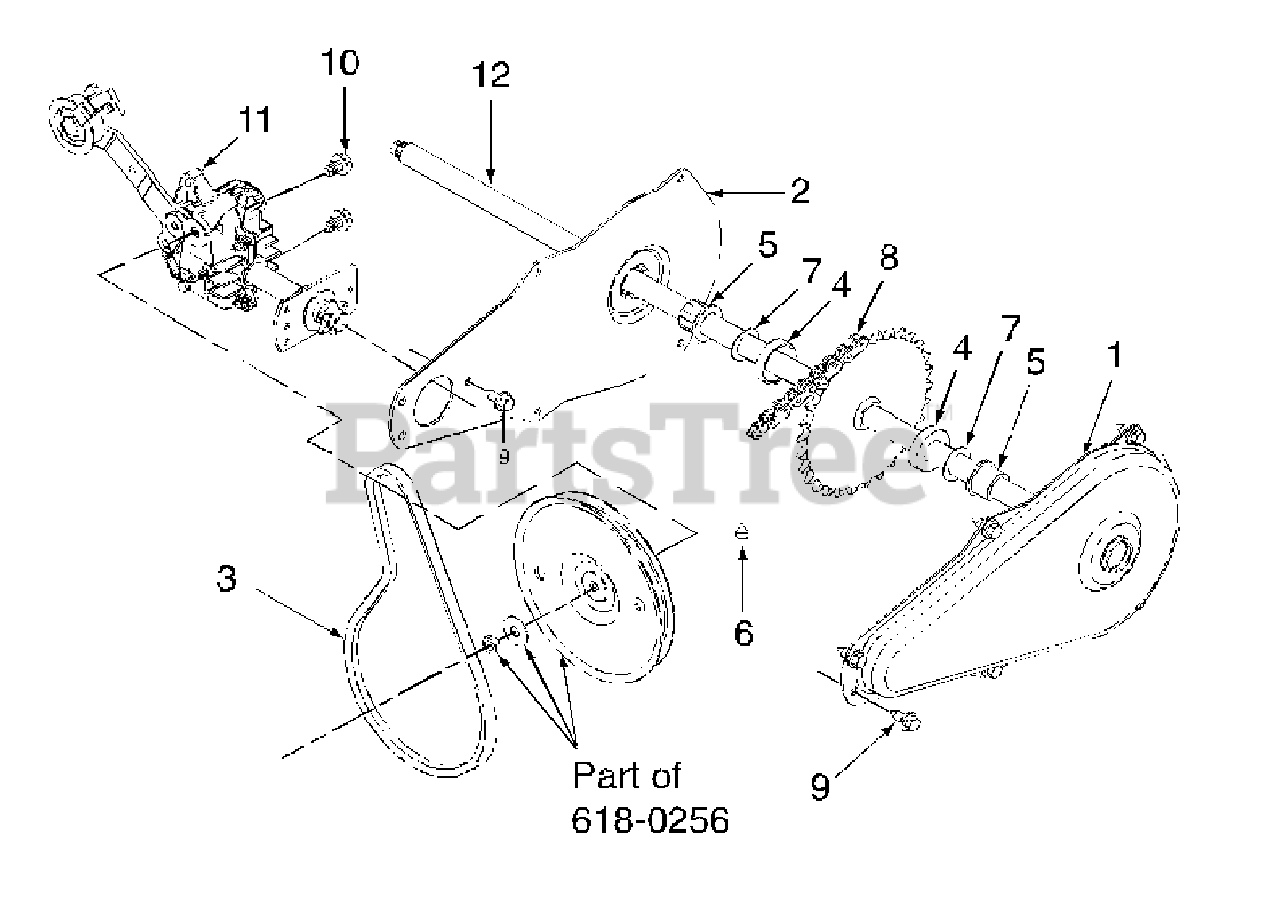

Chain Case Parts Diagram

  • Title
1

MTD 781-0677-0498

Chain Case LH

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Currently unavailable

2

MTD 781-0676-0498

Chain Case RH

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Currently unavailable

3

MTD 954-0457

V-Belt, 3/8 x 24.68

$23.99

$

In Stock, only 3 left!

0

4

MTD 748-0313

Spacer, .630 x 1.25 x .29

$3.99

$

Usually ships in 3-6 days

0

5

MTD 941-0413

Bearing, Hex Flange, .631 ID

$10.99

$

Usually ships in 3-6 days

0

6

MTD 737-0300A

Grease, Benalene

$34.99

$

In Stock, Qty 20+

0

7

MTD 936-0336

Washer, Flat, 5/8 x 1.0

$4.49

$

In Stock, Qty 7

0

8

MTD 913-0422

Chain, Endless, #41 x 50 Lnks

$30.99

$

Usually ships in 3-6 days

0

9

MTD 710-0896

Screw, Hex Wash Hd, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0603

Screw, Hex Wash Hd Tapp 5/16-18 x .50

$4.99

$

Usually ships in 3-6 days

0

11

MTD 618-0256

Complete Transmission Ass'y

Note: (See Breakdown Above)

$464.99

$

Usually ships in 3-6 days

0

12

MTD 611-0063

Shaft Assembly, Axle

$

$

Not available
