YB-550 (247-203B190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1997) Wheel Ass'y Parts Diagram

Yard Boss Chipper Shredder Vacuum

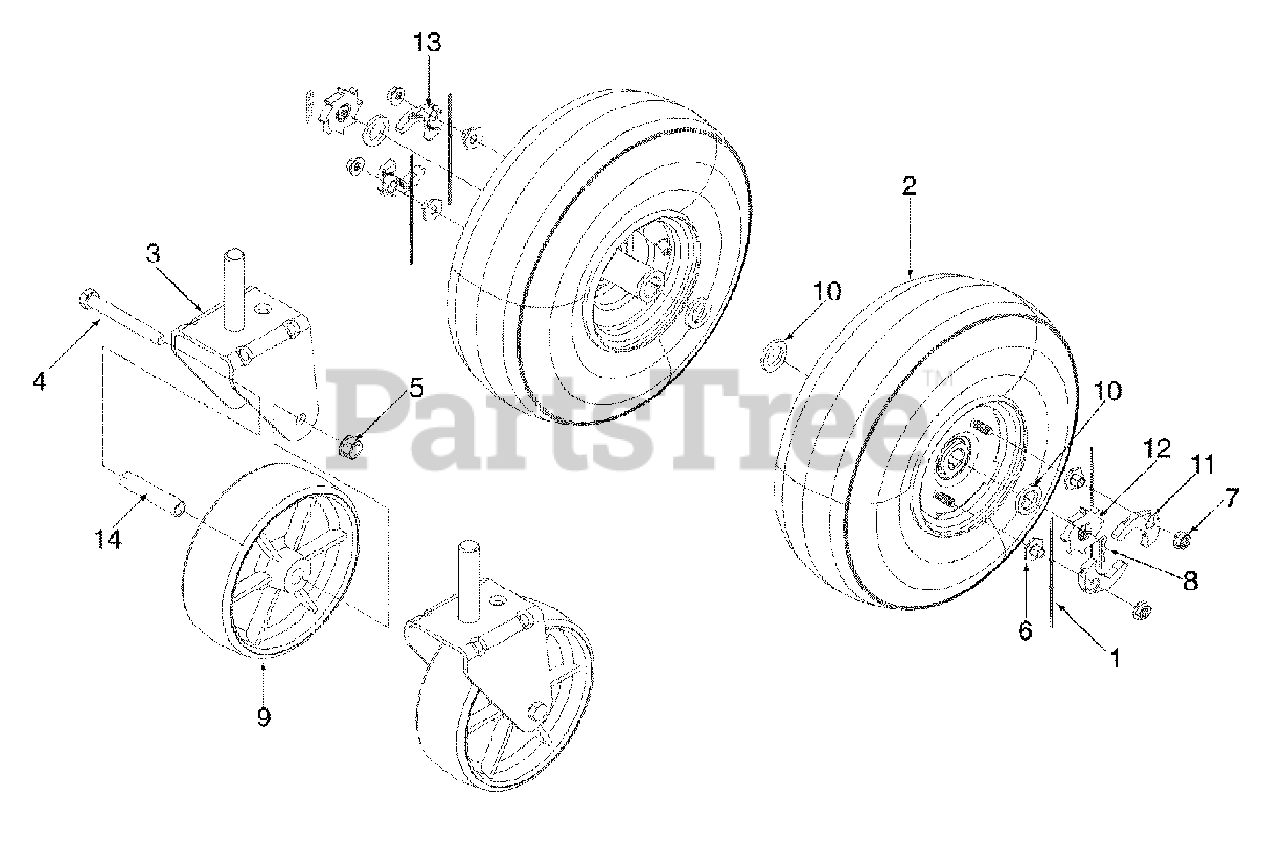

Wheel Ass'y Parts Diagram

  • Title

1

White Outdoor 10622B

PLASTIC RACHET SPRING

$5.49

$

In Stock, Qty 20+

0

2

White Outdoor 634-0136

WHEEL ASSEM. COMPLETE
(Superseded to 634-0244)

Variations

White Outdoor 634-0136-0911

Wheel Assembly, CSV - Carlisle Gray (0911)

$138.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0136-0931

Wheel Assembly, CSV - Carlisle Beige (0931)

$138.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0136-0941

WHEEL ASM-COMP CSV - Carlisle Yellow (0941)

$

$

Not available

$138.99

$

Usually ships in 3-6 days

0

3

White Outdoor 681-0088

PIVOT BRACKET

Variations

White Outdoor 681-0088-0483

BRACKET ASSY PIVOT WHEEL - CHARCOAL GRAY (0483)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0088-0498

BRACKET ASSY PIVOT WHEEL - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0088-0637

BRACKET ASSY PIVOT WHEEL - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0088-0638

BRACKET ASSY PIVOT WHEEL - MTD/TROY-BILT RED (0638)

$56.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0088-0650

BRACKET ASSY PIVOT WHEEL - RED METALLIC (0650)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0088-0662

BRACKET ASSY PIVOT WHEEL - OYSTER GRAY (0662)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0088-0665

BRACKET ASSY PIVOT WHEEL - YARDMAN GREEN (0665)

$56.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0088-0691

BRACKET ASSY PIVOT WHEEL - BLACK JACK (0691)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0088-0716

BRACKET ASSY PIVOT WHEEL - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

4

White Outdoor 710-0194

HEX CAP SCREW 3/8-16 x 3in

$

$

Not available

5

White Outdoor 712-0431

FLANGED LOCK NUT 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

6

White Outdoor 712-0456

HEX NUT 1/4-20

$10.99

$

Usually ships in 3-6 days

0

7

White Outdoor 712-3027

HEX FLANGED LOCK NUT 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 714-0104

INTERNAL COTTER PIN .072 x 1.12 lg

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 734-1804

WHEEL
(Superseded to 734-1804A)

$41.99

$

Usually ships in 3-6 days

0

10

White Outdoor 736-0366

FLAT WASHER 5/8 id 1.00 od

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 748-0188B

PAWL LH .345 id
(Superseded to 948-0188B)

$

$

Not available

12

White Outdoor 748-0318

RACHET, WHEEL 1.62 od x .5 SERR.
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 15

0

13

White Outdoor 748-0381

PAWL RH .345 id

$11.99

$

Usually ships in 3-6 days

0

14

White Outdoor 750-1042

SPACER .384 id x .500 od x 2.3

$13.99

$

Usually ships in 3-6 days

0
