YB-550 (247-203B190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1997) Idler Brkt. Ass'y And Pulley Parts Diagram

Yard Boss Chipper Shredder Vacuum

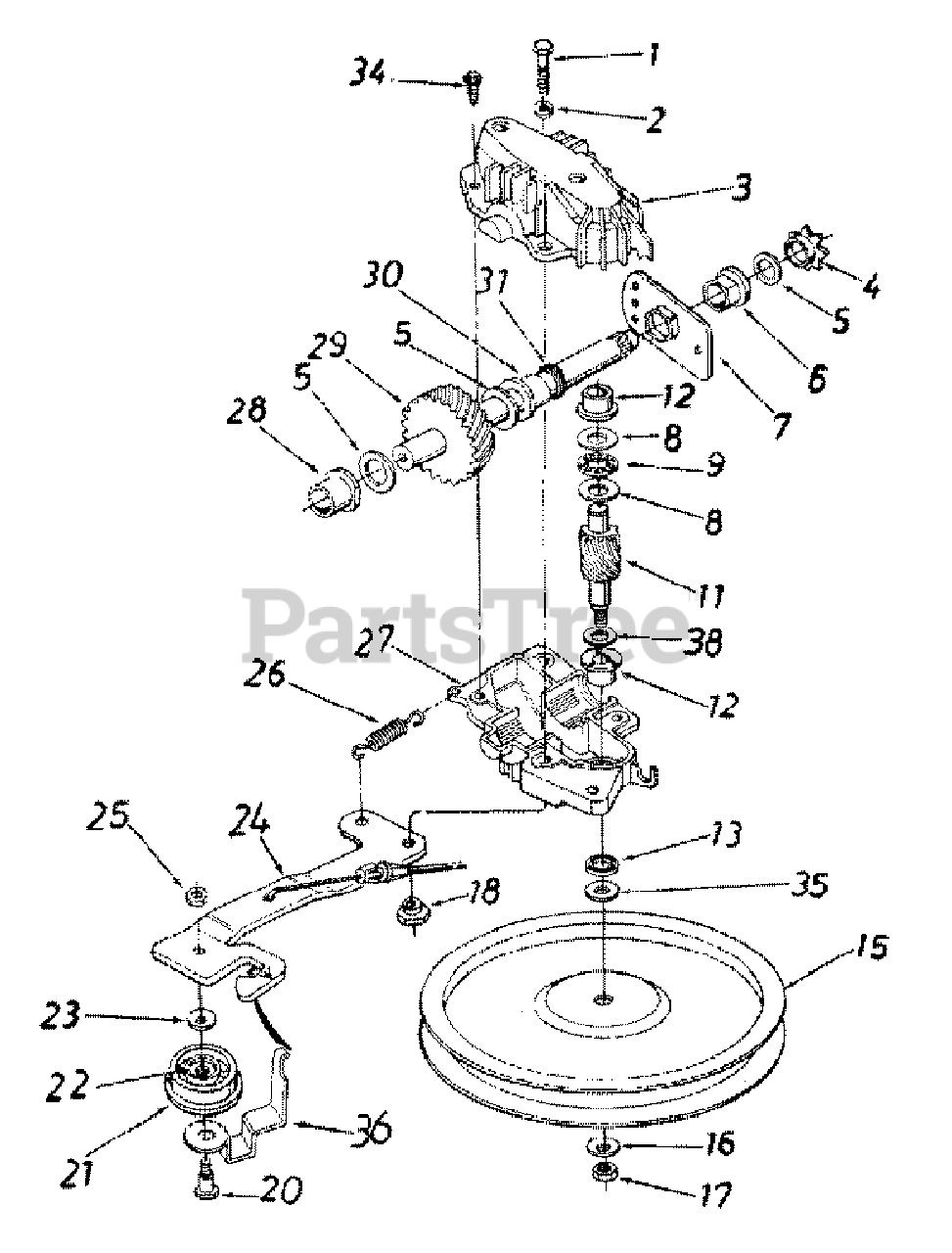

Idler Brkt. Ass'y And Pulley Parts Diagram

  • Title

1

White Outdoor 710-1062

Hex Bolt 1/4-20 x 1.25" Lg. w/Patch

$6.49

$

Usually ships in 3-6 days

0

2

726-0329

L-Wash. 1/4" I.D.

$

$

Not available

3

White Outdoor 719-0324A

Upper Hsg. Half

Note: Code: N Notates a new part (not previously existing)

$92.99

$

Usually ships in 3-6 days

0

4

White Outdoor 711-1118

6 Tooth Sprocket
(Superseded to 911-1118)

$32.99

$

Usually ships in 3-6 days

0

5

White Outdoor 736-0336

Fl-Wash. 5/8" I.D. x .030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

6

White Outdoor 741-0413

Hex Flange Brg. .631" I.D.

$9.99

$

Usually ships in 3-6 days

0

7

White Outdoor 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

White Outdoor 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

8

White Outdoor 736-0314

Thrust Wash. .382" I.D. x .70" O.D.

$6.99

$

Usually ships in 3-6 days

0

9

White Outdoor 741-0479

Thrust Bearing .375" I.D. x .812" O.D.

$11.99

$

Usually ships in 3-6 days

0

11

White Outdoor 717-1433

10 Tooth Helical Gear

$40.99

$

Usually ships in 3-6 days

0

12

White Outdoor 748-0208A

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

13

White Outdoor 721-0329

Oil Seal
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

15

White Outdoor 756-0618

Fl-Pulley 5.06" I.D.
(Superseded to 756-0656)

$36.99

$

Usually ships in 3-6 days

0

16

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 712-3045

Hex Nut 1/4-28 L.H. Thd.
(Superseded to 912-3045)

$4.99

$

Usually ships in 3-6 days

0

18

White Outdoor 738-0440

Shld. Spacer .375" Dia. x .170

$5.99

$

In Stock, only 4 left!

0

20

White Outdoor 738-0826

Shld. Bolt .375" Dia. x .40"

$12.99

$

In Stock, only 1 left!

0

21

White Outdoor 656-0008

Fl-Idler Plastic 1.50" Dia.
(Superseded to 956-0008)

$20.99

$

In Stock, only 2 left!

0

22

White Outdoor 741-0556

Needle Brg. .375" x .31"

$17.99

$

In Stock, only 4 left!

0

23

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 782-7570

Idler Brkt. Ass'y.
(Superseded to 682-0054)

$25.99

$

Usually ships in 3-6 days

0

25

White Outdoor 712-0138

Hex patch L-Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

26

White Outdoor 732-0357A

Extension Spring 1.12" Lg.

$4.49

$

In Stock, Qty 13

0

27

White Outdoor 719-0325

Lower Hsg. Half

$92.99

$

Usually ships in 3-6 days

0

28

White Outdoor 741-0415

Flange Bearing .56 Dia.
(Superseded to 941-0415)

$10.99

$

Usually ships in 3-6 days

0

29

White Outdoor 717-1432

34T: Helical Gear

$58.99

$

Usually ships in 3-6 days

0

30

White Outdoor 741-0414

Flange Bearing .629 Dia.

$10.99

$

Usually ships in 3-6 days

0

31

White Outdoor 721-0213

Oil Seal .625 Dia.

$10.99

$

In Stock, Qty 15

0

34

White Outdoor 710-0436

Hex B-Tap Scr. #10 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

35

White Outdoor 736-0425

Hex Washer .26" x .88"

$4.99

$

In Stock, Qty 13

0

36

White Outdoor 782-7569

Belt Keeper

$7.49

$

Usually ships in 3-6 days

0

?37

White Outdoor 717-1029

Transmission Comp.

$

$

Not available

38

White Outdoor 736-0520

Fl-Wash.
(Superseded to 936-0520)

$5.99

$

Usually ships in 3-6 days

0
