YB-550 (247-203B190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1997) Flail Housing Ass'y Parts Diagram

Yard Boss Chipper Shredder Vacuum

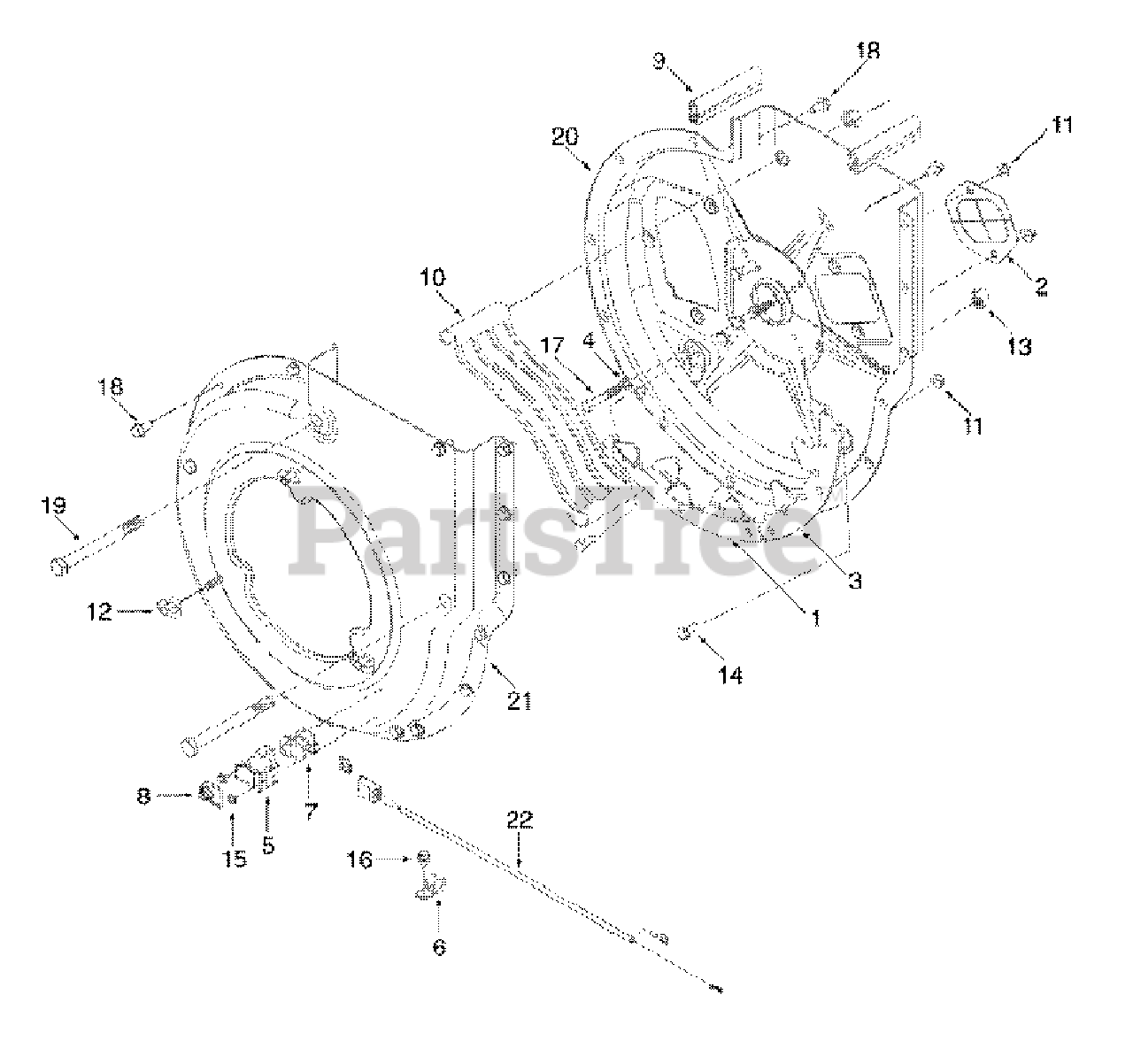

Flail Housing Ass'y Parts Diagram

  • Title

1

White Outdoor 781-0653

FLAIL HOUSING
(Superseded to 781-0653-0637)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 781-0653-0637

Flail Blade Housing, Black - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

2

White Outdoor 781-0627

CHIPPER BLADE

Variations

White Outdoor 781-0627-0483

COVER-CHIPPER-BLAD - CHARCOAL GRAY (0483)

$19.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0627-0498

COVER-CHIPPER-BLAD - OLD CUB YELLOW (0498)

$17.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0627-0637

COVER-CHIPPER-BLAD - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0627-0638

COVER-CHIPPER-BLAD - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0627-0648

COVER-CHIPPER-BLAD - TECH GRAY (0648)

$17.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0627-0650

COVER-CHIPPER-BLAD - RED METALLIC (0650)

$19.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0627-0662

COVER-CHIPPER-BLAD - OYSTER GRAY (0662)

$19.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0627-0716

COVER-CHIPPER-BLAD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

3

White Outdoor 781-0599

FLAIL HOUSING
(Superseded to 781-0599-0637)

Variations

White Outdoor 781-0599-0637

Shredder Blade, Upper - POWDER BLACK (0637)

$33.99

$

In Stock, only 1 left!

0

$33.99

$

In Stock, only 1 left!

0

4

White Outdoor 736-0119

LOCK WASHER 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

5

White Outdoor 731-1613

SAFETY SWITCH COVER
(Superseded to 931-1613)

$10.99

$

In Stock, only 1 left!

0

6

White Outdoor 726-0272

CLAMP 9/16 DIA.

$7.49

$

Usually ships in 3-6 days

0

7

White Outdoor 725-3166

SAFETY SWITCH SNAP MOUNT
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

8

White Outdoor 725-1700

SWITCH COVER
(Superseded to 925-1700)

$11.99

$

In Stock, only 1 left!

0

9

White Outdoor 723-0438

RUBBER SEAL

$10.99

$

In Stock, only 2 left!

0

10

White Outdoor 719-0326

SCREEN

$101.99

$

In Stock, only 2 left!

0

11

White Outdoor 712-3004A

HEX FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0421

KNOB 5/16-18 X .70

$6.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-0384

HEX LOCK NUT 1/2-13
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

14

White Outdoor 710-3008

HEX HEAD CAP SCREW 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 710-1268

HEX WASH TAPP-B SCREW #10-16 X .38

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 710-0896

HEX IND. WASH-AB SCREW 1/4-14 X .625

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 710-0772

HEX CAP SCREW 5/16-24 X 2.00

$4.49

$

Usually ships in 3-6 days

0

18

White Outdoor 710-0604

HEX IND. WASH-TT SCREW 5/16-18 X .62
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 710-0382

HEX CAP SCREW 1/2-13 X 5.00

$12.99

$

In Stock, only 2 left!

0

20

White Outdoor 681-0098

FLAIL HOUS. ASM. INNER

Variations

White Outdoor 681-0098-0483

HOUSING ASSY-FLAIL INNER - CHARCOAL GRAY (0483)

$207.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0098-0498

HOUSING ASSY-FLAIL INNER - OLD CUB YELLOW (0498)

$207.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0098-0637

HOUSING ASSY-FLAIL INNER - POWDER BLACK (0637)

$207.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0098-0638

HOUSING ASSY-FLAIL INNER - MTD/TROY-BILT RED (0638)

$256.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0098-0650

HOUSING ASSY-FLAIL INNER - RED METALLIC (0650)

$207.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0098-0662

HOUSING ASSY-FLAIL INNER - OYSTER GRAY (0662)

$207.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0098-0665

HOUSING ASSY-FLAIL INNER - YARDMAN GREEN (0665)

$207.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0098-0689

HOUSING ASSY-FLAIL INNER - POLO GREEN (0689)

$207.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0098-0716

HOUSING ASSY-FLAIL INNER - CUB YELLOW-99 (0716)

$207.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0098-0691

HOUSING ASSY-FLAIL INNER - BLACK JACK (0691)

$

$

Not available

White Outdoor 681-0098-0692

HOUSING ASSY-FLAIL INNER - AGWAY BLUE (0692)

$

$

Not available

$207.99

$

Usually ships in 3-6 days

0

21

White Outdoor 681-0060

FLAIL HOUS. ASM. OUTER

Variations

White Outdoor 681-0060-0483

HOUSING-ASSY-OUTER - CHARCOAL GRAY (0483)

$309.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0060-0638

HOUSING-ASSY-OUTER - MTD/TROY-BILT RED (0638)

$288.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0060-0650

HOUSING-ASSY-OUTER - RED METALLIC (0650)

$288.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0060-0662

HOUSING-ASSY-OUTER - OYSTER GRAY (0662)

$288.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0060-0665

HOUSING-ASSY-OUTER - YARDMAN GREEN (0665)

$288.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0060-0689

HOUSING-ASSY-OUTER - POLO GREEN (0689)

$288.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0060-0716

HOUSING-ASSY-OUTER - CUB YELLOW-99 (0716)

$288.99

$

Usually ships in 3-6 days

0

$288.99

$

Usually ships in 3-6 days

0

22

White Outdoor 629-0241A

WIRE HARNESS
(Superseded to 929-0241A)

Note: Code: N Notates a new part (not previously existing)

$61.99

$

Usually ships in 3-6 days

0
