YB-500 (24A-103A190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1998) Wheel Assembly Complete Parts Diagram

Yard Boss Chipper Shredder Vacuum

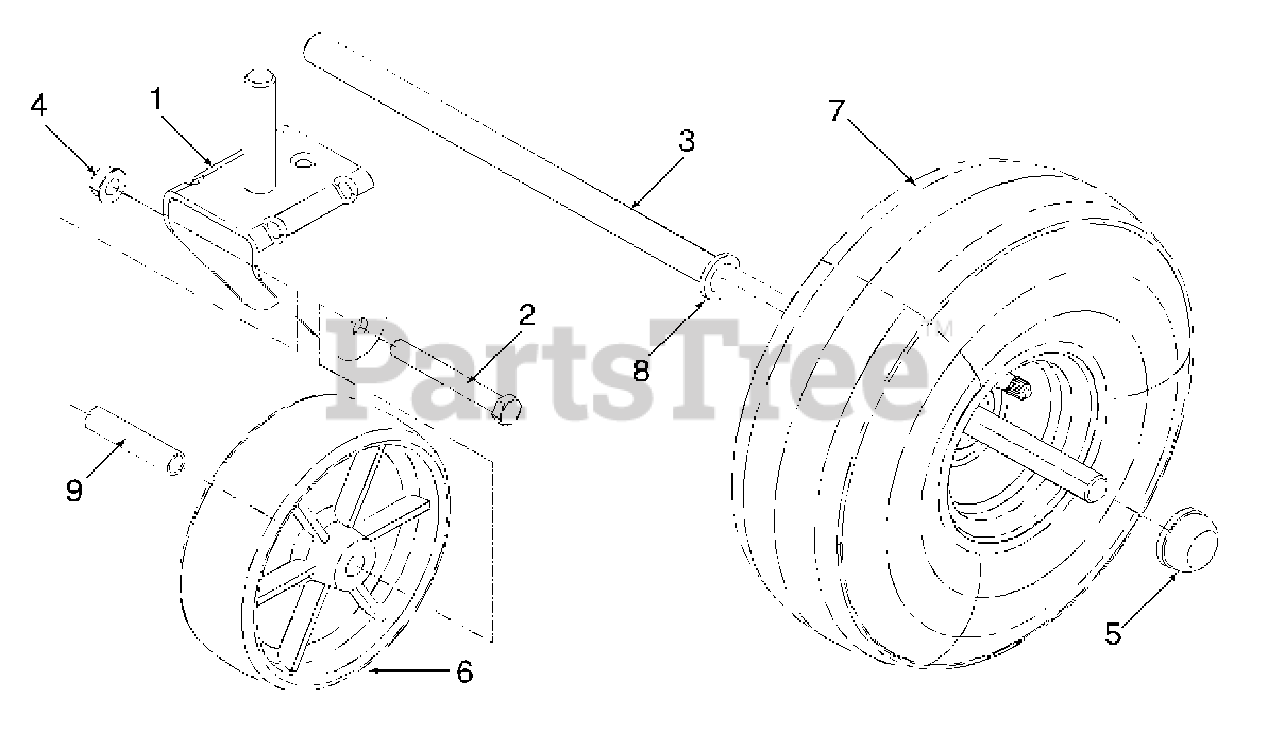

Wheel Assembly Complete Parts Diagram

  • Title

1

MTD 681-0088-0662

Bracket Assembly, Pivot Wheel
(Superseded to 681-0088)

$49.99

$

Usually ships in 3-6 days

0

2

MTD 710-0194

Screw, Hex Cap, 3/8-16 x 3.0

Note: NLA

$

$

Not available

3

MTD 711-1084

Shaft, Rear Axle

Note: NLA

$

$

Not available

4

MTD 912-0431

Nut, Hex Flange Lock, 3/8-16

$4.99

$

In Stock, Qty 20+

0

5

MTD 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

6

MTD 734-1804A

Wheel, 6.00 x 2.00

$41.99

$

Usually ships in 3-6 days

0

7

MTD 734-1816

Wheel Assembly, Complete, 10 x 4 x 4

Note: NLA

Variations

MTD 734-1816-0911

No Longer Available - Carlisle Gray (0911)

$

$

Not available

$

$

8

MTD 736-0366

Washer, Flat, .64 x 1.12 x .12

$4.49

$

In Stock, only 2 left!

0

9

MTD 750-1042

Spacer, .384 ID x .5 OD x 2.3 Lg

$13.99

$

Usually ships in 3-6 days

0
