YB-500 (24A-103A190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1998) Wheel And Ratchet Rim Assemblies Parts Diagram

Yard Boss Chipper Shredder Vacuum

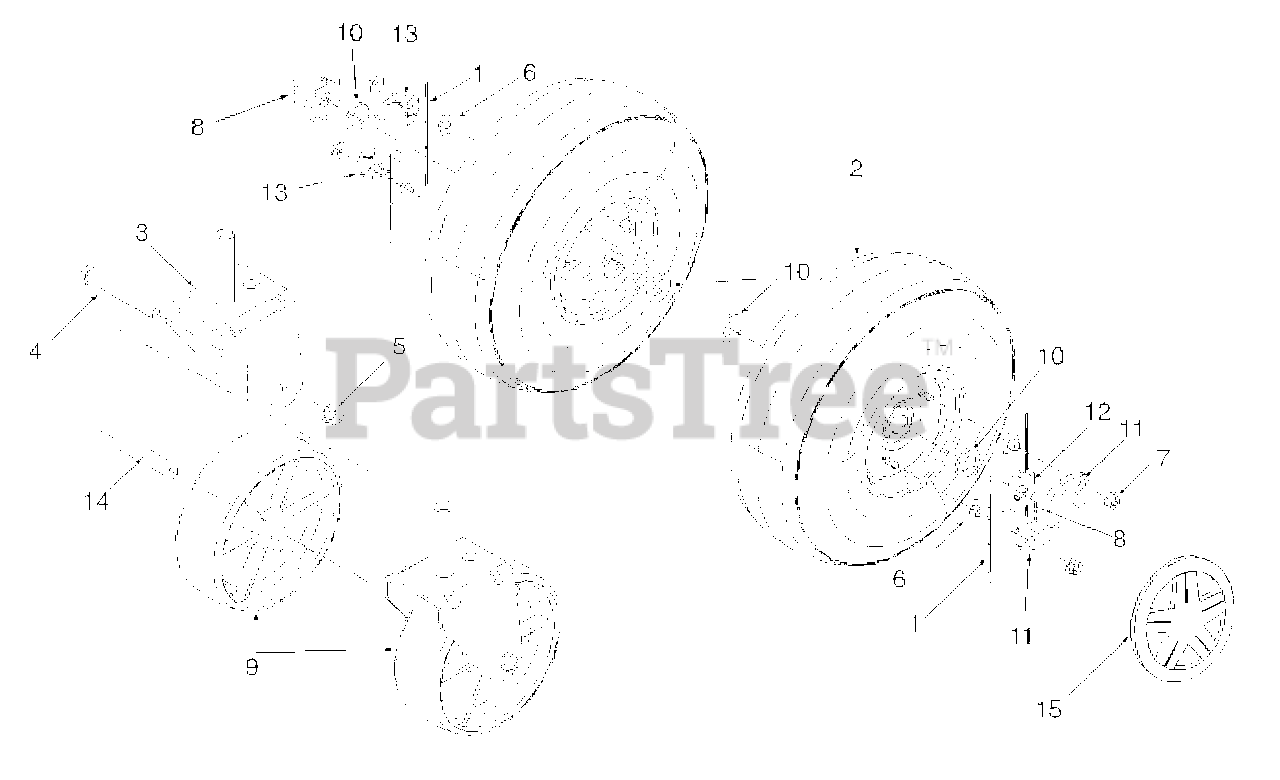

Wheel And Ratchet Rim Assemblies Parts Diagram

  • Title

1

MTD 10622BP

Spring, Plastic Ratchet
(Superseded to 10622B)

$5.49

$

In Stock, Qty 20+

0

2

MTD 634-0244

Wheel Assembly, Complete

$138.99

$

Usually ships in 3-6 days

0

2

MTD 634-0129-0662

Ratchet Rim Ass'y, Complete

$143.99

$

In Stock, only 1 left!

0

2

MTD 734-1598-0901

Tire, Pneumatic, 10 x 4

$119.99

$

Usually ships in 3-6 days

0

2

MTD 934-0255

Valve, Tubeless Air

$4.49

$

In Stock, Qty 20+

0

2

MTD 741-0487C

Bearing, Flange, .632 ID

$7.49

$

Usually ships in 3-6 days

0

3

MTD 681-0088-0662

Bracket Assembly, Pivot Wheel
(Superseded to 681-0088)

$49.99

$

Usually ships in 3-6 days

0

4

MTD 710-0194

Screw, Hex Cap, 3/8-16 x 3.0

Note: NLA

$

$

Not available

5

MTD 912-0431

Nut, Hex Flange Lock, 3/8-16

$4.99

$

In Stock, Qty 20+

0

6

MTD 912-0456

Nut, Special Hex 1/4-20
(Superseded to 712-0456)

$

$

Not available

7

MTD 912-3027

Nut, Hex Flange Lock, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

MTD 914-0104

Pin, Internal Cotter
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

9

MTD 734-1804A

Wheel, 6.00 x 2.00

$41.99

$

Usually ships in 3-6 days

0

10

MTD 736-0366

Washer, Flat, .64 x 1.12 x .12

$4.49

$

In Stock, only 2 left!

0

11

MTD 948-0188B

Pawl, LH .345 ID

$11.99

$

Usually ships in 3-6 days

0

12

MTD 748-0405

Ratchet, Wheel, .5 Serr ID x 1.62

$11.99

$

In Stock, only 2 left!

0

13

MTD 748-0381

Pawl, RH .345 ID

$11.99

$

In Stock, only 1 left!

0

14

MTD 750-1042

Spacer, .384 ID x .5 OD x 2.3 Lg

$13.99

$

Usually ships in 3-6 days

0

15

MTD 731-1851

Hubcap, 4.0 Gray

$17.99

$

Usually ships in 3-6 days

0
