YB-500 (24A-103A190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1998) Impeller Assembly Parts Diagram

Yard Boss Chipper Shredder Vacuum

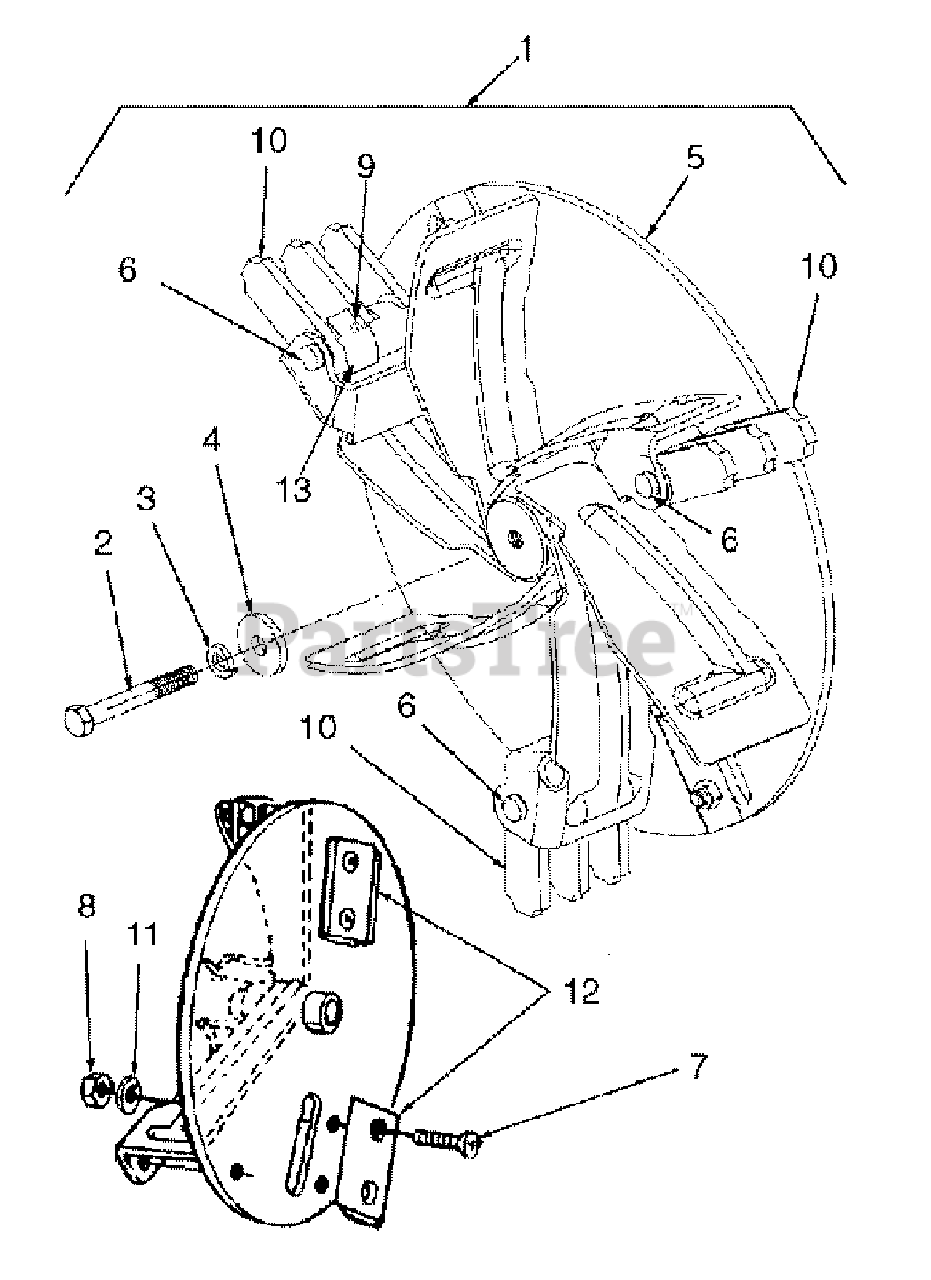

Impeller Assembly Parts Diagram

  • Title

1

MTD 981-0051

Impeller Ass'y, Complete (For model 500)
(Superseded to 981-04090)

$372.99

$

Usually ships in 3-6 days

0

1

MTD 981-04090

Impeller Ass'y, Complete (For model 550)

Note: Includes Ref. Nos. 5 thru 13

$372.99

$

Usually ships in 3-6 days

0

2

MTD 710-1273

Screw, Hex Cap, 3/8-24 x 2.75 GR5

$7.99

$

Usually ships in 3-6 days

0

3

MTD 936-0217

Washer, Lock, 3/8 Heavy Duty
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 9

0

4

MTD 736-0247

Washer, Flat, .406 x 1-1/4 HD

$9.49

$

In Stock, Qty 16

0

5

MTD 981-04091

Impeller Assembly (For model 500)

$533.99

$

Usually ships in 3-6 days

0

5

MTD 981-04090

Impeller Assembly (For model 550)

$372.99

$

Usually ships in 3-6 days

0

6

MTD 911-0833B

Pin, Clevis

$12.99

$

In Stock, only 2 left!

0

7

MTD 710-1054

Screw, Flat Hd. Cap, 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

8

MTD 912-0411

Nut, Hex Insert Lock, 5/16-24
(Superseded to 712-0411)

$

$

Not available

9

MTD 715-0166

Pin, Spirol, .156 x 1.000 Std.

$6.99

$

In Stock, Qty 15

0

10

MTD 719-0329

Blade, Flail

$31.99

$

In Stock, Qty 5

0

11

MTD 936-0119

Washer, Lock, 5/16

$4.99

$

In Stock, Qty 20+

0

12

MTD 981-0490

Blade, Chipper

$30.99

$

In Stock, Qty 10

0

13

MTD 781-0735

Clip, Retainer

$4.49

$

In Stock, Qty 20+

0
