YB-500 (247-103A190) - White Outdoor Yard Boss Chipper Shredder Vacuum (1997) Front Wheel Bracket Ass'y Parts Diagram

Yard Boss Chipper Shredder Vacuum

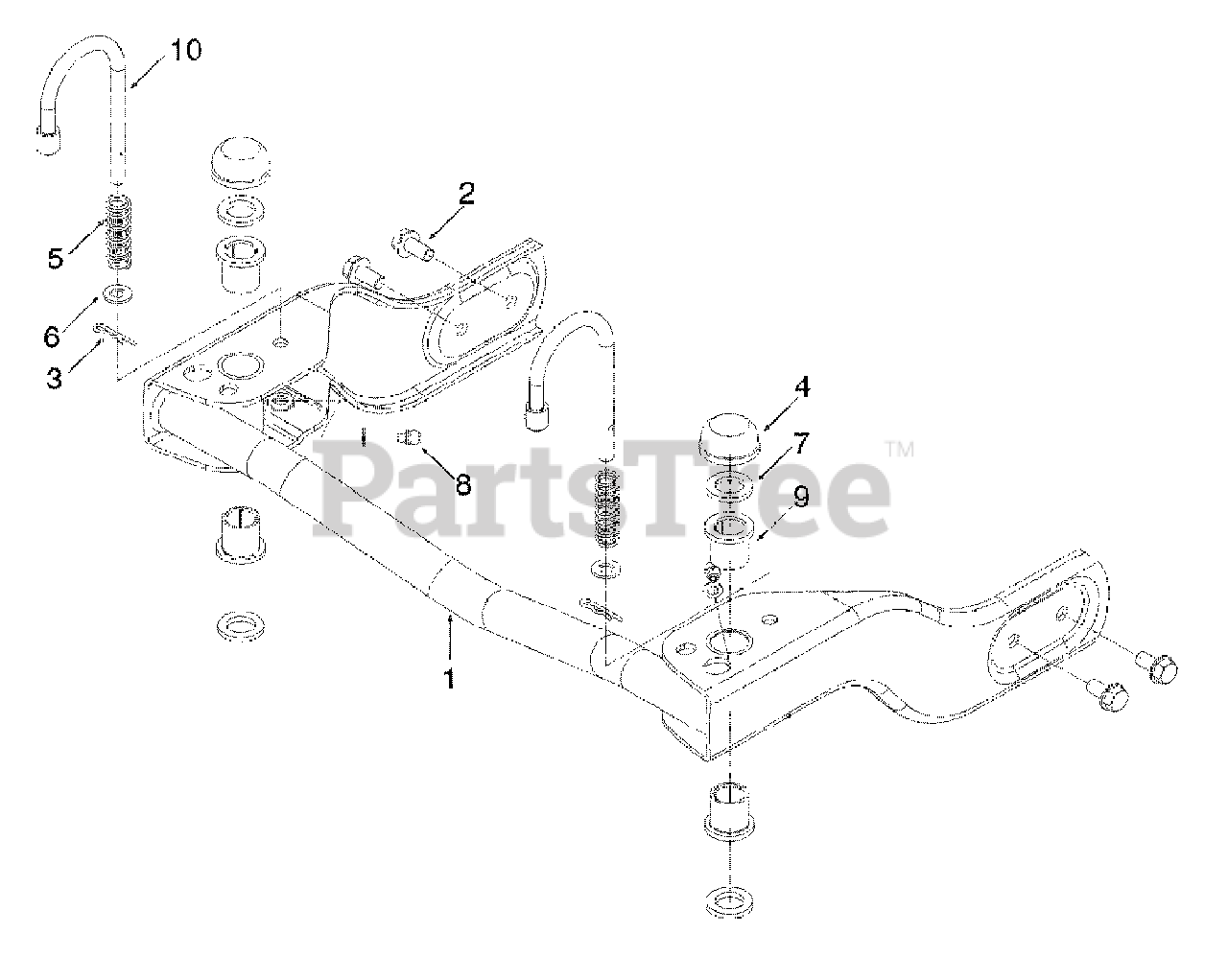

Front Wheel Bracket Ass'y Parts Diagram

  • Title
1

White Outdoor 681-0087

FRONT WHEEL BRACKET ASSEMBLY

Variations

White Outdoor 681-0087-0483

BRACKET ASSY-FRONT WHEEL - CHARCOAL GRAY (0483)

$188.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0087-0498

BRACKET ASSY-FRONT WHEEL - OLD CUB YELLOW (0498)

$233.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0087-0637

BRACKET ASSY-FRONT WHEEL - POWDER BLACK (0637)

$233.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0087-0638

BRACKET ASSY-FRONT WHEEL RED - MTD/TROY-BILT RED (0638)

$216.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0087-0650

BRACKET ASSY-FRONT WHEEL - RED METALLIC (0650)

$188.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0087-0662

BRACKET ASSY-FRONT WHEEL - OYSTER GRAY (0662)

$188.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0087-0665

BRACKET ASSY-FRONT WHEEL - YARDMAN GREEN (0665)

$188.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0087-0691

BRACKET ASSY-FRONT WHEEL - BLACK JACK (0691)

$233.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0087-0716

BRACKET ASSY-FRONT WHEEL - CUB YELLOW-99 (0716)

$216.99

$

Usually ships in 3-6 days

0

$188.99

$

Usually ships in 3-6 days

0

2

White Outdoor 710-0604

HEX WASH HD TT-TAP SCR. 5/16-18 x .62 LG
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 714-0104

INTERNAL COTTER PIN .072 x 1.75 LG

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 726-0214

PUSH CAP 5/8

$10.99

$

In Stock, only 2 left!

0

5

White Outdoor 732-0306

COMPRESSION SPRING .406 x .531 x 1.75 LG
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

6

White Outdoor 736-0264

FLAT WASHER .330 ID x .630 x .06

$6.99

$

In Stock, only 1 left!

0

7

White Outdoor 736-0366

FLAT WASHER 5/8 ID 1.00 OD

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 737-3000

FITTING 3/16
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

9

White Outdoor 741-0487A

FLANGE BEARING .632 ID
(Superseded to 741-0487C)

Note: Code: N Notates a new part (not previously existing)

$7.49

$

Usually ships in 3-6 days

0

10

White Outdoor 747-0924

LOCK PIN / FRONT WHEEL

Note: Code: N Notates a new part (not previously existing)

$20.99

$

In Stock, only 1 left!

0
