YB-50 (24A-030E190) - White Outdoor Yard Boss Chipper Shredder Vacuum (2001) Housing & Nozzle Parts Diagram

Yard Boss Chipper Shredder Vacuum

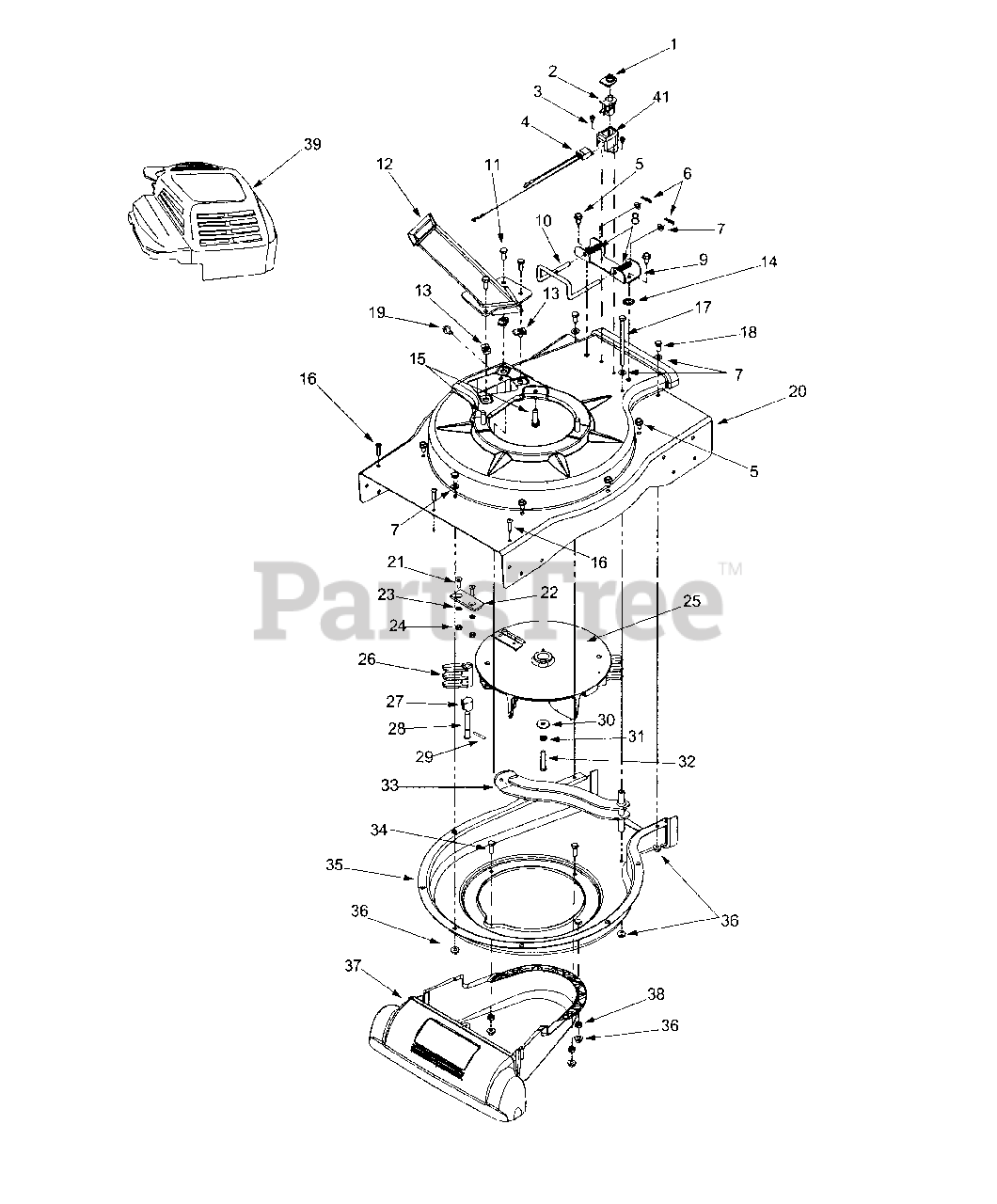

Housing & Nozzle Parts Diagram

  • Title

1

MTD 925-1700

Switch Cover

$11.99

$

In Stock, only 1 left!

0

2

MTD 925-3166

Safety Switch

$16.99

$

In Stock, Qty 20+

0

3

MTD 910-0224

Hex Washer Screw #10-16 x .50

$3.99

$

In Stock, Qty 20+

0

4

MTD 629-0920A

Wire Harness

$41.99

$

Usually ships in 3-6 days

0

5

MTD 710-0604A

Hex Washer Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

7

MTD 936-0264

Flat Washer .330 ID x .630 OD

$6.99

$

In Stock, only 2 left!

0

8

MTD 732-0962

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

9

MTD 781-0778A-0637

Mounting Bracket

$17.99

$

Usually ships in 3-6 days

0

10

MTD 747-1153

Lock Rod

$16.99

$

Usually ships in 3-6 days

0

11

MTD 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

12

MTD 681-0122

Chipper Chute Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 681-0122-0498

CHUTE CHIPPER ASM. - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0122-0638

CHUTE CHIPPER ASM. - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0122-0662

CHUTE CHIPPER ASM. - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0122-0665

CHUTE CHIPPER ASM. - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0122-0689

CHUTE CHIPPER ASM. - POLO GREEN (0689)

$

$

Not available

MTD 681-0122-0716

No Longer Available CHUTE CHIP - CUB YELLOW-99 (0716)

$

$

Not available

MTD 681-0122-0721

CHUTE ASM-CHIPPER - SEARS RED (0721)

$

$

Not available

MTD 681-0122-4021

No Longer Available CHUTE CHIP - CUB YELLOW 2 (4021)

$

$

Not available

MTD 681-0122-4044

CHUTE ASM-CHIPPER - CRAFTSMAN RED (4044)

$

$

Not available

$80.99

$

Usually ships in 3-6 days

0

13

MTD 726-0454

U-Clip Lock Nut 5/16-18

$

$

Not available

14

MTD 736-0607

External Lock Washer 5/16

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0502A

Hex Washer Screw 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

16

MTD 710-0969

Screw #12-16 x 1.0

$4.49

$

In Stock, only 2 left!

0

17

MTD 710-3195

Hex Cap Screw 5/16-18 x 4.5

$7.49

$

Usually ships in 3-6 days

0

18

MTD 710-3025

Hex Cap Screw 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

19

MTD 710-0604A

Hex Washer Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

20

MTD 781-0720

Upper Housing

Note: NLA

Variations

MTD 781-0720-0498

No Longer Available HOUSING FL - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0720-0638

No Longer Available HOUSING FL - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0720-0662

No Longer Available HOUSING FL - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0720-0665

No Longer Available HOUSING FL - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0720-0689

No Longer Available HOUSING FL - POLO GREEN (0689)

$

$

Not available

MTD 781-0720-0716

No Longer Available HOUSING FL - CUB YELLOW-99 (0716)

$

$

Not available

$

$

21

MTD 710-1054

Hex Screw 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

22

MTD 981-0490

Chipper Blade

$30.99

$

In Stock, Qty 8

0

23

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

24

MTD 912-0411

Hex Lock Nut 5/16-24
(Superseded to 712-0411)

$

$

Not available

25

MTD 981-0152

Impeller Assembly

$534.99

$

Usually ships in 3-6 days

0

26

MTD 719-0329

Flail Blade

$31.99

$

In Stock, only 4 left!

0

27

MTD 781-0735

Pin Clip

$4.49

$

In Stock, Qty 20+

0

28

MTD 711-1401

Clevis Pin

$9.99

$

Usually ships in 3-6 days

0

29

MTD 715-0166

Spiral Pin

$6.99

$

In Stock, Qty 19

0

30

MTD 736-0247

Flat Washer .375 ID x 1.25 OD

$9.49

$

In Stock, Qty 12

0

31

MTD 936-0217

Lock Washer 3/8
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 6

0

32

MTD 710-0818

Hex Cap Screw 3/8-24 x 2.0

$6.99

$

In Stock, only 1 left!

0

33

MTD 681-0154-0637

Screen Assembly

$48.99

$

Usually ships in 3-6 days

0

34

MTD 710-3038

Hex Cap Screw 5/16-18 x .875

$4.99

$

In Stock, only 3 left!

0

35

MTD 781-0721B

Lower Housing

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0721B-0498

HOUSING-FLAIL LWR - OLD CUB YELLOW (0498)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-0638

HOUSING-FLAIL LWR - MTD/TROY-BILT RED (0638)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-0662

HOUSING-FLAIL LWR - OYSTER GRAY (0662)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-0665

HOUSING-FLAIL LWR - YARDMAN GREEN (0665)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-0689

HOUSING-FLAIL LWR - POLO GREEN (0689)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-0691

HOUSING-FLAIL LWR - BLACK JACK (0691)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-0709

HOUSING-FLAIL LWR - MASTERCRAFT GREEN (0709)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-0716

HOUSING-FLAIL LWR - CUB YELLOW-99 (0716)

$136.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-0721

HOUSING-FLAIL LWR - SEARS RED (0721)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-4021

HOUSING-FLAIL LWR - CUB YELLOW 2 (4021)

$157.99

$

Usually ships in 3-6 days

0

MTD 781-0721B-4044

HOUSING-FLAIL LWR - CRAFTSMAN RED (4044)

$157.99

$

Usually ships in 3-6 days

0

$136.99

$

Usually ships in 3-6 days

0

36

MTD 712-3004A

Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

37

MTD 731-1905A

Nozzle Cover

$123.99

$

Usually ships in 3-6 days

0

38

MTD 912-0158

Lock Nut 5/16-18

$3.49

$

In Stock, Qty 18

0

39

MTD 751B281451

Shroud

$

$

Not available

40

MTD 710-1256

Screw #8-18 x 1.25

$5.99

$

In Stock, only 2 left!

0

41

MTD 931-1613

Safety Switch Cover

$10.99

$

In Stock, only 1 left!

0
