YB 1840 RDFR (2690882) - Murray 40" Lawn Tractor, Hydro Drive, 18hp, Seco (2010) Frame & Front Axle Group Parts Diagram

40" Lawn Tractor, Hydro Drive, 18hp, Seco

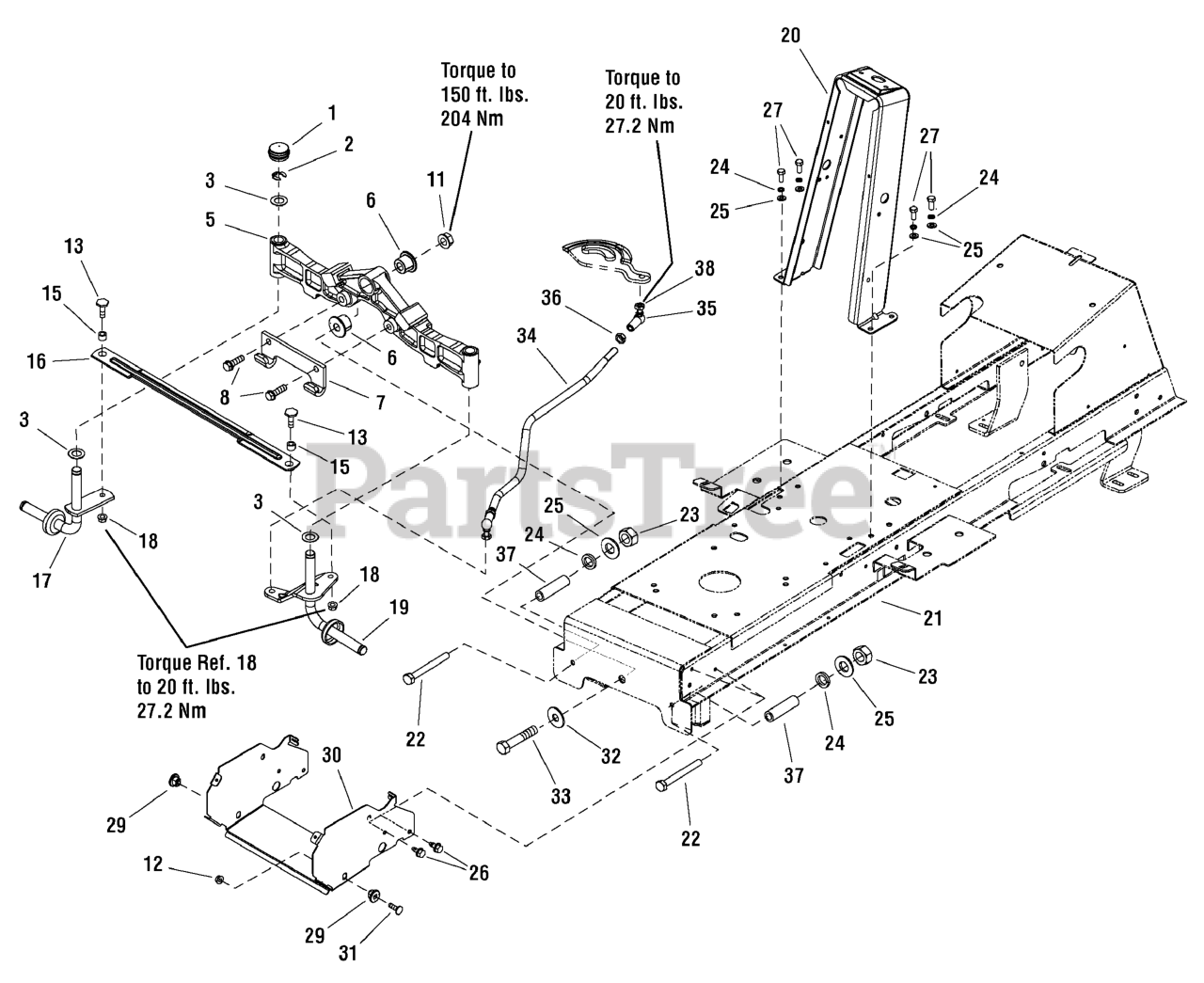

Frame & Front Axle Group Parts Diagram

  • Title

1

Murray 1726504SM

CAP, Hub 1.51D

$4.99

$

In Stock, only 2 left!

0

2

Murray 1611710SM

RING, Klipring

$4.49

$

In Stock, Qty 20+

0

3

Murray 2860183SM

WASHER, 828 x 1.62 x .0583

$4.99

$

In Stock, Qty 20+

0

5

Murray 1728018SM

AXLE, Front
(Superseded to 1756386YP)

Note: (Includes Ref. Nos. 1, 2, 3, 17 & 19)

$185.99

$

In Stock, only 1 left!

0

6

Murray 1730186SM

BUSHING, Axle Pivot

$6.99

$

In Stock, Qty 12

0

7

Murray 1721918ASM

HOOK, Hitch, 5/16

$31.99

$

In Stock, Qty 9

0

8

Murray 1960652SM

CAPSCREW, 7/16-14 x 1-1/2

$5.49

$

In Stock, Qty 8

0

11

Murray 2860646SM

NUT, Hex Flange, 5/8-11

$10.99

$

In Stock, Qty 6

0

12

Murray 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

13

Murray 1960032SM

SCREW, Hex Head, 3/8-16 x 1 1/4

$5.49

$

In Stock, only 1 left!

0

15

Murray 1731912SM

SPACER

$4.49

$

In Stock, Qty 20+

0

16

Murray 1728080ASM

ROD, Tie

$35.99

$

In Stock, only 1 left!

0

17

Murray 1727872ASM

SPINDLE AND CUP ASSEMBLY, Right

$98.99

$

In Stock, Qty 20+

0

18

Murray 1930645SM

NUT, Hex Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Murray 1727873ASM

SPINDLE AND CUP ASSEMBLY, Left

$101.99

$

In Stock, Qty 8

0

20

Murray 1727260SM

TOWER
(Superseded to 885835BMYP)

$76.99

$

Usually ships in 2-12 days

0

21

Murray 1736499YP

FRAME

$

$

Not available

22

Murray 1735874YP

BOLT, M8 x 75

$

$

Not available

23

Murray 1735934YP

NUT, M8

$

$

Not available

24

Murray 1735989YP

WASHER, 8.4

$

$

Not available

25

Murray 1736000YP

WASHER, 8

$

$

Not available

26

Murray 1930601SM

SCREW, Tap 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

27

Murray 1735868YP

BOLT, M8 x 20

$

$

Not available

29

Murray 1728086SM

PIVOT, Hood

$5.99

$

In Stock, Qty 7

0

30

Murray 1735973YP

SUPPORT, Muffler

$

$

Not available

31

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

32

Murray 1960035SM

WASHER, 5/8

$4.49

$

In Stock, only 2 left!

0

33

Murray 2860744SM

CAPSCREW, Hex Head, 5/8-11 x 3 1/4

$8.49

$

Usually ships in 2-12 days

0

34

Murray 1735919YP

DRAG LINK

$

$

Not available

35

Murray 1735851YP

BALL JOINT, CS16 M10-M12

$

$

Not available

36

Murray 1735928YP

NUT, M12

$

$

Not available

37

Murray 1735892YP

DISTANCE, Front Axle 0-9521-291

$

$

Not available

38

Murray 1735926YP

NUT, M10

$

$

Not available
