YB 1840 RDFR (2690882) - Murray 40" Lawn Tractor, Hydro Drive, 18hp, Seco (2010) 40" Mower Deck - Housing, Hitch, Arbors & Blade Group Parts Diagram

40" Lawn Tractor, Hydro Drive, 18hp, Seco

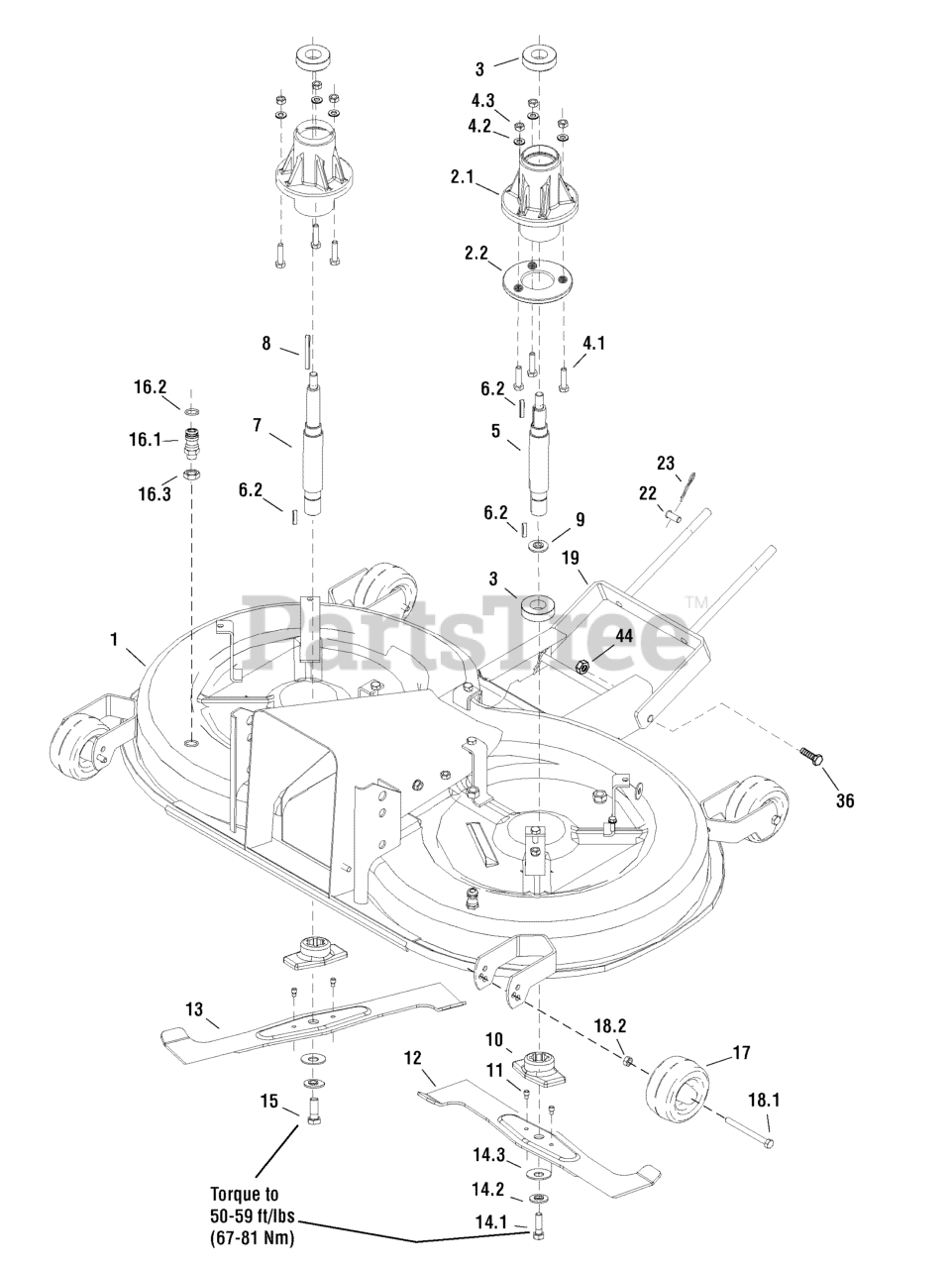

40" Mower Deck - Housing, Hitch, Arbors & Blade Group Parts Diagram

  • Title

1

Murray 1737368YP

MOWER DECK, Complete

$

$

Currently unavailable

2.1

Murray 1735791YP

HOUSING

$

$

Not available

2.2

Murray 1735807YP

REINFORCEMENT

$

$

Not available

3

Murray 1735780YP

BEARING, 6205 2 RS C 66IB

$

$

Not available

4.1

Murray 1735819YP

SCREW, M8 x 35

$

$

Not available

4.2

Murray 1735839YP

WASHER, 8.4

$

$

Not available

4.3

Murray 1735801YP

NUT, M8

Note: (Use with Washer Ref. 4.2)

$

$

Not available

4.3

Murray 1751829YP

NUT, Flange Lock, M8

Note: (Washer Ref. 4.2 not required)

$

$

Not available

5

Murray 1735823YP

SHAFT

$

$

Not available

6.2

Murray 1735829YP

TONGUE, 6 H 9 x 6 x 28

$

$

Not available

7

Murray 1735822YP

SHAFT

$

$

Not available

8

Murray 1735831YP

TONGUE, 6 H 9 x 6 x 63

$

$

Not available

9

Murray 1735812YP

RING, Safety 25

$

$

Not available

10

Murray 1735792YP

HOUSING

$

$

Not available

11

Murray 1735824YP

SHEAR STUD, 0-9311-736

$

$

Not available

12

Murray 1735809YP

BLADE, Right Rotary

$

$

Not available

13

Murray 1735793YP

BLADE, Left Rotary

$

$

Not available

14.1

Murray 1735815YP

SCREW, M10, 0-9011-287

$

$

Not available

14.2

Murray 1735835YP

WASHER, 0-9220-749

$

$

Not available

14.3

Murray 1735840YP

WASHER, BN 806-40 x 16.3 x 2 x 3.1

$

$

Not available

15

Murray 1735814YP

SCREW, 0-9011-283 M10, Left Thread

$

$

Not available

16.1

Murray 1735803YP

QUICK FASTENER, 0-9026-246

$

$

Not available

16.2

Murray 1735810YP

RING, 13 x 2 NBR

$

$

Not available

16.3

Murray 1735797YP

NUT, M12

$

$

Not available

17

Murray 1735808YP

CUTTING WHEEL, Right ETOP 100-8.2

$

$

Not available

18.1

Murray 1735821YP

SCREW, M8 x 90

$

$

Not available

18.2

Murray 1751829YP

NUT, Flange Lock, M8

$

$

Not available

19

Murray 1735902YP

HINGE, Front

$

$

Not available

22

Murray 1735795YP

MOWING STUD, 1-9310-290

$

$

Not available

23

Murray 1735786YP

PIN, Flexible 0-9245-999

$

$

Not available

36

Murray 1735856YP

BOLT, M12 x 25

$

$

Not available

44

Murray 1735796YP

NUT, M12

$

$

Not available
