Y1-20OE02 (620-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 010000001 - 019999999) (1991) TRANSMISSION AND DRIVE SYSTEM Parts Diagram

Zero-Turn Mower, Drive Unit Only

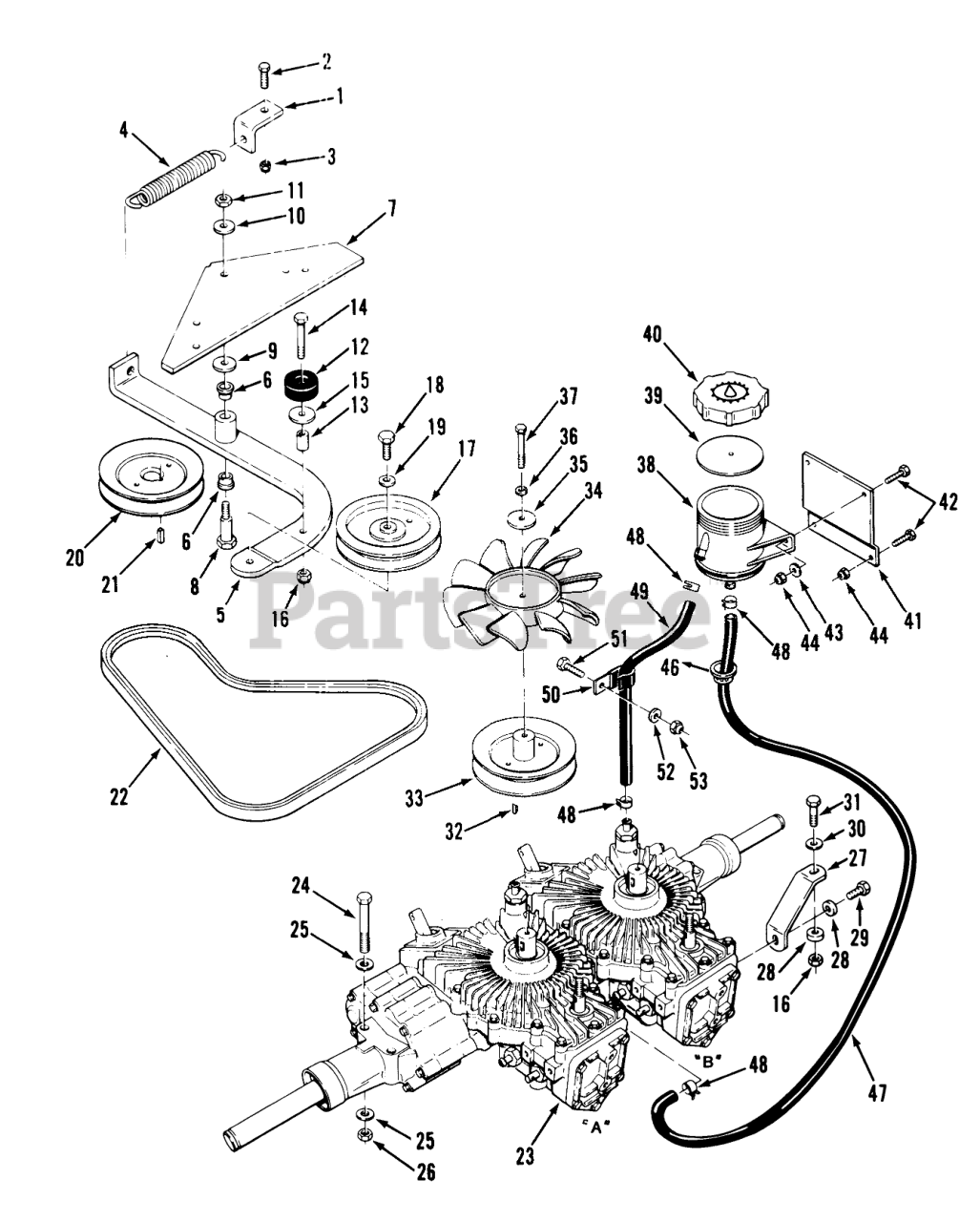

TRANSMISSION AND DRIVE SYSTEM Parts Diagram

  • Title

1

Toro 116505

BRACKET-SPRING

$

$

Not available

2

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 16

0

3

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

4

Toro 116506

SPRING-EXTENSION

$28.99

$

Usually ships in 3-6 days

0

5

Toro 116721

Arm-Idler
(Superseded to 116721-03)

$

$

Not available

6

Toro 6229

BUSHING

$10.99

$

In Stock, only 2 left!

0

7

Toro 116718

Stiffener
(Superseded to 116718-01)

$

$

Not available

8

Toro 113165

BOLT-SHOULDER

$25.99

$

In Stock, only 1 left!

0

9

Toro 2844

WASHER

$2.99

$

In Stock, Qty 16

0

10

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

11

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

12

Toro 108889

BUMPER

$24.99

$

Usually ships in 3-6 days

0

13

Toro 116728

SPACER

$

$

Not available

14

Toro 908023

Bolt 5/16-18 x 2
(Superseded to 322-10)

$0.99

$

In Stock, Qty 5

0

15

Toro 116531

WASHER

$

$

Not available

16

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

17

Toro 116439

PULLEY IDLER

$

$

Not available

18

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

19

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 19

0

20

Toro 116670

PULLEY

$

$

Not available

Toro 119270

PULLEY

$

$

Not available

21

Toro 105453

Key

$2.49

$

In Stock, only 2 left!

0

22

Toro 116527

V-BELT

$43.99

$

Usually ships in 3-6 days

0

23

Toro 115313

Transaxle Assembly

$

$

Not available

Toro 78-7040

Transaxle Assembly-.670" Input Shaft

$

$

Not available

24

Toro 908041

Bolt
(Superseded to 323-13)

$1.99

$

In Stock, Qty 15

0

25

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 19

0

26

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 12

0

27

Toro 115274

BRKT-HYDRO SIDE

$

$

Not available

28

Toro 920267

WASHER-SPECIAL

$3.99

$

Usually ships in 3-6 days

0

29

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 16

0

30

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

31

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

32

Toro 937086

KEY WOODRUFF

$

$

Not available

33

Toro 116665

PULLEY

$152.99

$

Usually ships in 3-6 days

0

Toro 78-2760

PULLEY

$

$

Not available

34

Toro 115271

FAN-7"

$36.99

$

In Stock, Qty 5

0

35

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

36

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

37

Toro 908009

Bolt 1/4-20 x 2
(Superseded to 321-11)

$0.99

$

In Stock, Qty 20+

0

38

Toro 79-1100

ASS'Y-RESERVOIR

$

$

Not available

39

Toro 114563

COVER GASKET

$20.99

$

In Stock, only 1 left!

0

40

Toro 79-1080

COVER

$

$

Not available

41

Toro 118100

BRKT-RESERVOIR R

$

$

Not available

42

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

43

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

44

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 18

0

46

Toro 938031

BUSHING-NYLON 1.093

$

$

Not available

47

Toro 115748

HOSE - 24" OF 114702

$

$

Not available

Toro 117413

HOSE 3/8 I.D. X 14

$

$

Not available

48

Toro 116180

CLAMP

$

$

Not available

49

Toro 115747

HOSE - 9.5" OF 114702

$

$

Not available

Toro 115777

HOSE - 12" OF 114702

$

$

Not available

50

Toro 8820

PIN HITCH UPPER LINK

$

$

Not available

51

Toro 988017

Bolt 5/16-18 x 1

$

$

Currently unavailable

52

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

53

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0
