Y1-20OE02 (620-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 010000001 - 019999999) (1991) OIL BASE AND OIL PUMP-612-Z Parts Diagram

Zero-Turn Mower, Drive Unit Only

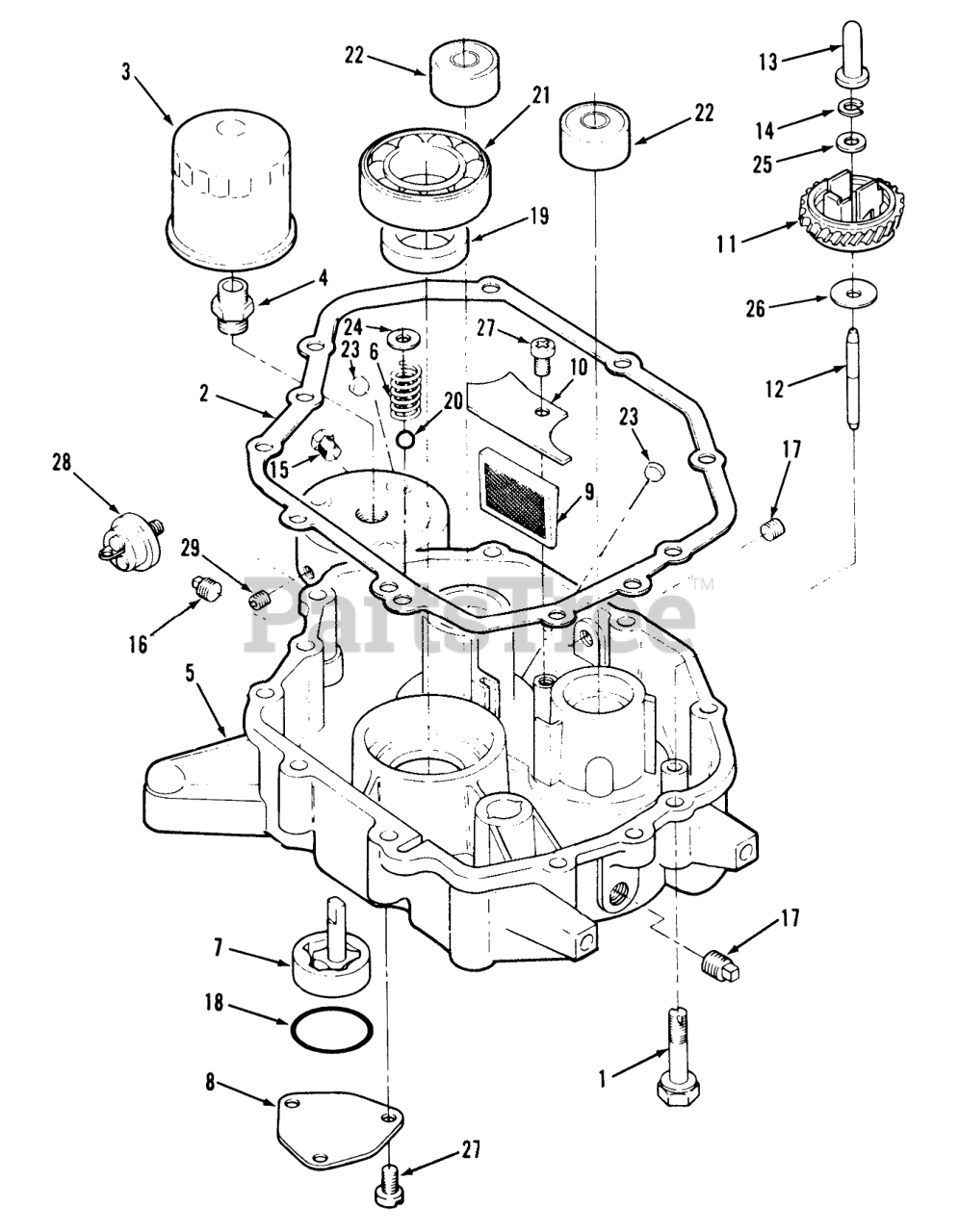

OIL BASE AND OIL PUMP-612-Z Parts Diagram

  • Title

1

Toro NN10680

SELF-TAP BOLT SP M8

$

$

Not available

2

Toro NN10681

Gasket
(Superseded to 93-9816)

$

$

Not available

3

Toro NN10819

Oil Filter
(Superseded to NN10684)

$32.99

$

In Stock, only 3 left!

0

4

Toro NN1068S

Oil Filter Adapter

$

$

Currently unavailable

5

Toro NN10675

BASE-0IL

$

$

Not available

6

Toro NN10133

Spring
(Superseded to 59-0280)

$

$

Not available

7

Toro NN10572

PUMP-OIL

$

$

Not available

8

Toro NN10573

COVER-OIL PUMP

$

$

Not available

9

Toro NN10577

SCREEN

$

$

Not available

10

Toro NN10578

COVER

$

$

Not available

11

Toro NN10636

Gear (Includes shafts and weights)

$

$

Not available

12

Toro NN10637

SHAFT-GOVERNOR

$

$

Not available

13

Toro NN10638

Sleeve
(Superseded to 92-5914)

$

$

Not available

14

Toro NN10639

STOP-GOVERNOR

$

$

Not available

15

Toro NN10687

PLUG-HEX HD

$

$

Not available

16

Toro NN10682

Plug
(Superseded to 82-1130)

$4.99

$

Usually ships in 3-6 days

0

17

Toro NN10686

PLUG

$

$

Not available

18

Toro NN10575

RING-O

$

$

Not available

19

Toro NN10569

SEAL-OIL CRNKSHFT UP

$17.99

$

Usually ships in 3-6 days

0

20

Toro NN10534

BALL-BEARING

$

$

Not available

21

Toro NN10677

BRNG-BALL CRANKSH L

$

$

Not available

22

Toro NN10568

Ball Bearing
(Superseded to NN10678)

$

$

Not available

23

Toro NN10339

Plug
(Superseded to 59-0760)

$

$

Not available

24

Toro NN10539

RETAINING-RING

$

$

Not available

25

Toro NN10628

WASHER-1.6MM THK

$

$

Not available

26

Toro NN10629

WASHER-1MM THK

$

$

Not available

27

Toro NN10576

SCREW

$

$

Not available

28

Toro NN10813

SWITCH-OIL PRESSURE

$

$

Not available

29

Toro NN10798

Plug
(Superseded to 700412)

$

$

Not available
