Y1-20OE02 (620-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 010000001 - 019999999) (1991) CYLINDER HEAD AND VALVES-612-Z Parts Diagram

Zero-Turn Mower, Drive Unit Only

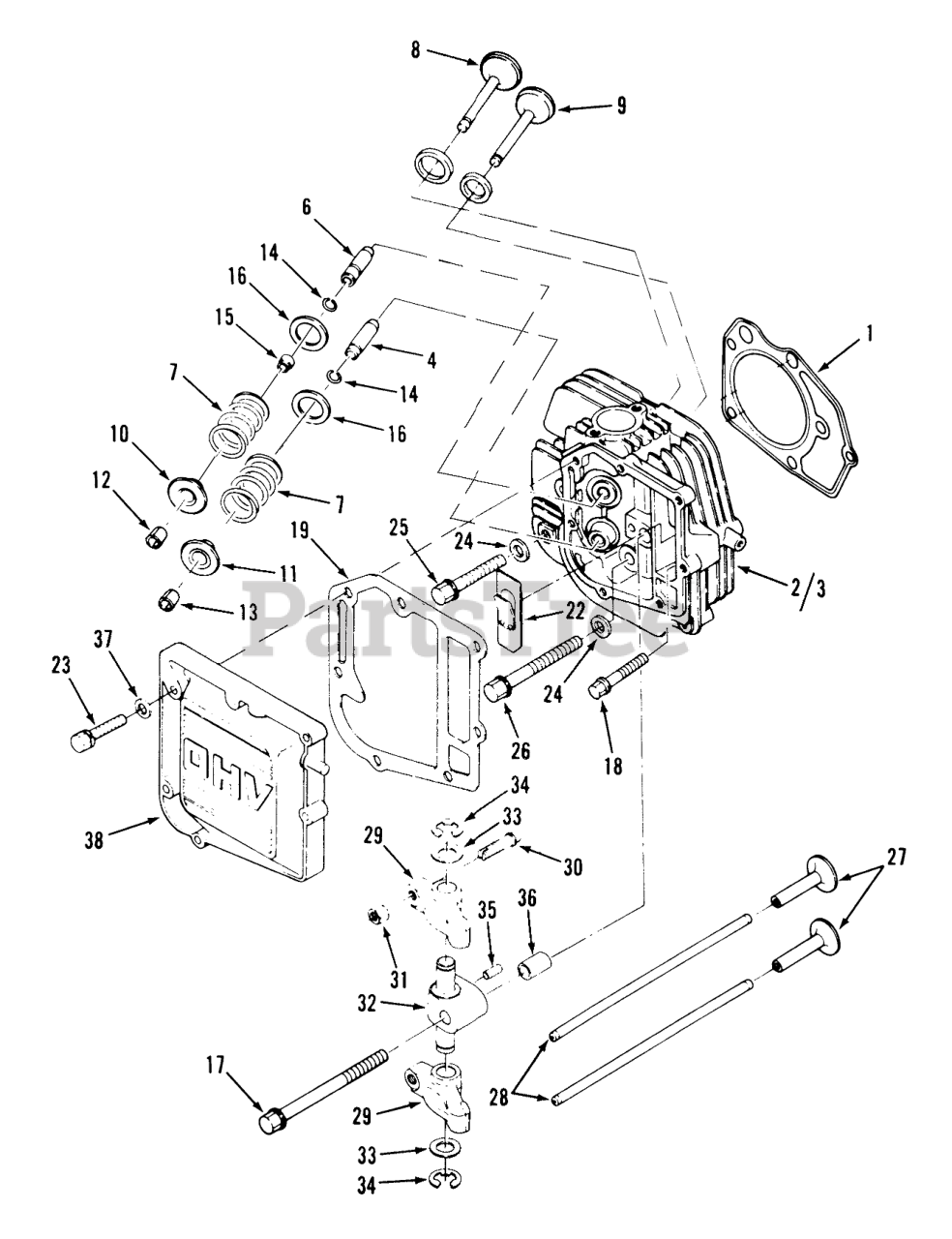

CYLINDER HEAD AND VALVES-612-Z Parts Diagram

  • Title

1

Toro NN10592

GSKT-CYL HEAD

$

$

Not available

2

Toro NN10779

Cylinder Head Assembly W/Valves (Incl. Ref. #3-16)
(Superseded to NN10593)

$

$

Not available

3

Toro NN10780

Cylinder Head Assembly W/Out Valves (Incl. Ref. #4 & 6)

$

$

Not available

4

Toro NN10596

GUIDE-VALVE EXHAUST

$

$

Not available

6

Toro NN10595

GUIDE-VALVE INTAKE

$

$

Not available

7

Toro NN10597

SPRING-VALVE

$

$

Not available

8

Toro NN10598

VALVE-INTAKE MKD IN

$

$

Not available

9

Toro NN10599

VALVE-EXHAUST MKD EX

$

$

Not available

10

Toro NN10600

RETAINER-VLV SPG IN

$

$

Not available

11

Toro NN10601

RETAINER-VLV SPG EX

$

$

Not available

12

Toro NN10602

Lock-Intake
(Superseded to 92-5881)

$

$

Not available

13

Toro NN10603

LOCK-VALVE EXHAUST

$

$

Not available

14

Toro NN10604

RING-VALVE GUIDE

$

$

Not available

15

Toro NN1060S

Seal-Intake

$

$

Currently unavailable

16

Toro NN10606

WASHER-VALVE SPRING

$

$

Not available

17

Toro NN10607

BLT-CYL HD M10X125MM

$

$

Not available

18

Toro NN10608

BLT-CYL HD M8X50MM

$

$

Not available

19

Toro NN10609

Seal
(Superseded to 93-9816)

$

$

Not available

22

Toro NN10612

BREATHER

$

$

Not available

23

Toro NN10613

SCRW-CP SH M6X25MM

$

$

Not available

24

Toro NN10614

WASHER-FLAT M10

$

$

Not available

25

Toro NN10615

BLT-CYL HD M10X66MM

$

$

Not available

26

Toro NN10616

BLT-CYL HD M10X86MM

$

$

Not available

27

Toro NN10617

TAPPET

$

$

Not available

28

Toro NN10618

Push Rod (Incl. Ref. #30 & 31)

$

$

Not available

29

Toro NN10619

ARM-ASS'Y-ROCKER

$

$

Not available

30

Toro NN10620

SCRW-LASH ADJUSTING

$

$

Not available

31

Toro NN10621

NUT-LASH ADJUSTING

$

$

Not available

32

Toro NN10622

SHAFT-ROCKER ARM

$

$

Not available

33

Toro NN10623

Rocker Arm Washer
(Superseded to 92-5934)

$

$

Not available

34

Toro NN10624

CLIP-RETAINER

$

$

Not available

35

Toro NN10625

PIN-DOWEL

$

$

Not available

36

Toro NN10626

PIN-DOWEL HOLLOW

$

$

Not available

37

Toro NN10542

Washer
(Superseded to 82-1340)

$

$

Not available

38

Toro NN10781

Valve Cover
(Superseded to 92-5885)

$

$

Not available
