Y1-20OE02 (620-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 010000001 - 019999999) (1991) CARBURETOR-612-Z Parts Diagram

Zero-Turn Mower, Drive Unit Only

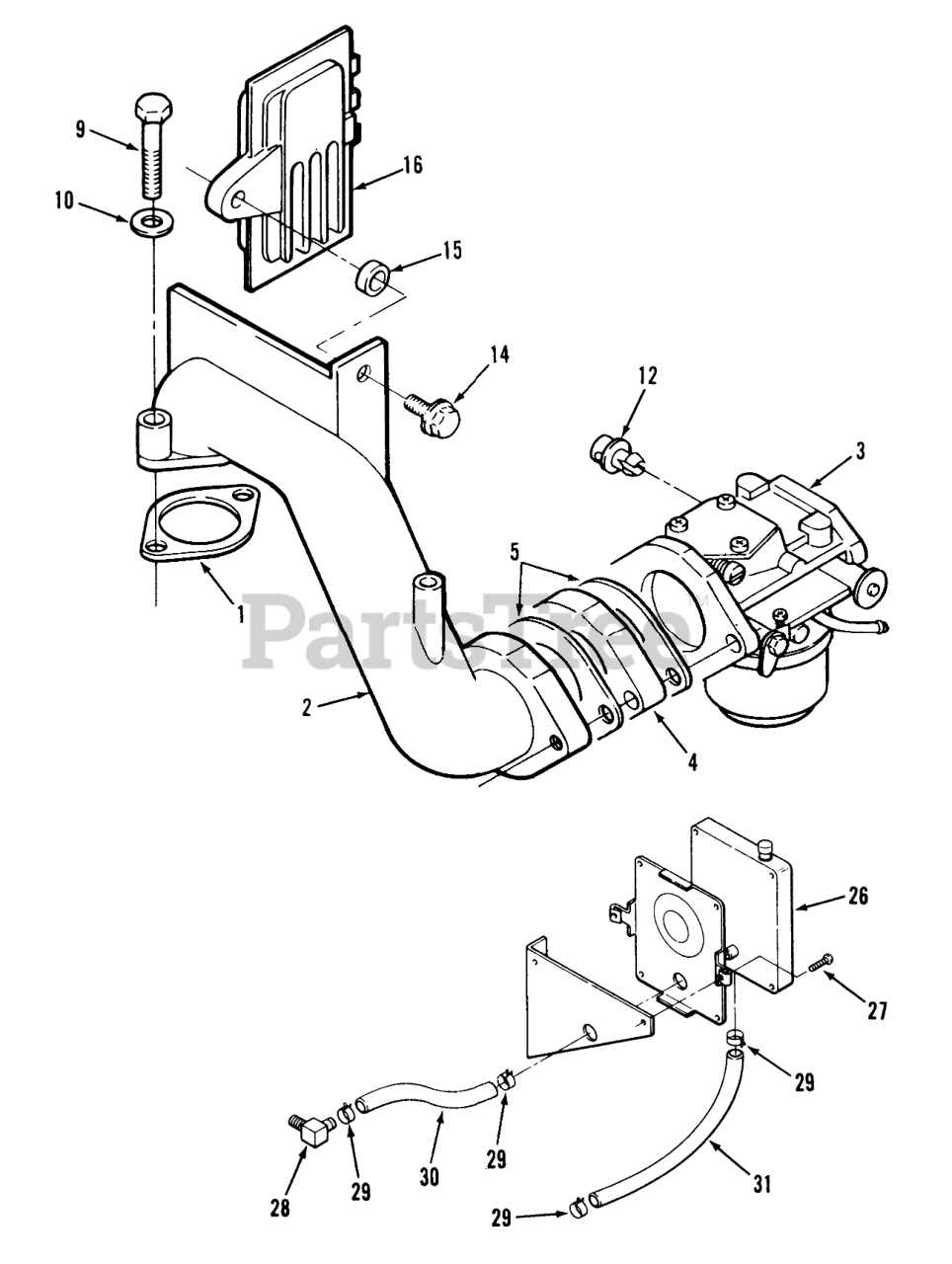

CARBURETOR-612-Z Parts Diagram

  • Title

1

Toro NN10666

Gasket
(Superseded to 93-9816)

$

$

Not available

2

Toro NN10818

Elbow-Intake
(Superseded to NN10667)

$

$

Not available

3

Toro NN10668

CARBURETOR

$501.99

$

Usually ships in 3-6 days

0

4

Toro NN10669

INSULATOR

$

$

Not available

5

Toro NN10670

Gasket
(Superseded to 93-9816)

$

$

Not available

9

Toro NN10671

HHCS-M8 X 50MM

$

$

Not available

10

Toro NN10543

Nut-M8
(Superseded to 82-1350)

$

$

Not available

12

Toro NN10674

Clip
(Superseded to 92-5920)

$

$

Not available

14

Toro NN10792

SCHWH 1/4-20X 7/8 SB

$

$

Not available

15

Toro NN10793

Bushing
(Superseded to 57-9120)

$8.49

$

Usually ships in 3-6 days

0

16

Toro NN10794

Regulator
(Superseded to 117-2742)

$256.99

$

In Stock, only 2 left!

0

26

Toro NN10786

PUMP-FUEL

$

$

Not available

27

Toro NN10787

STFHWH M4 X 4MM

$4.49

$

Usually ships in 3-6 days

0

28

Toro NN10788

Elbow 90deg. 1/8"
(Superseded to 59-0650)

$

$

Not available

29

Toro NN10789

Clamp
(Superseded to 82-1080)

$7.49

$

In Stock, only 3 left!

0

30

Toro NN10790

Hose
(Superseded to 92-5868)

$

$

Not available

31

Toro NN10791

Hose 5 1/2" x 1/4 ID

$

$

Not available
