Y1-16OEE4 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 020000001 - 029999999) (1992) WHEELS & TIRES ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

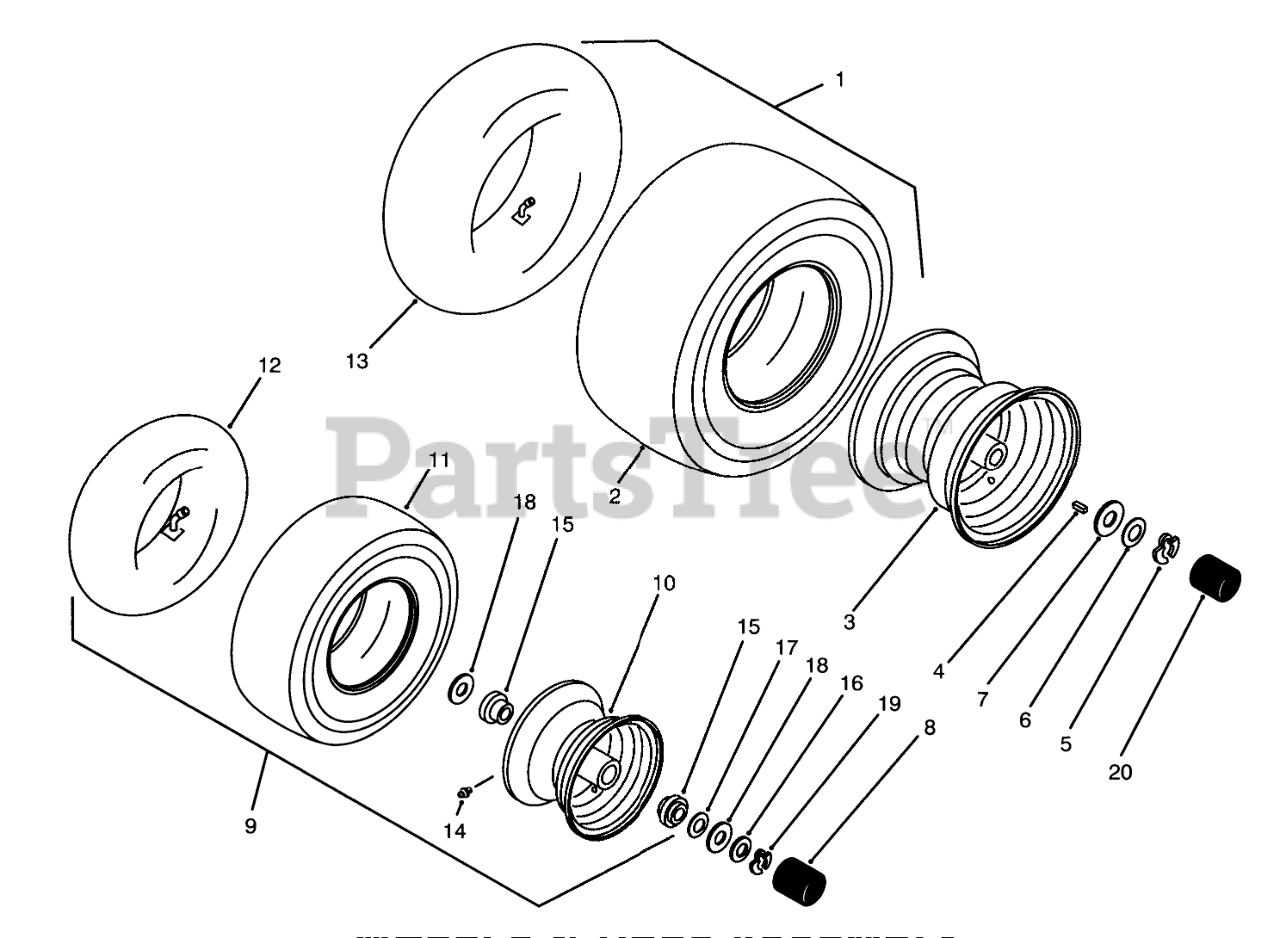

WHEELS & TIRES ASSEMBLY Parts Diagram

  • Title

1

Toro 117280

Rear Wheel Assembly 18 x 9.50 x 8 (Incl. Ref. #2, 3, & 13)
(Superseded to 99-5865)

$

$

Not available

2

Toro 116880

TIRE-18X9.50-8 TT RS

$

$

Not available

3

Toro 117281

WHEEL ASS'Y 8"X7

$

$

Not available

4

Toro 2590

Key
(Superseded to 5-1336)

$10.99

$

In Stock, Qty 5

0

5

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

6

Toro 920252

Washer
(Superseded to 9202524)

$1.99

$

Usually ships in 3-6 days

0

7

Toro 920251

USE 920251P WASHER

$3.49

$

In Stock, only 2 left!

0

8

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

9

Toro 117276

Front Wheel Assembly 11 x 4.00-5 (Incl. Ref. #10-12, 14 & 15)
(Superseded to 99-5864)

$

$

Not available

10

Toro 117278

Front Wheel Assembly (Incl. Ref. #14 & 15)

$

$

Not available

11

Toro 117391

TIRE 11 X 400-5 RIB

$

$

Not available

12

Toro 107963

TUBE-TIRE 11X4.00-5

$

$

Not available

13

Toro 106396

TUBE-TIRE

$41.99

$

Usually ships in 3-6 days

0

14

Toro 109500

ZERK-GREASE

$3.99

$

Usually ships in 3-6 days

0

15

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, only 3 left!

0

16

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

17

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 7

0

18

Toro 78-7410

WASHER-WHEEL

$3.99

$

Usually ships in 3-6 days

0

19

Toro 115882

KLIP-RING .75"

$

$

Not available

20

Toro 111951

HUBCAP

$16.99

$

In Stock, only 2 left!

0

Toro 5108

VALVE

Note: Not illustrated

$6.99

$

In Stock, Qty 16

0
