Y1-16OE04 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 020000001 - 029999999) (1992) FENDERS, FLOOR PAN & SEAT ASSEMBLY Parts Diagram

Zero-Turn Mower, Drive Unit Only

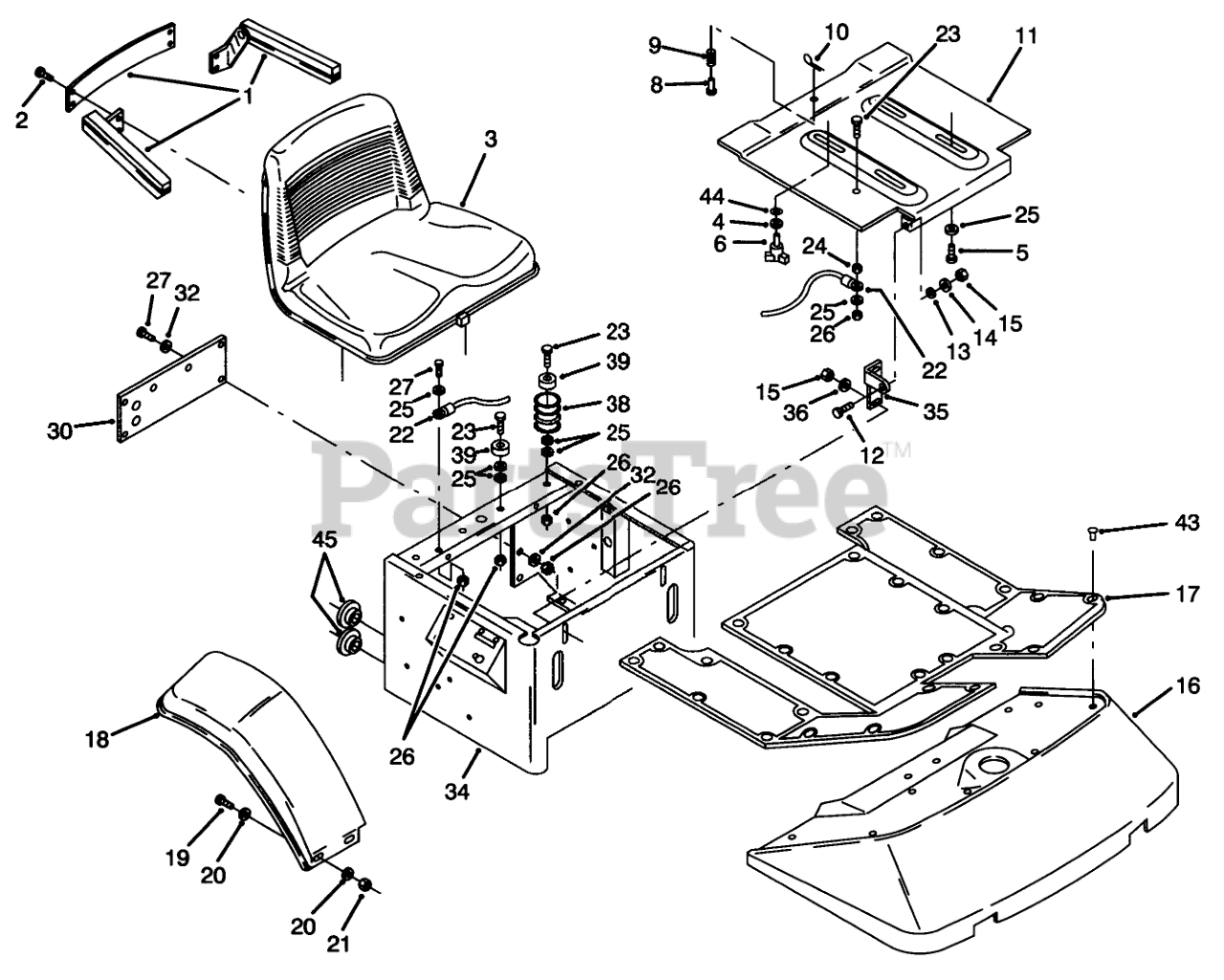

FENDERS, FLOOR PAN & SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 112293

KIT-ARMREST

$

$

Not available

2

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

3

Toro 79-3700

Seat
(Superseded to 79-3690)

$

$

Not available

Toro 79-3710

SEAT V-510

Note: Not illustrated

$

$

Not available

4

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

5

Toro 108686

BOLT 5/16-18X5/8

$8.99

$

Usually ships in 3-6 days

0

6

Toro 116819

KNOB

$

$

Not available

8

Toro 106449

PIN

$7.99

$

Usually ships in 3-6 days

0

9

Toro 116195

SPRING-COMPRESSION

$

$

Not available

10

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

11

Toro 116504

PLATE SEAT PIVOT R

$

$

Not available

12

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

13

Toro 104525

SPACER
(Superseded to 93-3658)

$9.99

$

Usually ships in 3-6 days

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 118940

Floor Pan
(Superseded to 118940-01)

$

$

Not available

17

Toro 116455

Black Mat

$

$

Not available

18

Toro 116064

Fender RH
(Superseded to 116064-01)

$

$

Not available

Toro 116065

Fender LH
(Superseded to 116065-01)

Note: Not illustrated

$226.99

$

Usually ships in 3-6 days

0

19

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

22

Toro 115850

Cable

$

$

Not available

23

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

25

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 79-2290

Cover

$

$

Currently unavailable

32

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

34

Toro 79-5960

SUPPORT-SEAT W A R

$783.99

$

Usually ships in 3-6 days

0

35

Toro 116572

Seat Pivot Bracket RH
(Superseded to 116572-01)

$

$

Not available

Toro 116573

Seat Pivot Bracket LH
(Superseded to 116573-01)

Note: Not illustrated

$

$

Not available

36

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

38

Toro 114268

Spring-620-Z

$

$

Not available

Toro 114496

SPRING

Note: Not illustrated

$

$

Not available

Toro 114269

Spring
(Superseded to 114497)

Note: Not illustrated

$62.99

$

Usually ships in 3-6 days

0

Toro 114497

SPRING-SEAT NYLON

Note: Not illustrated

$62.99

$

Usually ships in 3-6 days

0

39

Toro 108889

BUMPER

$24.99

$

Usually ships in 3-6 days

0

43

Toro 116456

RIVET .25 PLASTIC

$2.99

$

Usually ships in 3-6 days

0

44

Toro 78-2740

LOCKWASHER INT EXT

$

$

Not available

45

Toro 938037

BUSHING-NYLON 1.500

$3.99

$

Usually ships in 3-6 days

0
