Y1-16OE02 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (1990) COVERS & GOVERNOR LINKAGE-612-Z Parts Diagram

Zero-Turn Mower, Drive Unit Only

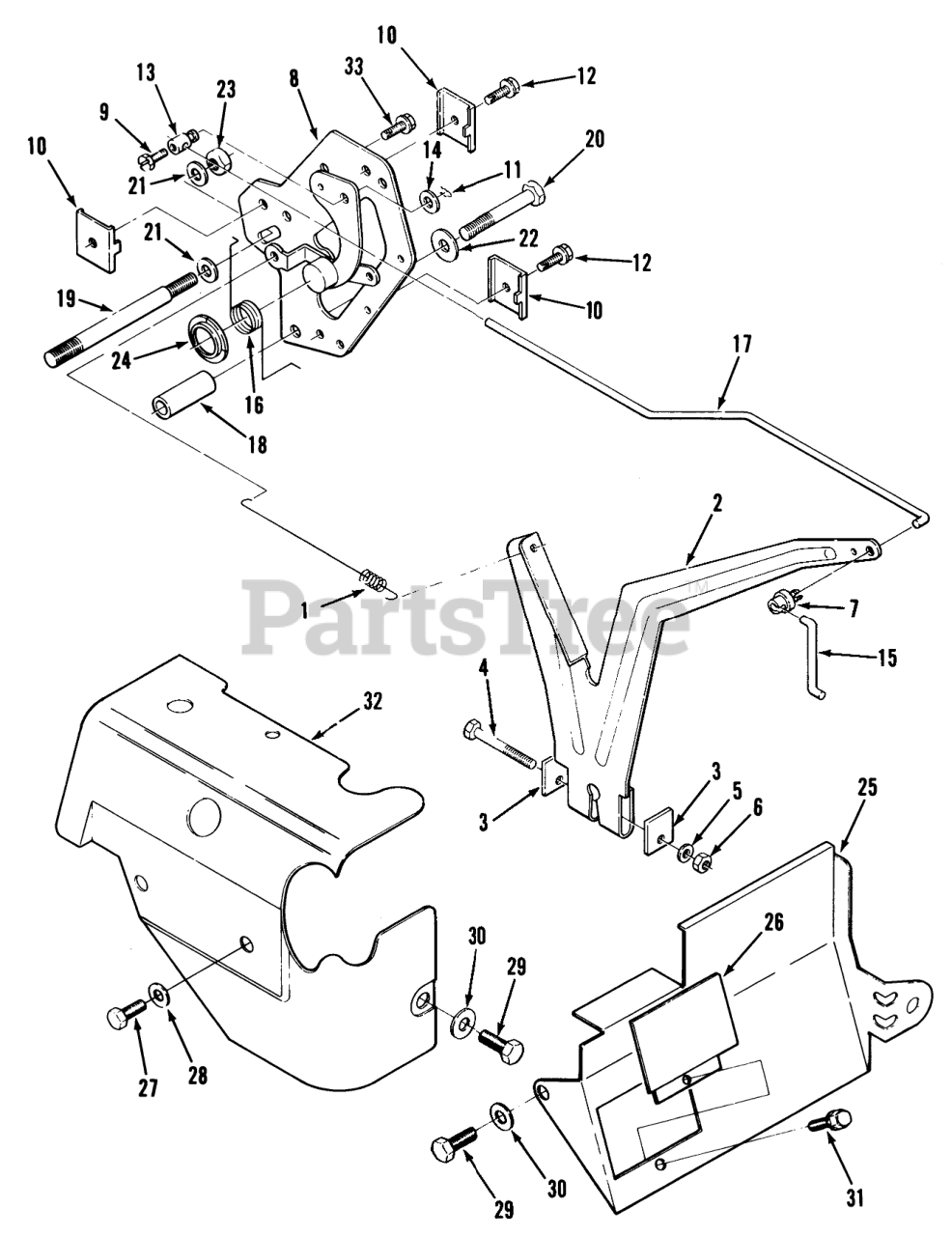

COVERS & GOVERNOR LINKAGE-612-Z Parts Diagram

  • Title
1

Toro NN10657

SPRING-GOVERNOR

$

$

Not available

2

Toro NN10647

LEVER-GOVERNOR

$

$

Not available

3

Toro NN10816

WASHER

$

$

Not available

4

Toro NN10648

HHCS-M8 X 35MM

$

$

Not available

5

Toro NN10740

WASHER

$

$

Not available

6

Toro NN10741

Nut
(Superseded to 92-5935)

$

$

Not available

7

Toro NN10674

Clip
(Superseded to 92-5920)

$

$

Not available

8

Toro NN10782

Throttle Plate Assembly (Includes Control & Choke Levers, Pivot Pin, and Flat Washers)
(Superseded to NN10651)

$

$

Not available

9

Toro NN10652

HHMS #8-32X3/8"

$

$

Not available

10

Toro NN10783

CLAMP-CONTROL

$

$

Not available

11

Toro NN10333

Cotler Pin
(Superseded to 59-0720)

$

$

Not available

12

Toro NN10784

Bolt
(Superseded to 72-3900)

$

$

Not available

13

Toro NN10656

SWIVEL-CHOKE LEVER

$

$

Not available

14

Toro NN10364

Washer
(Superseded to 59-0850)

$

$

Not available

15

Toro NN10658

LINK-THROTTLE

$

$

Not available

16

Toro NN10654

SPRING-CHOKE LINKAGE

$

$

Not available

17

Toro NN10659

LINK-CHOKE

$

$

Not available

18

Toro NN10660

SPACER

$

$

Not available

19

$

$

Not available

20

Toro NN10817

SCREW

$

$

Not available

21

Toro NN10542

Washer
(Superseded to 82-1340)

$

$

Not available

22

Toro NN10543

Nut-M8
(Superseded to 82-1350)

$

$

Not available

23

Toro NN10663

NUT-HEX M6

$

$

Not available

24

Toro NN10664

RING-RETAINER

$

$

Not available

25

Toro NN10801

DEFLECTOR-AIR

$

$

Not available

26

Toro NN10802

CVR-VOLT REGULATOR

$

$

Not available

27

Toro NN10726

HHCS-M8 X 10MM

$

$

Not available

28

Toro NN10542

Washer
(Superseded to 82-1340)

$

$

Not available

29

Toro NN10726

HHCS-M8 X 10MM

$

$

Not available

Toro NN10727

HHCS-M8 X 16MM

$

$

Not available

30

Toro NN10543

Nut-M8
(Superseded to 82-1350)

$

$

Not available

31

Toro NN10414

Bolt
(Superseded to 59-1080)

$

$

Not available

32

Toro NN10800

Housing
(Superseded to NN10722)

$

$

Not available

33

Toro NN10785

STFHWH 12-24 X 1"

$

$

Not available
