Y1-16OE02 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (1990) CARBURETOR AND INTAKE MANIFOLD-616-Z Parts Diagram

Zero-Turn Mower, Drive Unit Only

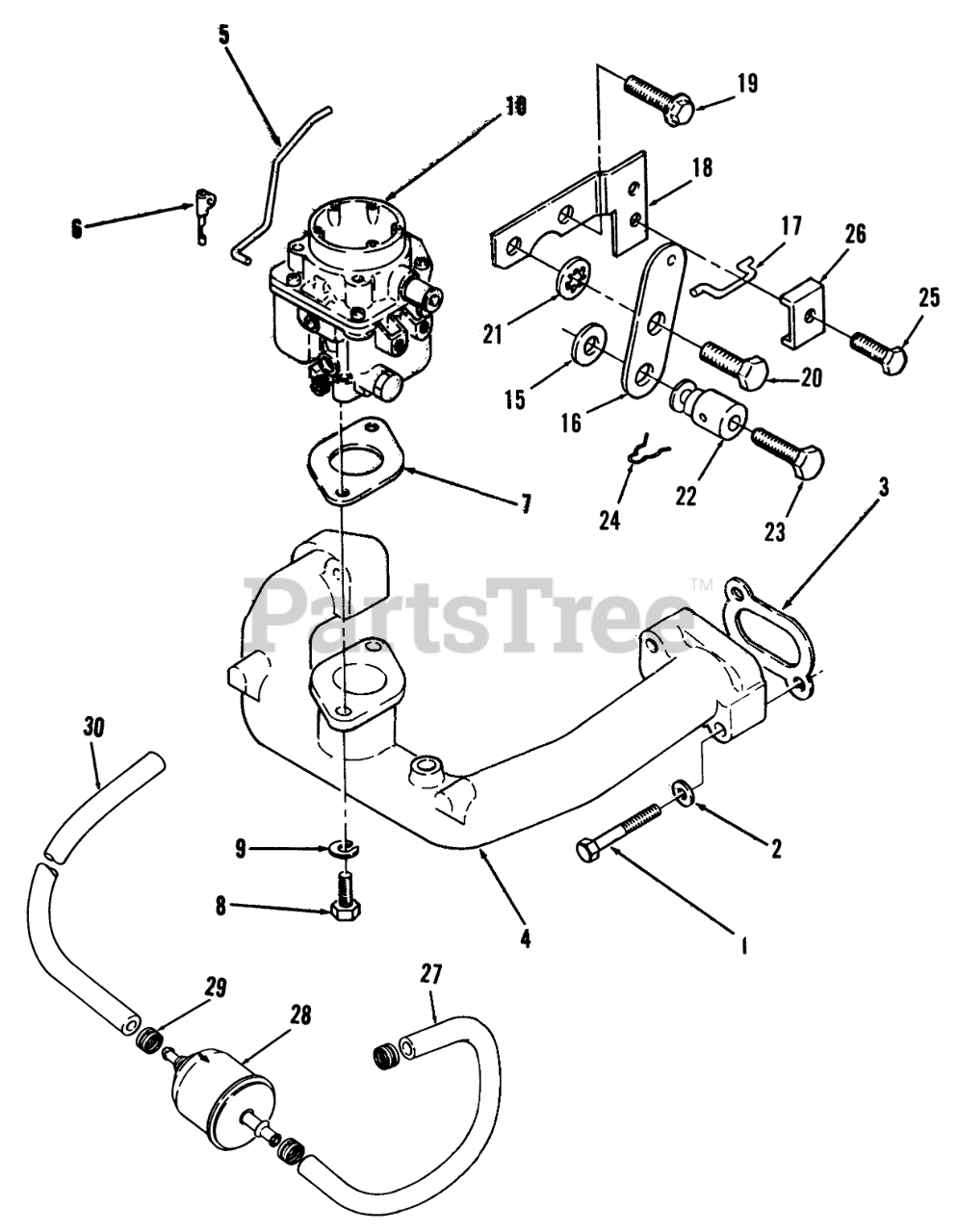

CARBURETOR AND INTAKE MANIFOLD-616-Z Parts Diagram

  • Title

1

Toro NN10375

HHCS

$

$

Not available

2

Toro NN10542

Washer
(Superseded to 82-1340)

$

$

Not available

3

Toro NN10550

Gasket
(Superseded to 71-5980)

$14.99

$

In Stock, only 3 left!

0

4

Toro NN10514

INTAKE-MANIFOLD

$

$

Not available

5

Toro NN10509

GOVERNOR-CONTROL ROD

$

$

Not available

6

Toro NN10538

CONTROL-ROD CLIP

$

$

Not available

7

Toro NN10235

Gasket
(Superseded to 82-0850)

$12.99

$

In Stock, only 1 left!

0

8

Toro NN10544

HEX-HEAD CAP SCREW

$

$

Not available

9

Toro NN10420

Washer
(Superseded to 82-1630)

$

$

Not available

10

Toro NN10504

COMPLETE-CARBURETOR

$

$

Not available

15

Toro NN10364

Washer
(Superseded to 59-0850)

$

$

Not available

16

Toro NN10233

Lever
(Superseded to 59-0460)

$

$

Not available

17

Toro NN10231

Link
(Superseded to 57-9180)

$

$

Not available

18

Toro NN10513

Bracket
(Superseded to 59-0470)

$

$

Not available

19

Toro NN10412

Bolt
(Superseded to 72-3880)

$

$

Not available

20

Toro NN10400

Bolt
(Superseded to 59-1020)

$

$

Not available

21

Toro NN10424

Lockwasher
(Superseded to 82-1660)

$

$

Not available

22

Toro NN10230

Swivel
(Superseded to 57-9170)

$

$

Not available

23

Toro NN10410

Bolt
(Superseded to 72-3890)

$

$

Not available

24

Toro NN10333

Cotler Pin
(Superseded to 59-0720)

$

$

Not available

25

Toro NN10395

Bolt
(Superseded to 72-3900)

$

$

Not available

26

Toro NN10232

Clamp
(Superseded to 57-9190)

$

$

Not available

27

Toro NN10527

Hose
(Superseded to 82-1100)

$

$

Not available

28

Toro NN10466

Filter-Fuel
(Superseded to 71-5960)

$32.99

$

In Stock, Qty 6

0

29

Toro NN10789

Clamp
(Superseded to 82-1080)

$7.49

$

In Stock, only 3 left!

0

30

Toro NN10302

Hose
(Superseded to 71-6100)

$11.99

$

Usually ships in 3-6 days

0

Toro NN10865

SPRING

Note: Not illustrated

$

$

Not available
