Y1-16OE01 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (1989) SECTION 9-OIL FILTER Parts Diagram

Zero-Turn Mower, Drive Unit Only

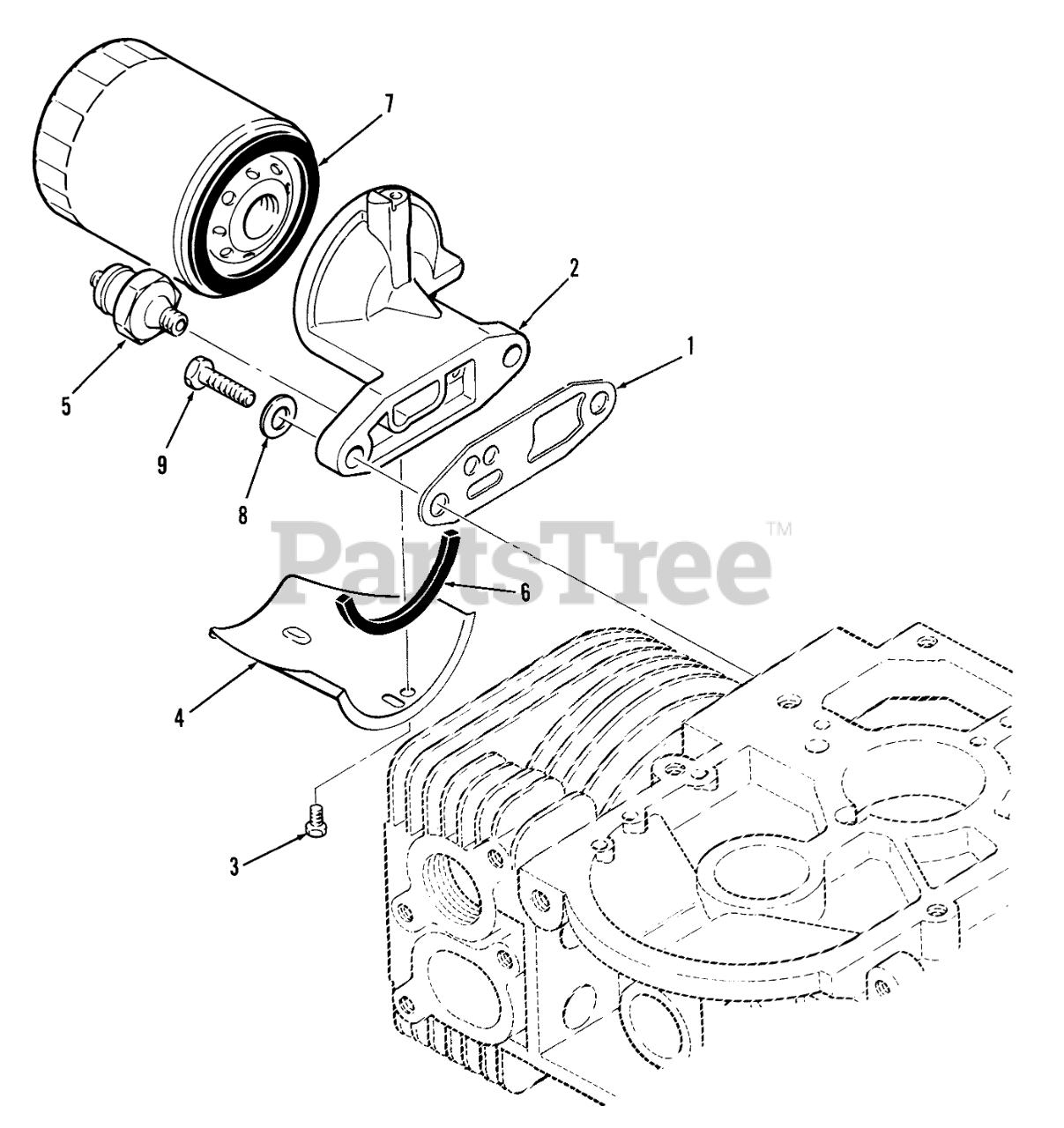

SECTION 9-OIL FILTER Parts Diagram

  • Title
1

Toro NN10486

Gasket
(Superseded to 82-0520)

$

$

Not available

2

Toro NN10141

Adapter
(Superseded to 82-0500)

$

$

Not available

3

Toro NN10391

Bolt
(Superseded to 82-1510)

$

$

Not available

4

Toro NN10487

OIL-DRAIN

$

$

Not available

5

Toro NN10520

OIL-PRESSURE SWITCH

$

$

Not available

6

Toro NN10488

OIL-DRAIN SEAL

$

$

Not available

7

Toro NN10147

Oil Filter
(Superseded to 108-3817)

$10.99

$

In Stock, only 3 left!

0

8

Toro NN10360

Washer
(Superseded to 57-9750)

$

$

Not available

9

Toro NN10373

HHCS 5/16-18 X 1

$

$

Not available
