Y1-16OE01 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (1989) SECTION 9-ENGINE AND FUEL SYSTEMS Parts Diagram

Zero-Turn Mower, Drive Unit Only

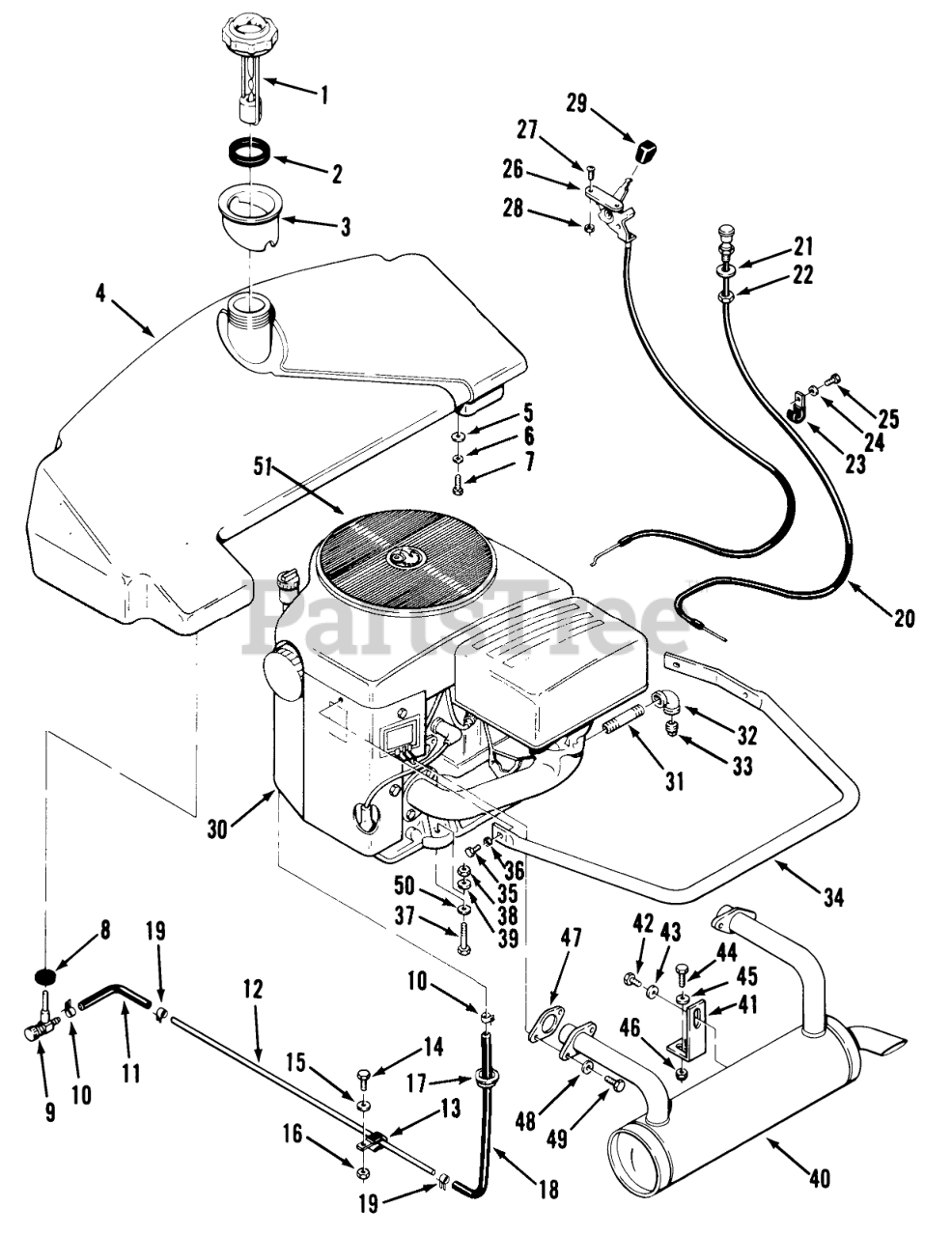

SECTION 9-ENGINE AND FUEL SYSTEMS Parts Diagram

  • Title

1

Toro 116336

ASSY-FUEL CAP & GAGE

$

$

Not available

2

Toro 106931

GASKET-GAS CAP

$

$

Not available

3

Toro 115741

FUNNEL-FUEL TANK

$

$

Not available

4

Toro 116363

TANK-FUEL ASS'Y

$470.99

$

Usually ships in 3-6 days

0

5

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

6

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

7

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

8

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

9

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, only 1 left!

0

10

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

11

Toro 111914

Hose5"
(Superseded to 109-0678)

$5.49

$

Usually ships in 3-6 days

0

12

Toro 115780

TUBE FUEL LINE

$58.99

$

Usually ships in 3-6 days

0

13

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

14

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

15

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

16

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

17

Toro 938031

BUSHING-NYLON 1.093

$0.99

$

Usually ships in 3-6 days

0

18

Toro 115781

Fuel Hose 18"
(Superseded to 100061)

$

$

Not available

19

Toro 117412

CLAMP HOSE .5 IN

$

$

Not available

20

Toro 116289

CONTROL-CHOKE

$94.99

$

Usually ships in 3-6 days

0

21

Toro 920237

Washer
(Superseded to 9202374)

$0.99

$

Usually ships in 3-6 days

0

22

Toro 109530

NUT-HEX PALNUT

$0.99

$

In Stock, only 4 left!

0

23

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

24

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

25

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 3 left!

0

26

Toro 116266

CONTROL-THROTTLE

$122.99

$

Usually ships in 3-6 days

0

27

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

28

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

29

Toro 116454

KNOB-CONTROL
(Superseded to 66-0120)

$5.99

$

In Stock, only 2 left!

0

30

Toro 115288

Engine-16 HP Onan (P216V-I0873A)

$

$

Not available

31

Toro 116159

NIPPLE-3/8 X 2.5

$

$

Not available

32

Toro 114764

ELBOW 3/8 90 DEG

$17.99

$

In Stock, only 1 left!

0

33

Toro 943420

Plug
(Superseded to 281-2)

$2.49

$

Usually ships in 3-6 days

0

34

Toro 116708

GUARD-AIR CLEANER

$187.99

$

Usually ships in 3-6 days

0

35

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

36

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

37

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

38

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

39

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

40

Toro 116030

EXHAUST-MUFFLER

$798.99

$

Usually ships in 3-6 days

0

41

Toro 116029

BRACKET-MUFFLER

$

$

Not available

42

Toro 908015

H H C S
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

43

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

44

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

45

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

46

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

47

Toro 114214

Exhaust Gasket
(Superseded to 57-9210)

$17.99

$

In Stock, Qty 6

0

48

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

49

Toro 911067

SHCS 5/16-18X.750

$

$

Not available

50

Toro 116531

WASHER

$

$

Not available

51

Toro NN10551

Guard
(Superseded to 82-0620)

$140.99

$

Usually ships in 3-6 days

0
