Y1-16OE01 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (1989) SECTION 10-COVERS, FUEL PUMP, COIL, REGULATOR & GOVERNOR LINKAGE Parts Diagram

Zero-Turn Mower, Drive Unit Only

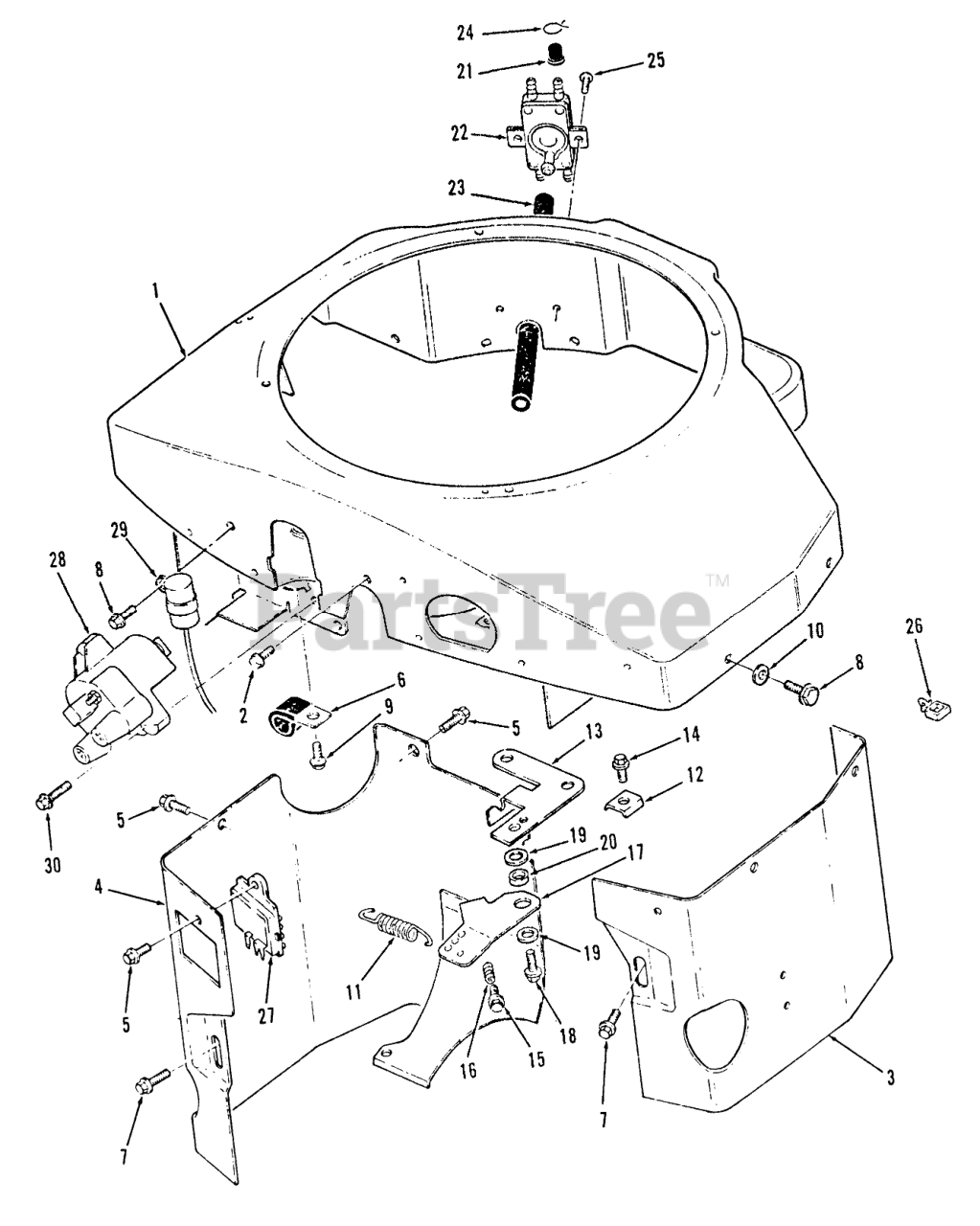

SECTION 10-COVERS, FUEL PUMP, COIL, REGULATOR & GOVERNOR LINKAGE Parts Diagram

  • Title
1

Toro NN10497

Blower Housing
(Superseded to NN10862)

$

$

Not available

2

Toro NN10392

Bolt
(Superseded to 59-0970)

$

$

Not available

3

Toro NN10169

Cylinder Air Housing
(Superseded to 92-0921)

$

$

Not available

4

Toro NN10170

CYLINDER AIR HSG L H

$

$

Not available

5

Toro NN10414

Bolt
(Superseded to 59-1080)

$

$

Not available

6

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

7

Toro NN10417

Bolt
(Superseded to 82-1600)

$

$

Not available

8

Toro NN10393

Bolt
(Superseded to 59-0980)

$

$

Not available

9

Toro NN10399

Bolt
(Superseded to 82-1540)

$

$

Not available

10

Toro NN10356

Washer
(Superseded to 59-0820)

$

$

Not available

11

Toro NN10217

Spring
(Superseded to 57-9100)

$

$

Not available

12

Toro NN10232

Clamp
(Superseded to 57-9190)

$

$

Not available

13

Toro NN10508

Bracket
(Superseded to 57-9150)

$

$

Not available

14

Toro NN10395

Bolt
(Superseded to 72-3900)

$

$

Not available

15

Toro NN10401

Bolt
(Superseded to 59-1030)

$

$

Not available

16

Toro NN10219

Spring
(Superseded to 59-0430)

$

$

Not available

17

Toro NN10507

Arm
(Superseded to 57-9140)

$

$

Not available

18

Toro NN10397

Bolt
(Superseded to 59-1010)

$

$

Not available

19

Toro NN10357

Screw
(Superseded to 59-0830)

$

$

Not available

20

Toro NN10218

Bushing
(Superseded to 57-9120)

$

$

Not available

21

Toro NN10211

Cap
(Superseded to 59-0370)

$

$

Not available

22

Toro NN10505

FUEL-PUMP

$

$

Not available

23

Toro NN10526

Hose 11"
(Superseded to 71-6100)

$11.99

$

Usually ships in 3-6 days

0

24

Toro NN10303

Clamp
(Superseded to 82-1080)

$7.49

$

In Stock, only 3 left!

0

25

Toro NN10403

Screw
(Superseded to 59-1050)

$

$

Not available

26

Toro NN10522

Clip
(Superseded to 71-6060)

$

$

Not available

27

Toro NN10261

Regulator
(Superseded to 117-2742)

$271.99

$

In Stock, only 2 left!

0

28

Toro NN10245

Coil-Ignition
(Superseded to 71-6000)

$

$

Not available

29

Toro NN10276

Condenser
(Superseded to 59-1180)

$42.99

$

In Stock, only 1 left!

0

30

Toro NN10408

Bolt
(Superseded to 71-6460)

$

$

Not available
