Y1-12OE02 (612-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 010000001 - 019999999) (1991) STARTER-616-Z, 620-Z Parts Diagram

Zero-Turn Mower, Drive Unit Only

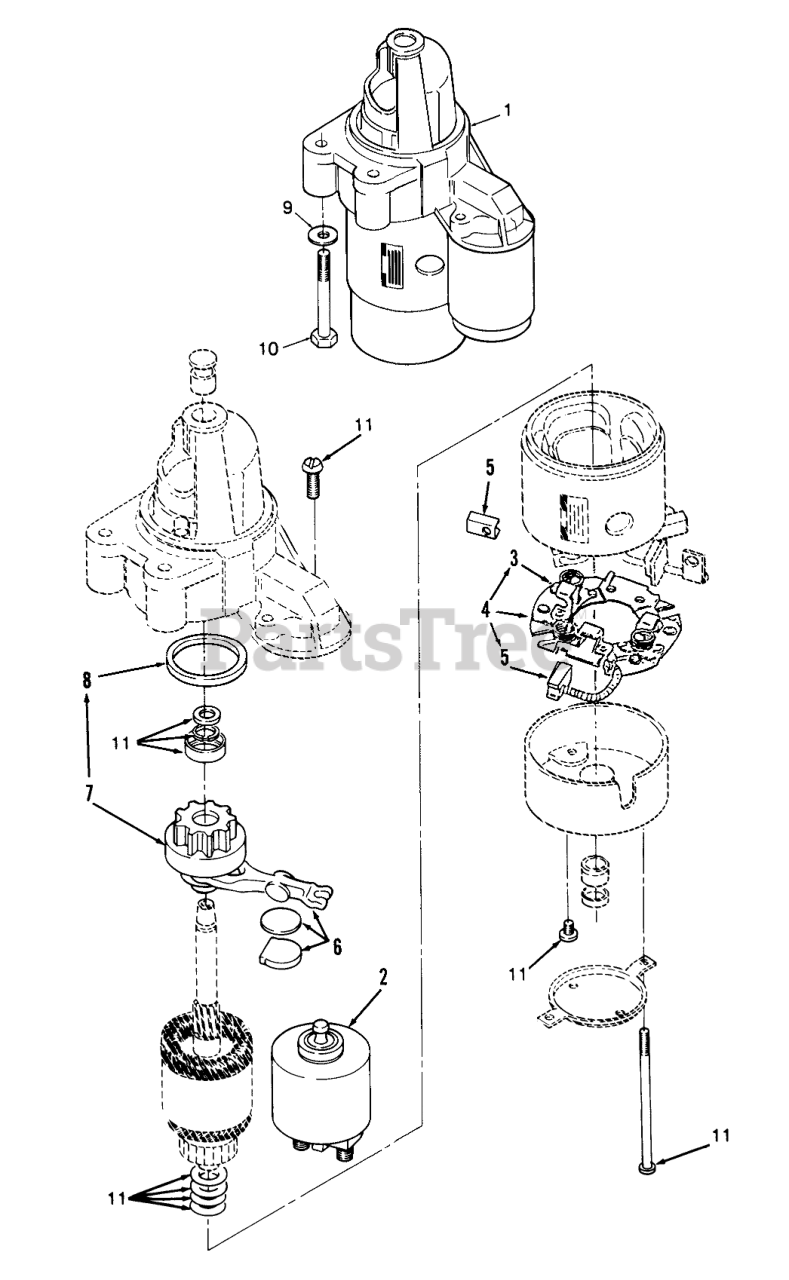

STARTER-616-Z, 620-Z Parts Diagram

  • Title

1

Toro NN10519

Starter Assy
(Superseded to NN10889)

$

$

Not available

2

Toro NN10269

Starter Solenoid kit (Includes Solenoid, Spring and Plunger)
(Superseded to 72-3930)

$

$

Not available

3

Toro 79-6300

SPRING-BRUSH

$

$

Not available

4

Toro 62-2750

Brush Holder (Includes Brush Holder w/ Negative Brush)
(Superseded to 62-2740)

$

$

Not available

5

Toro 62-2740

Brush kit (Includes Positive Brush (2) and Negative Brush w/ Pigtail)

$

$

Not available

6

Toro 62-2770

Starter Shift Lever Kit (Includes Shift Lever Wear Plate and Rubber Plug)

$

$

Not available

7

Toro 72-3940

Starter Clutch (Includes Pinion Gear w/ Clutch)

$

$

Not available

8

Toro 72-3950

Dust Seal
(Superseded to NN10886)

$

$

Not available

9

Toro 57-9770

WASHER

$

$

Not available

10

Toro NN10376

Bolt
(Superseded to 322-22)

$0.99

$

In Stock, Qty 20+

0

11

Toro NN10265

Hardware Kit (Includes Solenoid Screws (2), Brush Holder Screws (2 Thru Bolts (2), Armature Shims (2), Pinion Stop Collar and Pinion Retaining Ring)
(Superseded to 62-2760)

$

$

Not available
