Y1-12OE01 (612-Z) - Toro Zero-Turn Mower, Drive Unit Only (1990) AIR CLEANER-612-Z Parts Diagram

Zero-Turn Mower, Drive Unit Only

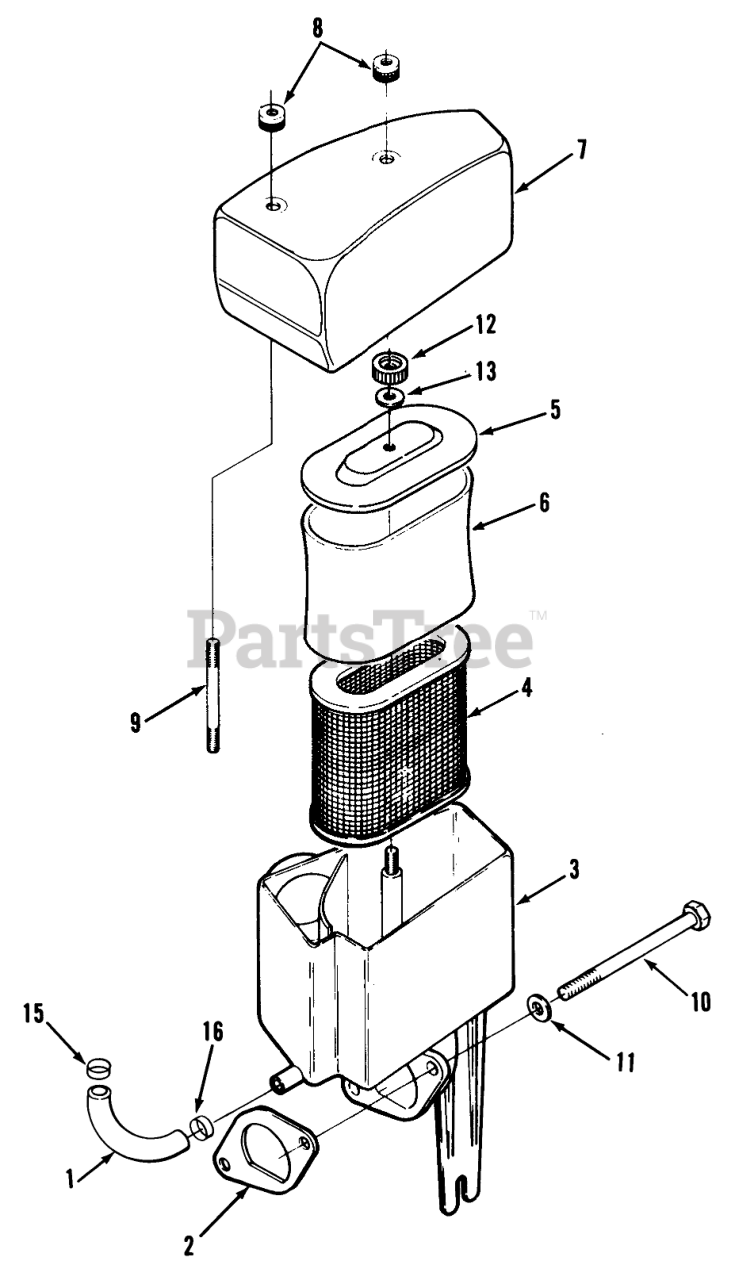

AIR CLEANER-612-Z Parts Diagram

  • Title

1

Toro NN10796

HOSE-BREATHER

$

$

Not available

2

Toro NN10694

Gasket
(Superseded to 93-9816)

$

$

Not available

3

Toro NN10872

AIR CLEANER ELEMENT

$41.99

$

In Stock, only 1 left!

0

4

Toro NN10695

Adapter
(Superseded to NN10899)

$

$

Not available

5

Toro NN10697

COVER-ELEMENT

$

$

Not available

6

Toro NN10698

WRAPPER-ELEMENT

$19.99

$

In Stock, only 2 left!

0

7

Toro NN10799

COVER-AIR CLEANER

$

$

Not available

8

Toro NN10700

KNOB M6

$

$

Not available

9

Toro NN10701

STUD

$

$

Not available

10

Toro NN10702

HHCS-M8 X 100MM

$11.99

$

Usually ships in 3-6 days

0

11

Toro NN10543

Nut-M8
(Superseded to 82-1350)

$

$

Not available

12

Toro NN10703

KNOB

$

$

Not available

13

Toro NN10704

GROMMET

$

$

Not available

15

Toro NN10812

CLAMP-HOSE

$

$

Not available

16

Toro NN10795

CLAMP-HOSE

$5.49

$

Usually ships in 3-6 days

0
