Y RT9 C - Electrolux/AYP Tiller (1999) MAINFRAME, RIGHT SIDE Parts Diagram

Tiller

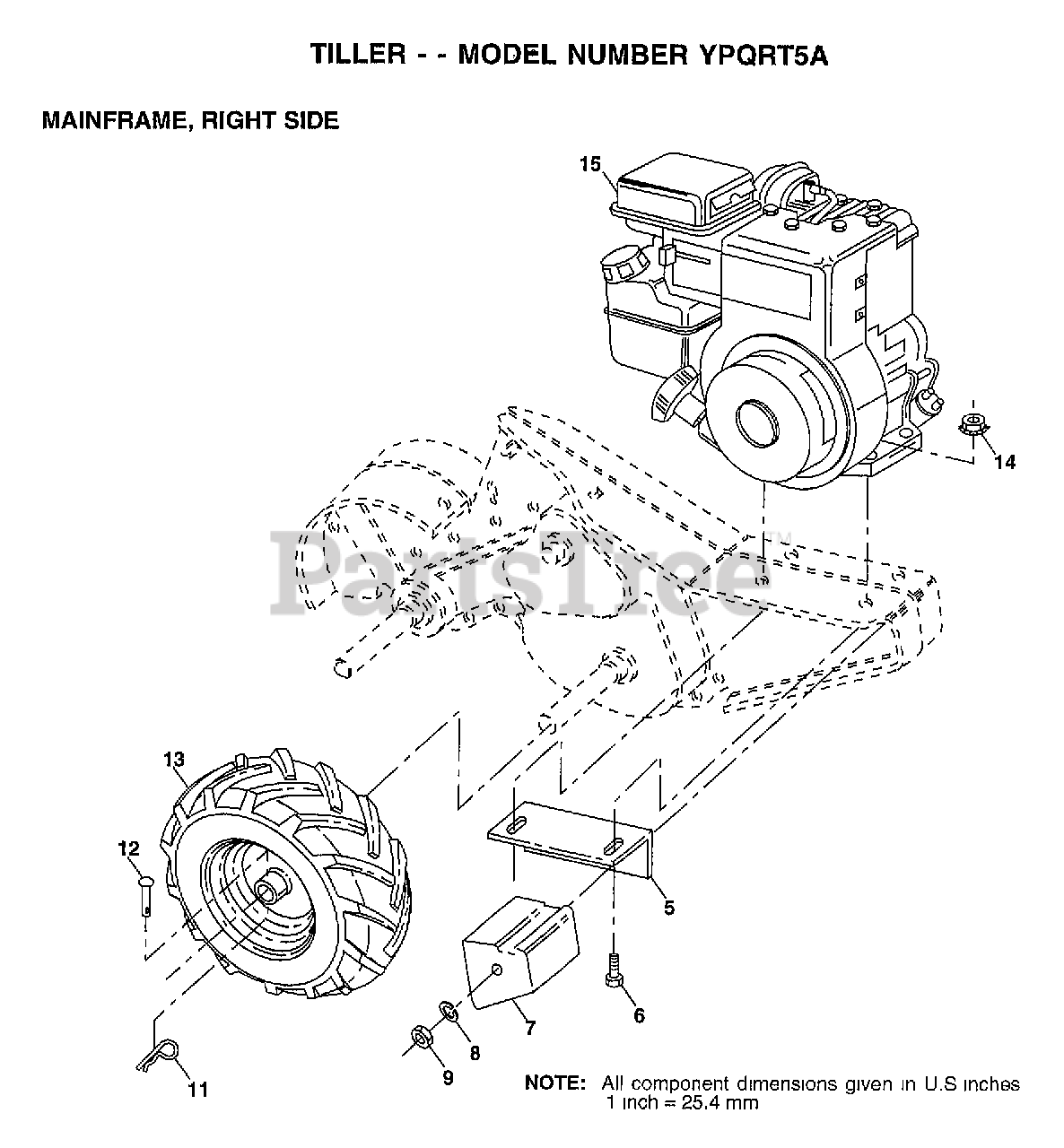

MAINFRAME, RIGHT SIDE Parts Diagram

  • Title
1

Electrolux/AYP 102332X

BRACKET RH CRT
(Superseded to 532102332)

$

$

Not available

6

Electrolux/AYP 74760524

BOLT.HEX.5/16-1.5

$2.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 102173X

COUNTERWEIGHT CRT
(Superseded to 532102173)

$42.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

11

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

12

Electrolux/AYP 126875X

RIVET.DRILL.1.75
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

13

Electrolux/AYP 102190X

TIRE.CHV.13X5.0-6
(Superseded to 532102190)

$93.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 150750

SUB= 150750X427

$

$

Not available

13

Electrolux/AYP 795R

SUB= 65139

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP SUPPLIER

CHECK WITH SUPPLIER

$

$

Not available
