Y GTB 18546 A - Electrolux/AYP Garden Tractor (1999) CHASSIS AND ENCLOSURES Parts Diagram

Garden Tractor

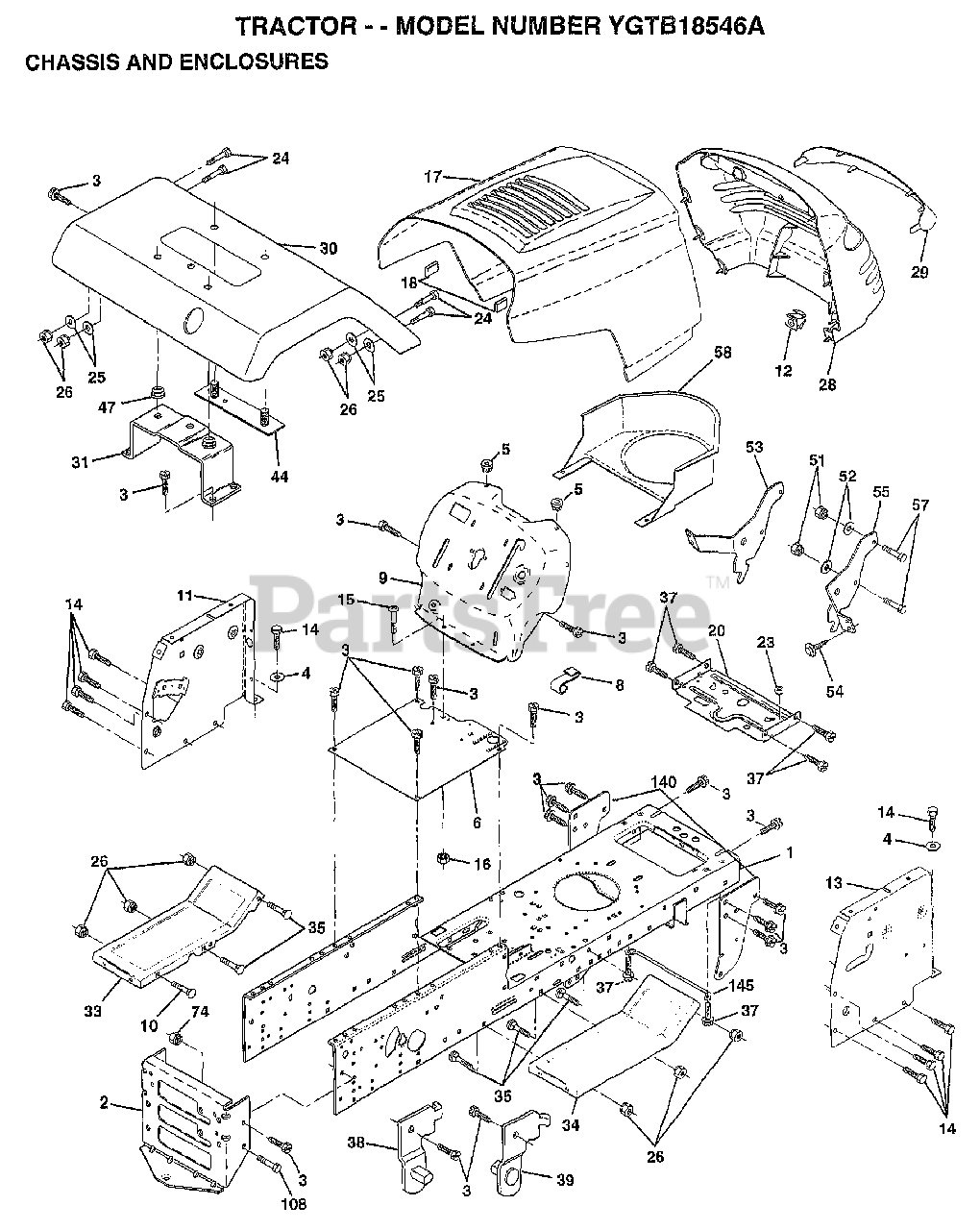

CHASSIS AND ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 165480

CHASSIS.STAMPING

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 19131216

WASHER
(Superseded to 819131216)

$

$

Not available

5

Electrolux/AYP 155272

BUMPER-HOOD/DASH
(Superseded to 532155272)

$7.49

$

In Stock, only 3 left!

0

6

Electrolux/AYP 155923

SADDLE
(Superseded to 532155923)

$14.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 154587X011

DASH.PANEL.ASSY

$17.99

$

Usually ships in 3-10 days

0

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 156682

PANEL ASM DASH LH

$

$

Not available

12

Electrolux/AYP 145660

CLIP.TINNERMAN
(Superseded to 532145660)

$3.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 157230

PANEL DASH RH

$

$

Not available

14

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 159639X428

"HOOD W/TRIM,MS428"
(Superseded to 532182408)

$80.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 126938X

SUB= 532126938
(Superseded to 532126938)

$

$

Not available

20

Electrolux/AYP 156347

"STRAP-TORQUE,RH"

$2.99

$

Usually ships in 3-10 days

0

23

Murray 124028X

SUB= 532124028

$

$

Not available

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 157428

GRILL
(Superseded to 532179844)

$

$

Not available

29

Electrolux/AYP 146654X599

GRILLE.LENS
(Superseded to 532146654)

$

$

Not available

30

Electrolux/AYP 140002X428

"FENDER WS,FTK"
(Superseded to 167270X428)

$

$

Not available

31

Electrolux/AYP 137113

BRKT.ASM.FENDER
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 145244X428

FOOTREST PNT LH
(Superseded to 532182507)

$43.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 145243X428

FOOTREST.RH.LT/GT
(Superseded to 532182508)

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

37

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

43

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

44

Electrolux/AYP 140675

STRAP ASM FENDER
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 147717

BEZEL.ASM.
(Superseded to 583678801)

$

$

Not available

47

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 145205

DASH.SUPT.YP/HUSQ
(Superseded to 532145205)

$

$

Not available

51

Electrolux/AYP 73800400

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 144697

BRACKET.GRILLE.LH
(Superseded to 532144697)

$

$

Not available

54

Electrolux/AYP 161464

SCREW.HEX.WS.HD
(Superseded to 532161464)

$

$

Not available

55

Electrolux/AYP 144696

BRACKET.GRILLE.RH
(Superseded to 532144696)

$

$

Not available

56

Electrolux/AYP 150271

EXT DASH LTYT

$3.49

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

58

Electrolux/AYP 140547

DUCT.AIR.B&S.18HP
(Superseded to 532140547)

$11.99

$

Usually ships in 3-10 days

0

59

$

$

Not available

64

Electrolux/AYP 150272

DASH.LOWER.LT
(Superseded to 583037501)

$21.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 156286X010

"PLATE DASH,SLKSCR"

$3.49

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

72

$

$

Not available

74

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 74191008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 2029J

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

80

Electrolux/AYP 109808X

HOOD LATCH T
(Superseded to 532109808)

$6.99

$

In Stock, Qty 14

0

82

Electrolux/AYP 74981020

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

83

Electrolux/AYP 7206J

SPACER LT
(Superseded to 532007206)

$7.49

$

In Stock, Qty 6

0

$2.49

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 150303X428

"PANEL ASM SIDE,RH"
(Superseded to 167237X428)

$

$

Not available

87

Electrolux/AYP 150302X428

"PANEL ASM-SIDE,LH"

$

$

Not available

90

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

92

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

108

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

135

Electrolux/AYP 74291006

SCREW.10-24X3/8.
(Superseded to 874291006)

$2.99

$

Usually ships in 3-10 days

0

136

Electrolux/AYP 60867

ACORN NUT RB
(Superseded to 532060867)

$4.99

$

In Stock, Qty 20+

0

137

Electrolux/AYP 110356X

SNAP CAP LT
(Superseded to 532110356)

$3.99

$

Usually ships in 3-10 days

0

138

Electrolux/AYP 110357X

WASHER LT
(Superseded to 532110357)

$

$

Not available

139

Electrolux/AYP 150195

BKT.SPT.HOOD/PANL
(Superseded to 532150195)

$

$

Not available

140

Electrolux/AYP 158418

BRKT SUSPENSION
(Superseded to 532158418)

$

$

Not available

145

Electrolux/AYP 156524

"ROD POVOT,CHASSIS"
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

152

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

Electrolux/AYP 8022J

PLUG-DASH T
(Superseded to 532125085)

$

$

Not available
