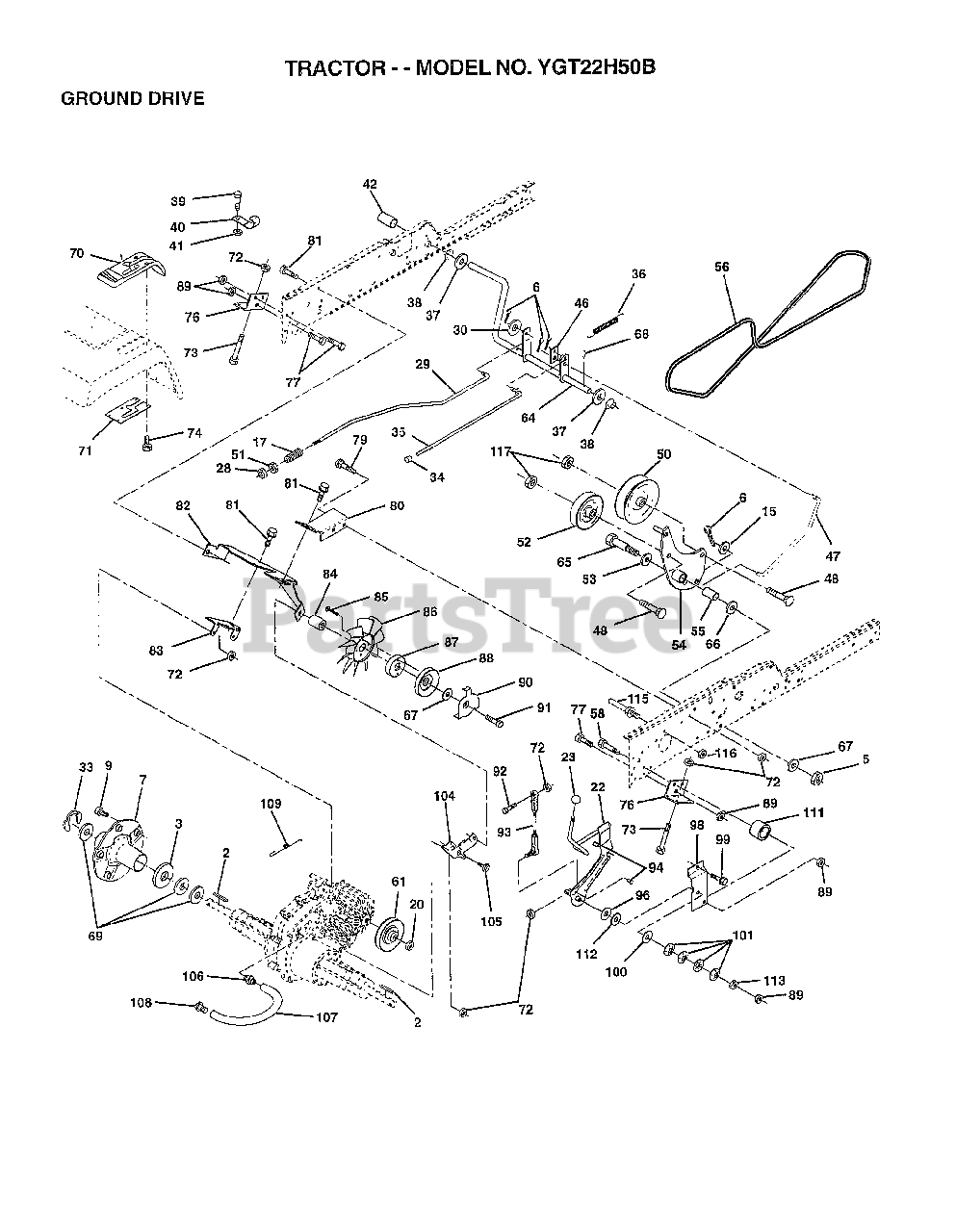

Y GT 22H50 B - Electrolux/AYP Garden Tractor (1998) GROUND DRIVE Parts Diagram

Garden Tractor

GROUND DRIVE Parts Diagram

  • Title
2

Electrolux/AYP 7070E

KEY 1/4 X 2.5
(Superseded to 532007070)

$6.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 7563R

WASHER T
(Superseded to 532007563)

$8.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 140507

HUB WHEEL ASM
(Superseded to 532140507)

$182.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 140080

BOLT.HUB.WHL.REAR
(Superseded to 532140080)

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 140921

SPRING ROD BRAKE
(Superseded to 532140921)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 73940800

SUB= 73360800
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

22

Electrolux/AYP 156103

ARM ASM SHIFT
(Superseded to 532156103)

$

$

Not available

23

Electrolux/AYP 140845

KNOB DLX BLK/BLK
(Superseded to 532140845)

$13.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

29

Electrolux/AYP 140494

ROD BRAKE
(Superseded to 532140494)

$11.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 19131616

WASHER HYT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 12000053

E RING HYT
(Superseded to 812000053)

$7.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 137648

ROD BRAKE PART GT
(Superseded to 532137648)

$11.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 149412

SPRING.GRND.DRIVE
(Superseded to 532149412)

$

$

Not available

37

CHECK WITH SUPPLIER

$

$

Not available

38

Electrolux/AYP 150035

BUSHING.NYLINER
(Superseded to 532150035)

$4.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 74321016

SCREW
(Superseded to 874321016)

$

$

Not available

40

Electrolux/AYP 5304J

ACT-SWITCH T
(Superseded to 532178575)

$

$

Not available

41

$

$

Not available

42

Electrolux/AYP 123533X

"COVER,PEDAL"
(Superseded to 532123533)

$6.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 145170

RETAINER.SPRING
(Superseded to 532145170)

$4.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 138228

ROD.CLUTCH
(Superseded to 532138228)

$12.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 72110612

BOLT.3/8-16X1.50
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

51

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 139123

PULLEY.IDLER.V.GR
(Superseded to 532139123)

$37.99

$

In Stock, only 1 left!

0

53

Electrolux/AYP 207J

WASHER T
(Superseded to 532000207)

$6.49

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 161590

CLUTCH.ARM.ASM
(Superseded to 532161590)

$18.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 105706X

"LY, BEARING"
(Superseded to 532105706)

$7.49

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 140218

BELT-V 84.5
(Superseded to 532140218)

$60.99

$

In Stock, only 1 left!

0

58

Electrolux/AYP 74760724

BOLT
(Superseded to 874760724)

$4.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 140488

PULLEY TRANSAXLE
(Superseded to 532140488)

$43.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 154752

SHAFT-BRAKE/CLUTC
(Superseded to 532154752)

$

$

Not available

65

Electrolux/AYP 67609

AXLE BOLT
(Superseded to 532179613)

$6.49

$

In Stock, only 2 left!

0

66

Electrolux/AYP 140296

WASHER.HARD.BLADE
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

67

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

68

Electrolux/AYP 5142H

ROLL PIN STD
(Superseded to 532437620)

$4.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 123800X

WASHER
(Superseded to 532123800)

$7.49

$

In Stock, only 1 left!

0

70

Electrolux/AYP 151146

SUB= 164892
(Superseded to 164892X428)

$

$

Not available

71

Electrolux/AYP 151179

"PLATE CONSOLE,SFT"
(Superseded to 532151179)

$

$

Not available

72

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

73

Electrolux/AYP 74490548

BOLT.HEX.FLGHD.
(Superseded to 874490548)

$6.49

$

In Stock, only 1 left!

0

74

Electrolux/AYP 142432

SCREW HEXWSH H-L
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 140481

BRACKET TRAN VGTH
(Superseded to 532140481)

$

$

Not available

77

Electrolux/AYP 74760716

BOLT
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 72110505

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

80

Electrolux/AYP 140484

BRACKET TORQUE RH
(Superseded to 532140484)

$

$

Not available

81

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

82

Electrolux/AYP 150586

BRACKET.MTG.FAN
(Superseded to 532154561)

$

$

Not available

83

Electrolux/AYP 140479

STRAP TORQUE MID
(Superseded to 532140479)

$

$

Not available

84

Electrolux/AYP 140490

SPACER
(Superseded to 532140490)

$

$

Not available

85

Electrolux/AYP 17541020

SCREW YTV
(Superseded to 817541020)

$

$

Not available

86

Electrolux/AYP 140462

"FAN 7"" HYDRO"
(Superseded to 532140462)

$12.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 140491

ADAPTER FAN
(Superseded to 532140491)

$

$

Not available

88

Electrolux/AYP 161592

PULLEY FAN
(Superseded to 532161592)

$

$

Not available

89

Electrolux/AYP 73680700

NUT GTV
(Superseded to 873680700)

$2.99

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 140489

KEEPER BELT
(Superseded to 532140489)

$8.99

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 17490644

SCREW.HXWSH.3/8
(Superseded to 817490644)

$

$

Not available

$2.49

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 140502

LINK ASM SHIFT
(Superseded to 532140502)

$

$

Not available

94

Electrolux/AYP 133835

XMAS TREE FASTNER
(Superseded to 532133835)

$7.49

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 141103

WASHER NICKEL PLT
(Superseded to 532141103)

$3.99

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 141004

BRACKET SHIFT
(Superseded to 532141004)

$

$

Not available

99

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

100

Electrolux/AYP 126881X

WASHER COMPRESSIN
(Superseded to 532126881)

$3.99

$

Usually ships in 3-10 days

0

101

Electrolux/AYP 156106

WASHER-BELLVILLE
(Superseded to 532156106)

$

$

Not available

104

Electrolux/AYP 140480

BRACKET IDLER
(Superseded to 532140480)

$

$

Not available

105

Electrolux/AYP 17580408

SCREW CRT
(Superseded to 817580408)

$

$

Not available

106

Electrolux/AYP 142918

O-RING.ASM.70110
(Superseded to 532142918)

$

$

Not available

107

Electrolux/AYP 154739

"LINE FUEL,HYD 15"""
(Superseded to 532154739)

$6.49

$

Usually ships in 3-10 days

0

108

Electrolux/AYP 142917

CAP.VENT.70109
(Superseded to 532142578)

$46.99

$

Usually ships in 3-10 days

0

109

Electrolux/AYP 140929

SPRING BRAKE
(Superseded to 532140929)

$

$

Not available

111

Electrolux/AYP 156240

"SPACER-LEVER,SHIF"
(Superseded to 532156240)

$2.99

$

Usually ships in 3-10 days

0

112

Electrolux/AYP 156104

"WASHER-NYLON,HIGH"
(Superseded to 532178558)

$6.49

$

Usually ships in 3-10 days

0

113

Electrolux/AYP 73220700

NUT
(Superseded to 873220700)

$2.99

$

Usually ships in 3-10 days

0

115

Electrolux/AYP 123405X

"KEEPER,DRIVE BELT"
(Superseded to 532164173)

$8.99

$

Usually ships in 3-10 days

0

116

Electrolux/AYP 73900500

"NUT HEX,LOCK,FLAN"
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

117

Murray 73900600

SUB= 83923

$

$

Not available

Electrolux/AYP 163198

TRANSAXLE.HYDRO

$

$

Not available
