Y 780 (41AD78BG900) - Yard Machines String Trimmer Engine Parts Diagram

String Trimmer

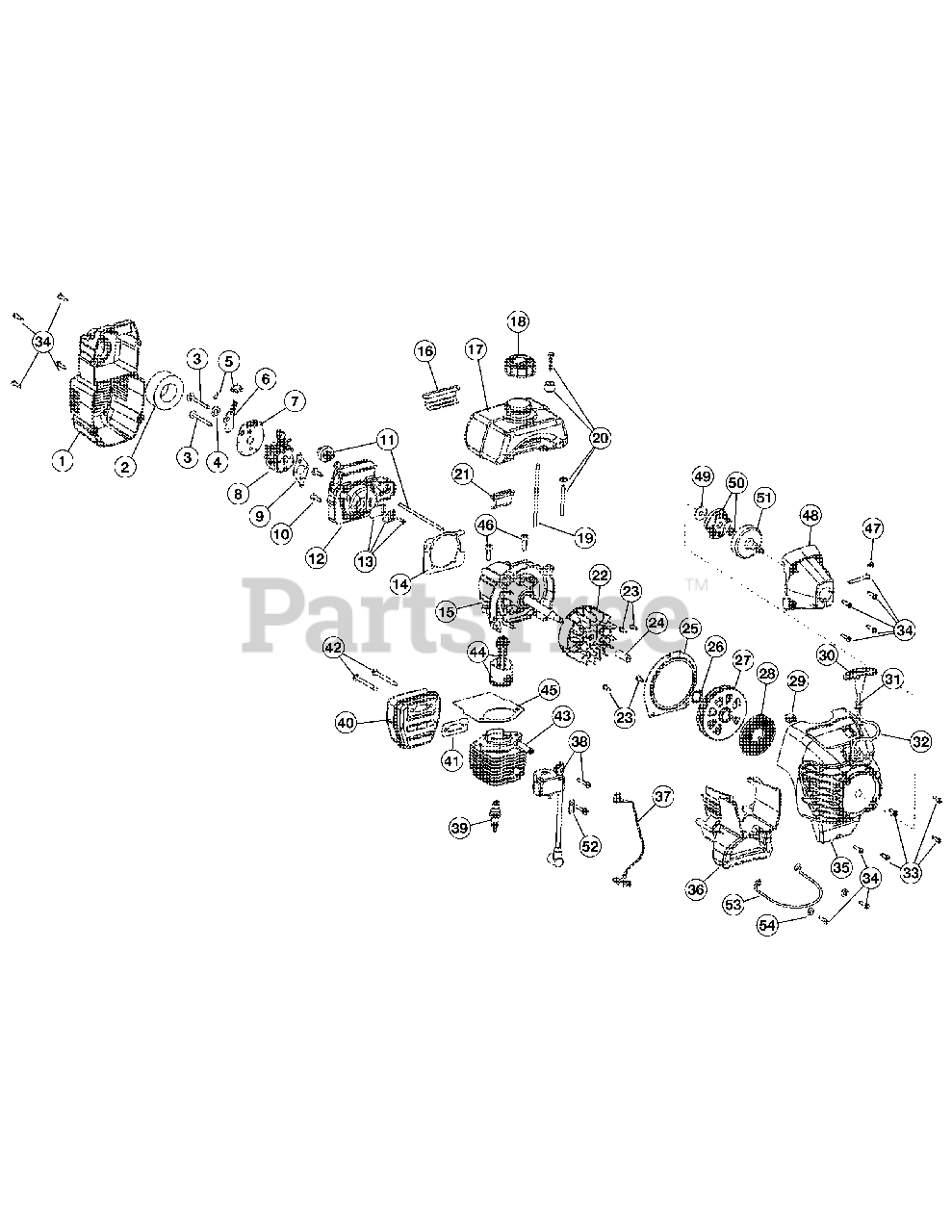

Engine Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner Cover Assembly

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screws

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

MTD 791-182202

Choke Knob & Screw

$

$

Not available

6

MTD 753-04418

Choke Lever Assembly (includes 5)

$

$

Not available

7

MTD 753-04419

Choke Lever & Plate (includes 6)

$

$

Not available

8

MTD 753-05133

Carburetor Assembly (includes 9 & 20)

$81.99

$

Usually ships in 3-6 days

0

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 18

0

12

MTD 753-1196

Carburetor Mount Assembly (includes 10, 13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

15

MTD 753-04401

Crankcase Service Assembly (includes 10)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 791-181152

Fuel Tank Assembly (includes 18 & 20)

$

$

Not available

18

MTD 791-182529

Fuel Cap Assembly

$21.99

$

In Stock, only 4 left!

0

19

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 11

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

23

MTD 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

24

MTD 791-181525

Spacer

$22.99

$

Usually ships in 3-6 days

0

25

MTD 753-04928

Pressure Plate (includes 23)

$

$

Not available

26

MTD 753-04288

Palnut

$10.99

$

Usually ships in 3-6 days

0

27

MTD 753-04823

Recoil Pulley Assembly (includes 26 & 32)

$33.99

$

In Stock, Qty 8

0

28

MTD 753-04907

Recoil Spring

$

$

Not available

30

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

31

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

32

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

33

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

34

MTD 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

35

MTD 753-04890

Starter Housing Assembly (includes 23, 25-34)

$

$

Not available

36

MTD 753-05091

Shroud Extension and Stand

$19.99

$

Usually ships in 3-6 days

0

37

MTD 791-182815

Wire Lead

$

$

Not available

38

MTD 753-04336

Module Assembly

$107.99

$

Usually ships in 3-6 days

0

39

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

40

MTD 753-05169

Muffler Assembly (includes 41, 42, and spark arrestor)

$112.99

$

Usually ships in 3-6 days

0

41

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 1 left!

0

42

MTD 769-04620

Muffler Mounting Bolt Assembly

$

$

Currently unavailable

43

MTD 753-04814

Cylinder Assembly (includes 45 & 46)

$83.99

$

In Stock, only 1 left!

0

44

MTD 753-04367

Piston & Rod Assembly

$

$

Not available

45

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

46

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

47

MTD 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

48

MTD 753-04889

Clutch Cover Assembly (includes 34 & 47)

$21.99

$

Usually ships in 3-6 days

0

49

MTD 791-182396

Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

50

MTD 791-182369

Clutch Assembly
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 10

0

51

MTD 791-153592

Clutch Drum

$51.99

$

In Stock, Qty 12

0

52

MTD 791-611063

Tab

$

$

Not available

53

MTD 753-04094

Wire Footstand (includes 34 & 54)

$11.99

$

Usually ships in 3-6 days

0

54

MTD 791-182409

Washer

$4.99

$

In Stock, Qty 5

0

MTD 753-1209

Piston Ring (not shown)

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04812

Short Block Assembly (includes 15, 39 & 43-46) (not shown)

$208.99

$

Usually ships in 3-6 days

0
