Y 765 (41AD765G900) - Yard Machines String Trimmer Boom & Trimmer Parts Parts Diagram

String Trimmer

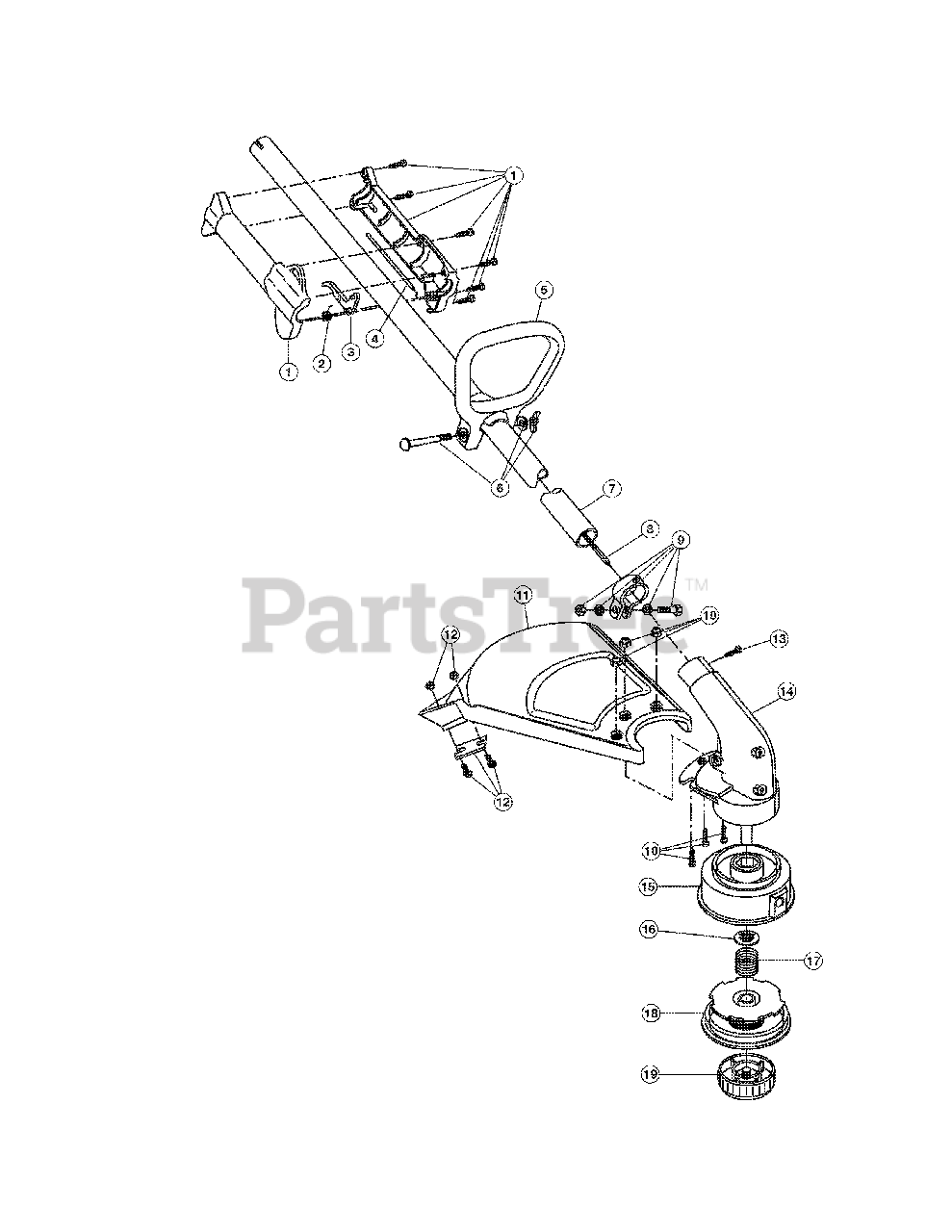

Boom & Trimmer Parts Parts Diagram

  • Title

1

MTD 753-04927

Throttle Housing Assembly (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 791-180975

Throttle Trigger
(Superseded to 791-181807)

$9.99

$

In Stock, Qty 5

0

4

MTD 753-04405

Throttle Cable

$7.99

$

Usually ships in 3-6 days

0

5

MTD 791-153064

D-Handle Assembly (includes 6)

$

$

Not available

6

MTD 791-153317

D-Handle Hardware
(Superseded to 791-181587)

$19.99

$

In Stock, only 1 left!

0

7

MTD 753-05027

Drive Shaft Housing

$

$

Not available

8

MTD 753-04251

Flexible Drive Shaft

$67.99

$

Usually ships in 3-6 days

0

9

MTD 791-153597

Lower Clamp Assembly

$

$

Not available

10

MTD 791-180547

Guard Mounting Hardware

$

$

Not available

11

MTD 791-180548

Guard Assembly (includes 12)

$

$

Not available

12

MTD 791-180553

Blade Assembly

$14.99

$

Usually ships in 3-6 days

0

13

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

14

MTD 791-180549

Gearbox Assembly (includes 15 & 16)

$

$

Not available

15

MTD 791-153619

Outer Spool Assembly (includes 16)

$27.99

$

Usually ships in 3-6 days

0

16

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

17

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 8

0

18

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 6

0

19

MTD 791-153066

Bump Head Knob Assembly
(Superseded to 791-153066B)

$13.99

$

In Stock, Qty 20+

0

MTD 791-153577B

Spool and Line (25 ft.) Assembly (NOT SHOWN)

Note: Optional Accessories

$28.99

$

In Stock, only 2 left!

0

MTD 791-682075B

Shoulder Strap (NOT SHOWN)

Note: Optional Accessories

$38.99

$

Usually ships in 3-6 days

0
