Y 4800 EC (41CD480C800) - Yard Machines String Trimmer General Assembly Parts Diagram

String Trimmer

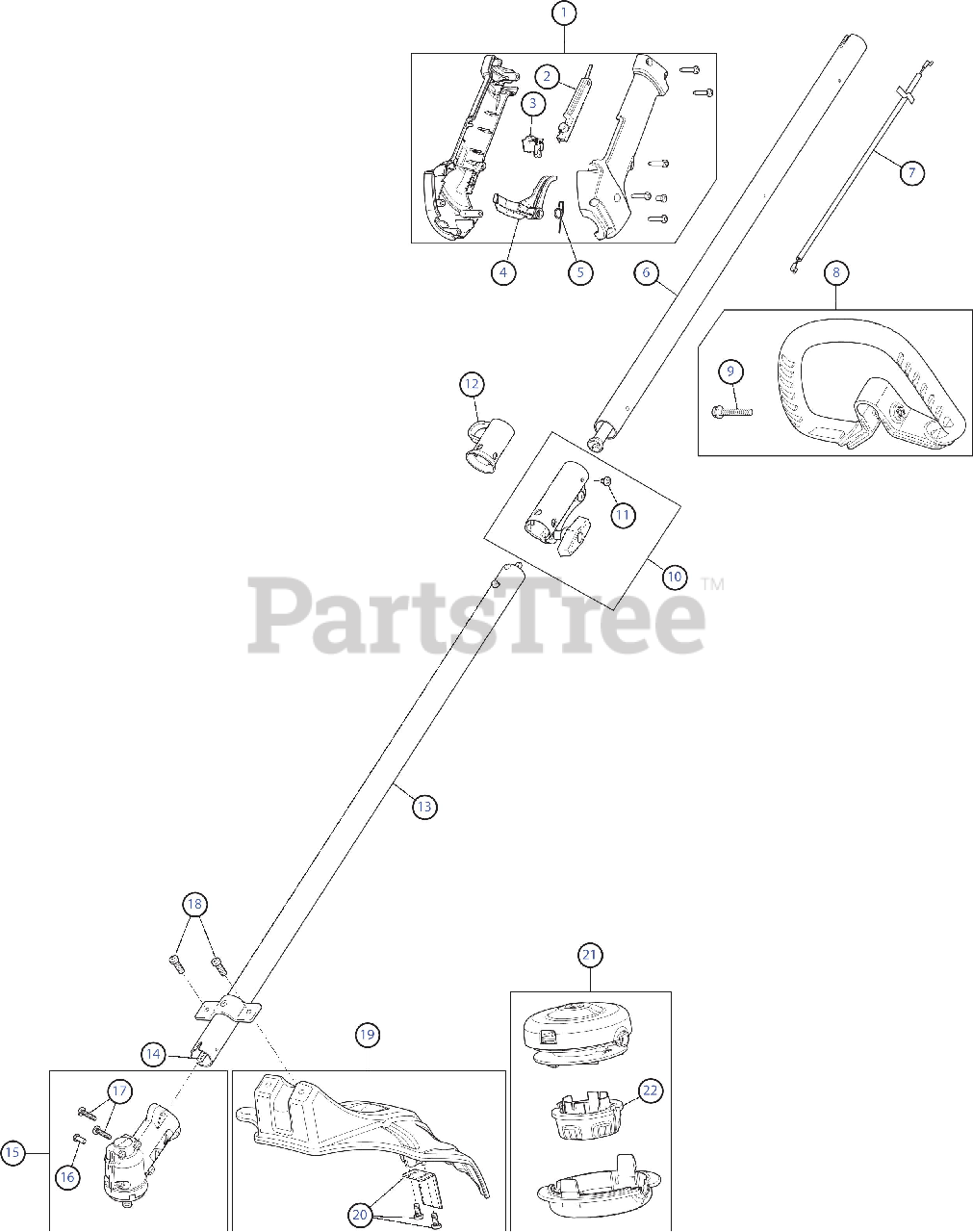

General Assembly Parts Diagram

  • Title

1

MTD 753-08344

Throttle Housing Assembly

Note: (Incl. 2 - 5)

$30.99

$

Usually ships in 3-6 days

0

2

MTD 731-08433C-10

Throttle Trigger Lock-Out

$3.49

$

In Stock, Qty 14

0

3

MTD 791-182405

Throttle Switch Assembly

$10.99

$

In Stock, Qty 12

0

4

MTD 731-04970B-10

Throttle Trigger

$9.49

$

In Stock, Qty 20+

0

5

MTD 753-05007

Throttle Trigger Spring

$5.49

$

In Stock, only 2 left!

0

6

MTD 753-06880

Upper Drive Shaft Assembly

$19.99

$

In Stock, only 1 left!

0

7

MTD 753-05266

Throttle Cable

$20.99

$

In Stock, Qty 12

0

8

MTD 753-06039

D-Handle Assembly

Note: (Incl. 9)

$11.99

$

Usually ships in 3-6 days

0

9

MTD 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

10

MTD 753-1190

Split Boom Coupler

Note: (Incl. 11)

$23.99

$

In Stock, only 1 left!

0

11

MTD 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, Qty 6

0

12

MTD 731-08926

Hanger

$2.99

$

In Stock, only 3 left!

0

13

MTD 753-06139

Lower Drive Shaft Housing

$20.99

$

In Stock, Qty 20+

0

14

MTD 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

15

MTD 753-08180

Gearbox Assembly

Note: (Incl. 16 and 17)

$45.99

$

In Stock, only 2 left!

0

16

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

17

MTD 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

18

MTD 753-06125

Shield Mounting Screws

$6.99

$

In Stock, only 4 left!

0

19

MTD 753-08177

Shield Assembly

Note: (Incl. 20)

$12.99

$

In Stock, only 2 left!

0

20

MTD 753-08178

Blade Assembly

$2.99

$

In Stock, Qty 5

0

21

MTD 753-08202

Cutting Head Assembly

Note: (Incl. 22)

$20.99

$

In Stock, Qty 20+

0

22

MTD 731-10783-1

Bump Knob

$2.99

$

In Stock, only 1 left!
