Y 4800 EC (41AD480C800) - Yard Machines String Trimmer General Assembly Parts Diagram

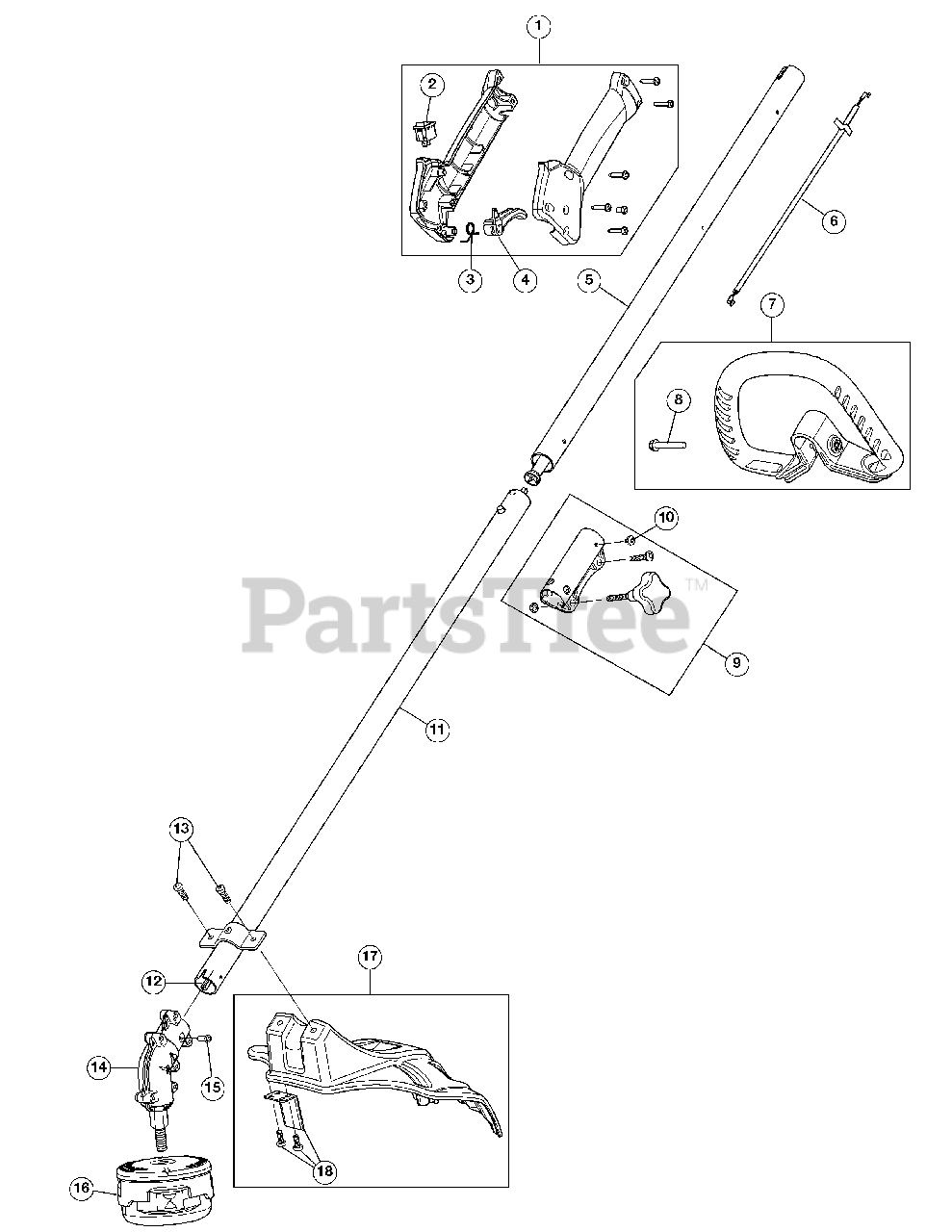

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (Incl. 2 - 4)

$21.99

$

In Stock, Qty 8

0

2

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 14

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 3 left!

0

4

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 19

0

5

MTD 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, Qty 5

0

6

MTD 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 14

0

7

MTD 753-06039

Deluxe D-Handle Assembly (Incl. 8)

$11.99

$

Usually ships in 3-6 days

0

8

MTD 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

9

MTD 753-1190

Split Boom Coupler (Incl. 10)

$23.99

$

In Stock, only 3 left!

0

10

MTD 791-182057

Screw

$4.49

$

Usually ships in 3-6 days

0

11

MTD 753-06139

Lower Drive Shaft Housing Assembly

$20.99

$

In Stock, Qty 20+

0

12

MTD 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 2 left!

0

13

MTD 753-06125

Shield Mounting Screws

$6.99

$

In Stock, Qty 5

0

14

MTD 753-06124

Gear Box Assembly (Incl. 15)

$

$

Not available

15

MTD 7039

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

16

MTD 753-06129

Cutting Head Assembly
(Superseded to 753-08182)

$19.99

$

In Stock, Qty 17

0

17

MTD 753-06123

Shield Assembly (Incl. 18)

$20.99

$

In Stock, Qty 9

0

18

MTD 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 5

0

MTD 737-04317

Oil, 4-Cycle 3.4 OZ. SAE 30
(Superseded to 737-05691)

Note: (Optional Accessory)

$2.99

$

In Stock, only 1 left!

0

MTD 22216

32 oz. Sta-Bil fuel Additive
(Superseded to 22287)

Note: (Optional Accessory)

$

$

Not available
