Y 4700 EC (41AD470C800) - Yard Machines String Trimmer General Assembly Parts Diagram

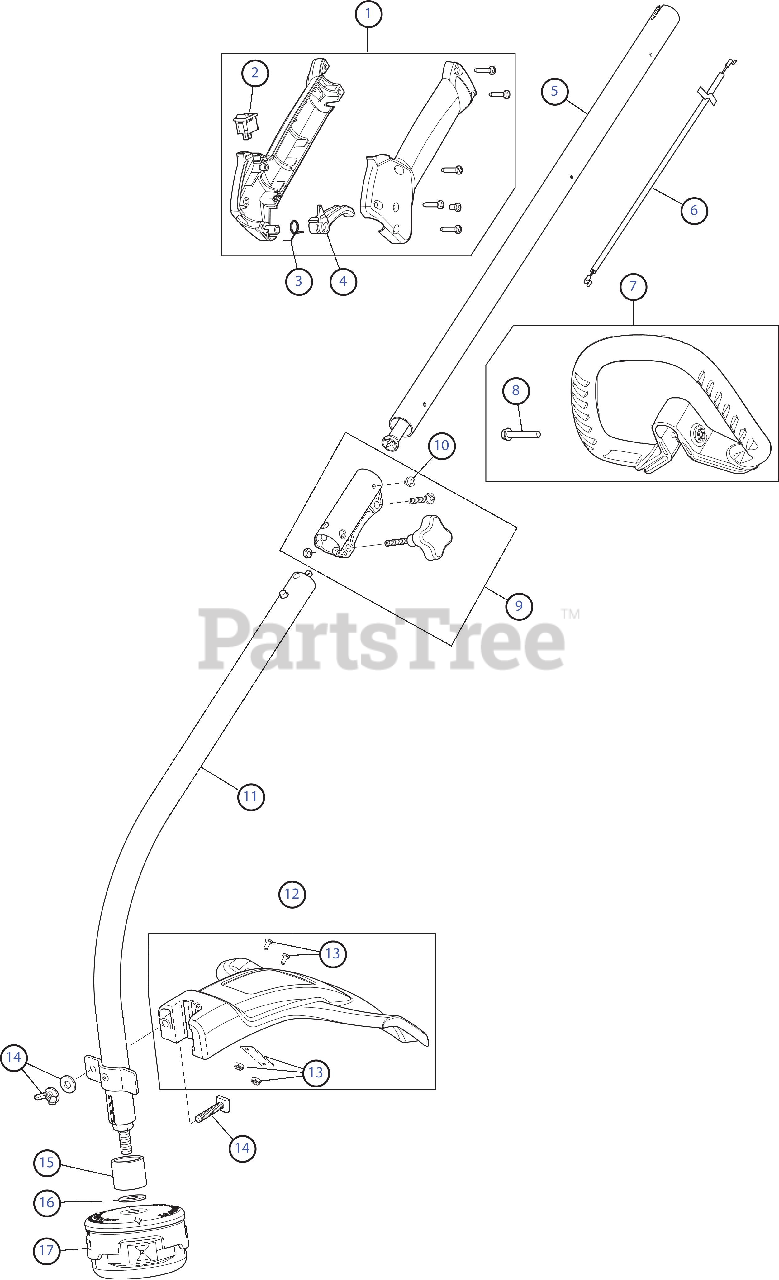

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (Incl. 2 - 4)

$21.99

$

In Stock, Qty 7

0

2

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

5

MTD 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, Qty 5

0

6

MTD 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 12

0

7

MTD 753-06039

D-Handle Assembly (Incl. 8)

$11.99

$

Usually ships in 3-6 days

0

8

MTD 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

9

MTD 753-1190

Split Boom Coupler (Incl. 10)

$23.99

$

In Stock, only 1 left!

0

10

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 6

0

11

MTD 753-06805

Lower Drive Shaft Housing Assembly

$

$

Not available

12

MTD 753-06804

Shield Assembly (Incl. 13)

$9.49

$

Usually ships in 3-6 days

0

13

MTD 753-06803

Blade Assembly

$3.49

$

Usually ships in 3-6 days

0

14

MTD 753-04282

Shield Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

15

MTD 753-06801

Cover

$3.99

$

In Stock, only 2 left!

0

16

MTD 753-06395

Washer

$2.99

$

Usually ships in 3-6 days

0

17

MTD 753-08182

Bump Head Assembly

$19.99

$

In Stock, Qty 15

0
