Y 41120 (88048) - Snapper 41" Walk-Behind Mower, 12hp Spindle Parts Diagram

41" Walk-Behind Mower, 12hp

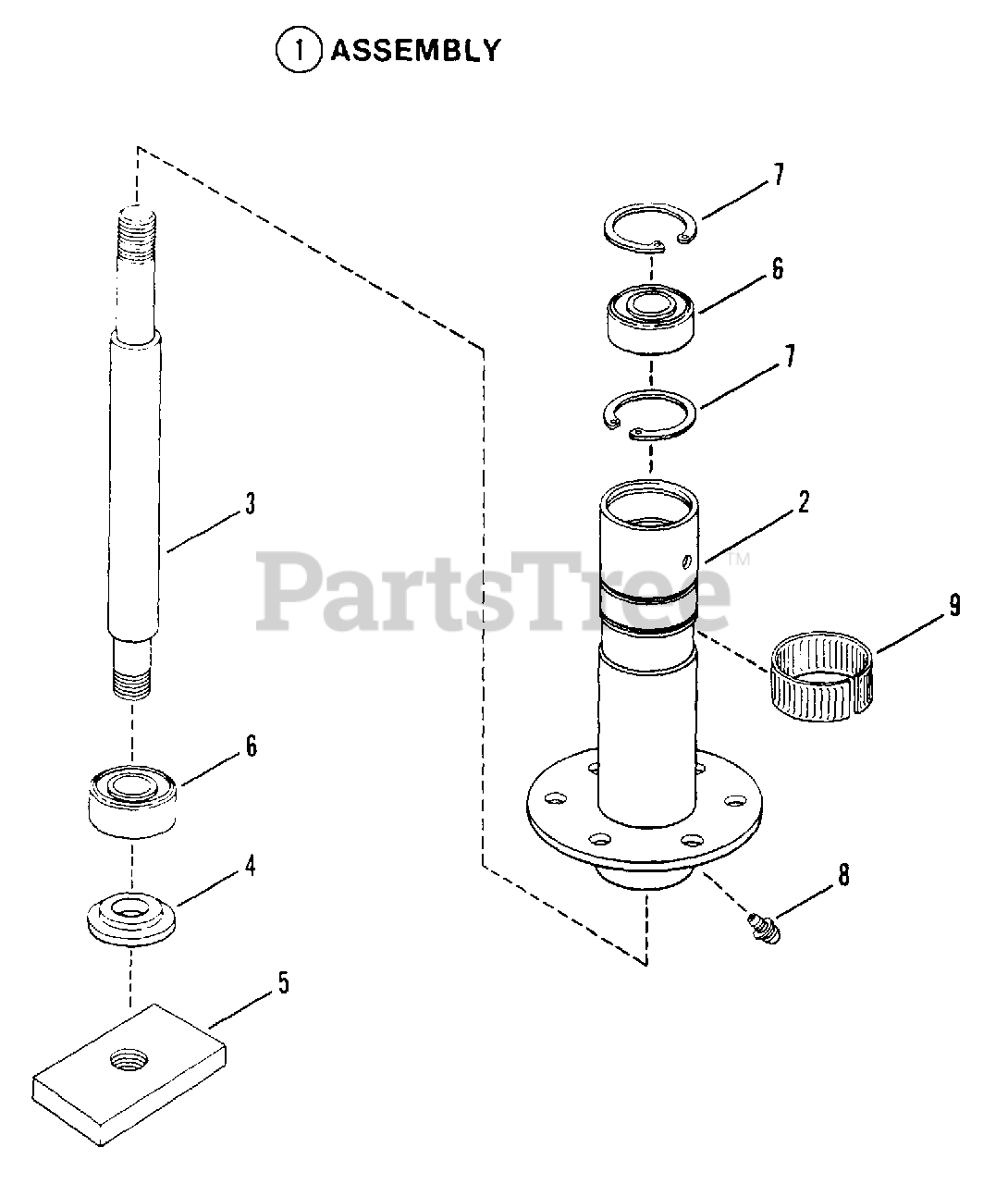

Spindle Parts Diagram

  • Title
1

Snapper 7059628

ASSEMBLY, Spindle
(Superseded to 7059628BMYP)

Note: (Includes items 2-8)

$341.99

$

Usually ships in 2-12 days

0

2

Snapper 7051469

HOUSING
(Superseded to 7051469YP)

$54.99

$

Usually ships in 2-12 days

0

3

Snapper 7027640

SPINDLE
(Superseded to 7027640YP)

$59.99

$

Usually ships in 2-12 days

0

4

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 20+

0

5

Snapper 7032294

HOLDER, Blade
(Superseded to 7032294YP)

$

$

Not available

6

Snapper 7013313

BEARING
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

7

Snapper 7012491

RING, Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7012670

RING, Tolerance
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 6

0
