Y 41120 (88048) - Snapper 41" Walk-Behind Mower, 12hp Series 1 Rubber Disc Parts Diagram

41" Walk-Behind Mower, 12hp

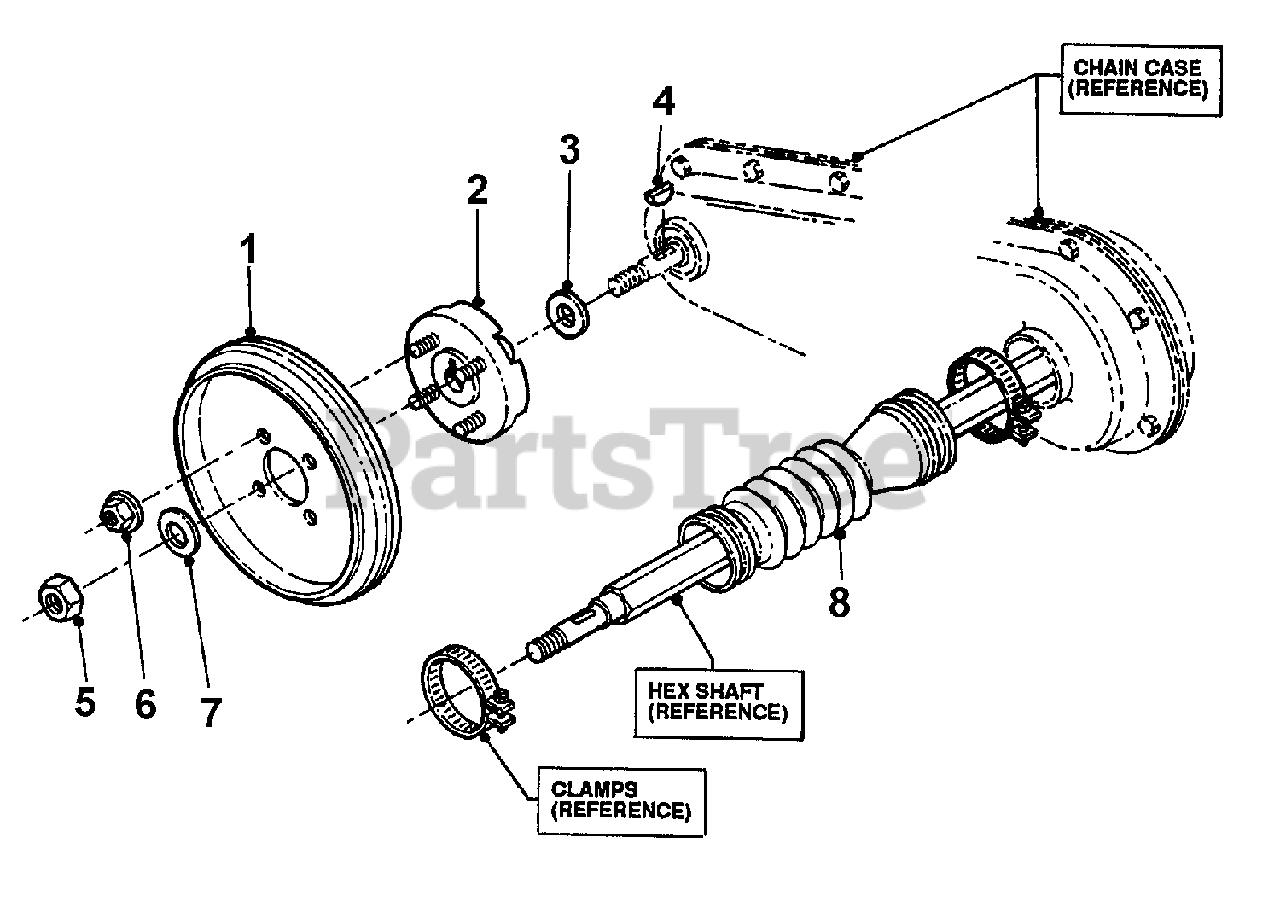

Series 1 Rubber Disc Parts Diagram

  • Title

Snapper 7061077

DRIVEN DISC KIT, ESTATE MOWER

$

$

Currently unavailable

1

Snapper 7017226

DRIVEN DISC, MID DUTY
(Superseded to 7017226YP)

$40.99

$

Usually ships in 2-12 days

0

2

Snapper 7052337

HUB ASSY.

$91.99

$

Usually ships in 2-12 days

0

3

Snapper 7090692

FW, 5/16 X 7/8 X .083 ZP
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7015163

KEY, WOODRUFF, #304
(Superseded to 7015163YP)

$

$

Not available

5

Snapper 7090524

HLN, 3/8F GR.C ZP
(Superseded to 7090524YP)

$

$

Not available

6

Snapper 7091584

HFLN, 1/4C YZ
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

7

Snapper 7028568

WASHER, BELLEVILLE 3/8" ID x 3/4" OD
(Superseded to 704006)

$3.99

$

In Stock, only 1 left!

0

8

Snapper 7019049

COVER, SHAFT
(Superseded to 7019049YP)

$10.99

$

Usually ships in 2-12 days

0

INSTRUCTIONS, KIT

Note: 17278 Not shown

$

$

Not available
