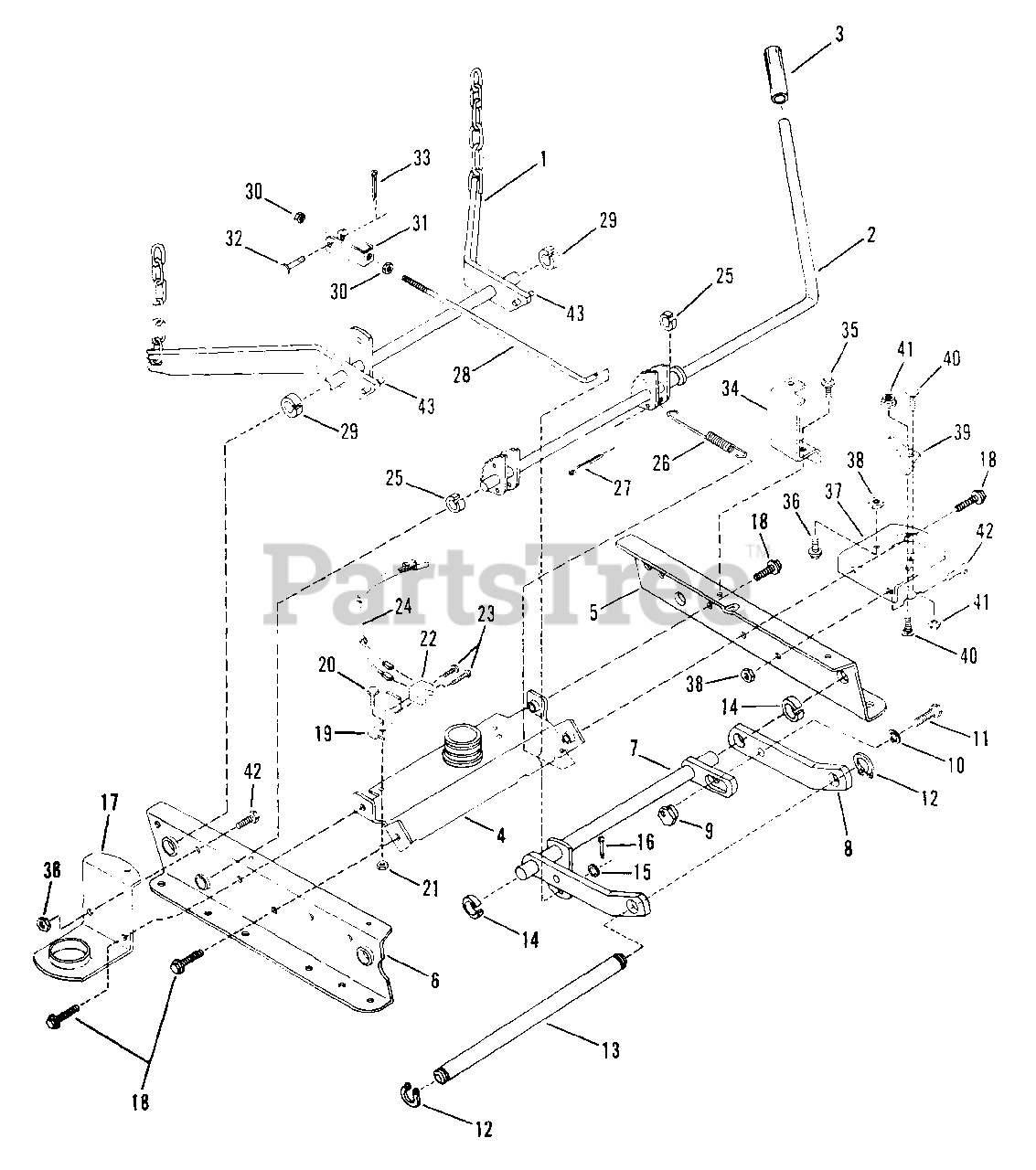

Y 41120 (88048) - Snapper 41" Walk-Behind Mower, 12hp Rails, Lift Arm, Cam Lift Parts Diagram

41" Walk-Behind Mower, 12hp

Rails, Lift Arm, Cam Lift Parts Diagram

  • Title

1

Snapper 7057281

ASSEMBLY, REAR LIFT ARM
(Superseded to 7057281YP)

$188.99

$

Usually ships in 2-12 days

0

2

Snapper 7047932

CAM LIFT LEVER

$

$

Currently unavailable

3

Snapper 7010684

GRIP, Cam Lift Lever

$6.99

$

In Stock, Qty 8

0

4

Snapper 7040502

BRACE, Top Rail
(Superseded to 7040502YP)

$81.99

$

Usually ships in 2-12 days

0

5

Snapper 7037709

RAIL, Left Hand
(Superseded to 7037709YP)

$9.99

$

Usually ships in 2-12 days

0

6

Snapper 7037710

RAIL, Right Hand
(Superseded to 7037710YP)

$10.99

$

In Stock, only 1 left!

0

7

Snapper 7047885

ASSEMBLY, FRONT LIFT ARM
(Superseded to 7047885YP)

$90.99

$

Usually ships in 2-12 days

0

8

Snapper 7032001

LIFT ARM, Front
(Superseded to 7032001YP)

$18.99

$

Usually ships in 2-12 days

0

9

Snapper 7015447

LEVELING ACCENTRIC
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

10

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7090160

CAPSCREW, 3/8-24 x 1" Hex Head
(Superseded to 7090160YP)

$3.49

$

In Stock, only 2 left!

0

12

Snapper 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

13

Snapper 7020882

SUPPORT ROD

Note: (Front Lift Arm to Frame Front End)

$23.99

$

Usually ships in 2-12 days

0

14

Snapper 7012067

RING, Red
(Superseded to 7012067YP)

$4.49

$

In Stock, only 2 left!

0

15

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7091598

COTTER-PIN, 1/8 x 3/4"
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

17

Snapper 7036090

BRACE, Spindle, Right Hand

$

$

Not available

18

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Head Self-Tapping
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

19

Snapper 7032660

BRACKET, Internal Switch

$

$

Currently unavailable

20

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

21

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

22

Snapper 7014847

SWITCH, Interlock
(Superseded to 7014847YP)

Note: Was 15668

$10.99

$

Usually ships in 2-12 days

0

23

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 9

0

24

Snapper 7018957

WIRE, Mower Deck

$

$

Currently unavailable

25

Snapper 7010996

RING, White
(Superseded to 704009)

$3.99

$

Usually ships in 2-12 days

0

26

Snapper 7011074

SPRING, Cam Lift

$

$

Not available

27

Snapper 7091516

COTTER-PIN, 5/32 x 1"
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

28

Snapper 7012030

ROD, Timing

$2.99

$

In Stock, Qty 7

0

29

Snapper 7012068

RING, Blue
(Superseded to 7012068YP)

$5.99

$

Usually ships in 2-12 days

0

30

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

Usually ships in 2-12 days

0

31

Snapper 7031837

CLEVIS, Timing Rod
(Superseded to 7031837YP)

$27.99

$

Usually ships in 2-12 days

0

32

Snapper 7029687

PIN, 3/8 x 1 1/16" Clevis
(Superseded to 7029687YP)

Note: Was 10736

$7.99

$

In Stock, only 1 left!

0

33

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

34

Snapper 7038104

BRACKET, Cover

$

$

Not available

35

Snapper 7090741

SCREW, 1/4-20 x 5/8" Self-Tapping
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

36

Snapper 7090160

CAPSCREW, 3/8-24 x 1" Hex Head
(Superseded to 7090160YP)

$3.49

$

In Stock, only 2 left!

0

37

Snapper 7038096

BRACE, Spindle, Left Hand
(Superseded to 7038096YP)

$16.99

$

Usually ships in 2-12 days

0

38

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

39

Snapper 7032334

ANCHOR
(Superseded to 7032334YP)

$29.99

$

Usually ships in 2-12 days

0

40

Snapper 7090316

BOLT, 5/16-18 x 3/4" Carriage
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

41

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

42

Snapper 7090292

CAPSCREW, 3/8-24 x 3/4" Hex Head

$2.99

$

In Stock, only 3 left!

0

43

Snapper 7010737

PIN, Roll

Note: (Part of item 1)

$

$

Not available
