Y 41120 (88048) - Snapper 41" Walk-Behind Mower, 12hp Frame & Wheels, Front Parts Diagram

41" Walk-Behind Mower, 12hp

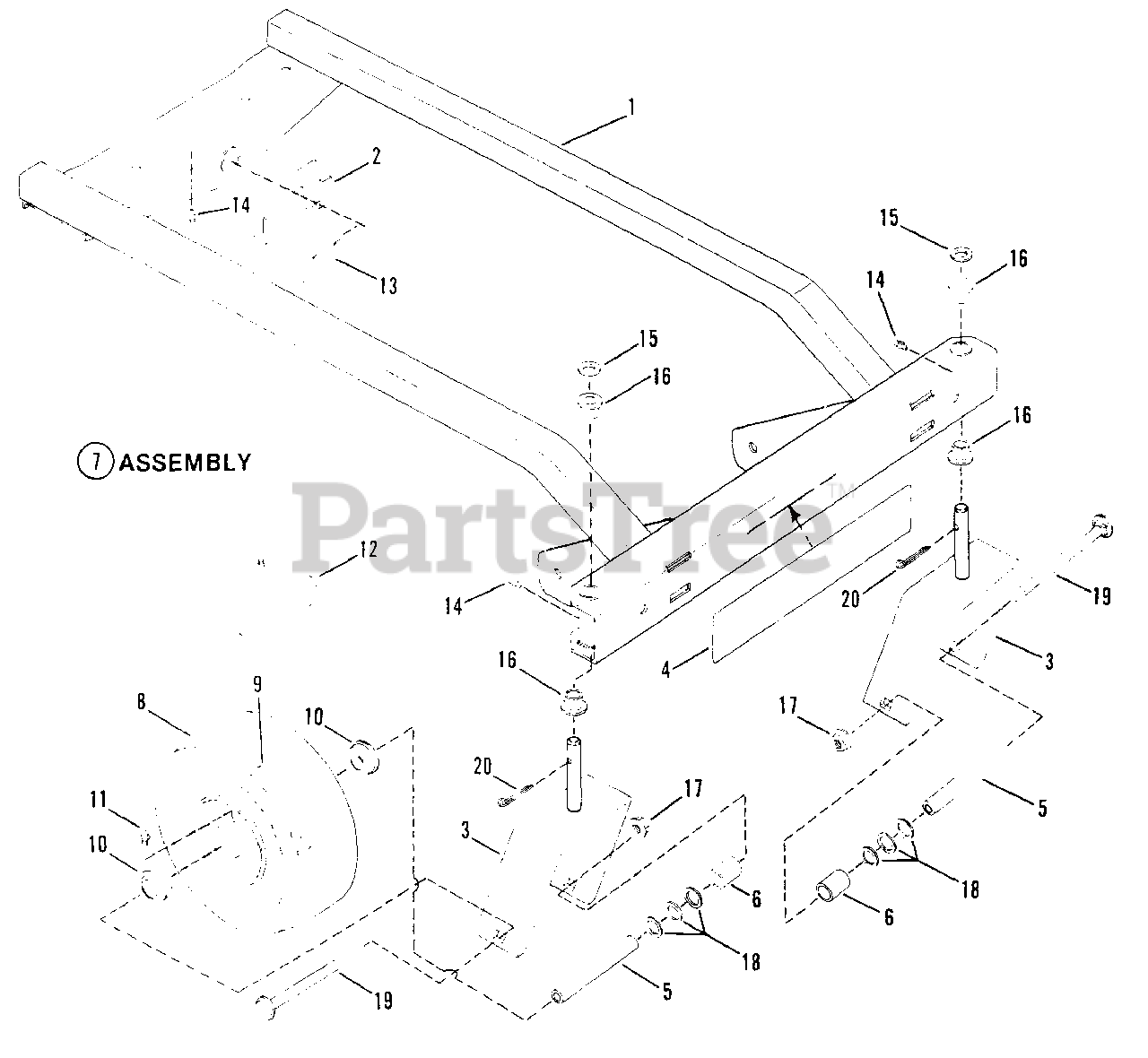

Frame & Wheels, Front Parts Diagram

  • Title

1

Snapper 7049978

FRAME, Front

$

$

Currently unavailable

2

Snapper 7032549

SPACER

$

$

Not available

3

Snapper 7049740

CASTER
(Superseded to 7049740YP)

$82.99

$

In Stock, only 2 left!

0

4

Snapper 7019295

DECAL-SNAPPER
(Superseded to 7019295YP)

Note: Was 18593

$13.99

$

In Stock, only 4 left!

0

5

Snapper 7022045

TUBE, Caster
(Superseded to 7022045YP)

$13.99

$

Usually ships in 2-12 days

0

6

Snapper 7021955

SPACER, Axle 1.00 OD X .758 ID X 1.00 L

Note: Was 21996

$

$

Not available

7

Snapper 7052268

ASSEMBLY, Tire & Rim
(Superseded to 7052268YP)

Note: Was 51449 (Incl. items 8-12)

$107.99

$

In Stock, Qty 7

0

8

Snapper 7023828

TIRE, 4.10/3.50 x 4
(Superseded to 7023828YP)

Note: Was 10820

$59.99

$

Usually ships in 2-12 days

0

9

Snapper 7017146

RIM, (For 4.10/3.50x4 Tire)
(Superseded to 7058943YP)

Note: Was 10819 (For 4.10/3.50 x 4 Tire)

$102.99

$

In Stock, only 2 left!

0

10

Snapper 7011807

BEARING, Ball
(Superseded to 7011807YP)

$7.99

$

In Stock, Qty 18

0

11

Snapper 7014247

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

12

Snapper 7010821

TUBE, Inner
(Superseded to 7010821YP)

Note: (For 4.10/3.50 x 4 Tire)

$18.99

$

In Stock, Qty 5

0

13

Snapper 7091596

PIN, Hair
(Superseded to 7091596YP)

Note: Was 13844

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7014871

FITTING, Lube
(Superseded to 7014871SM)

$4.49

$

In Stock, only 4 left!

0

15

Snapper 7032028

WASHER, Flat, 3/4"
(Superseded to 7032028YP)

$4.99

$

Usually ships in 2-12 days

0

16

Snapper 7010986

BUSHING
(Superseded to 7010986YP)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7090619

NUT, 1/2-13 Hex Flange Lock
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7010935

WASHER
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7090983

BOLT, 1/2-13 x 5-1/2" SSNC

$

$

Not available

20

Snapper 7091516

COTTER-PIN, 5/32 x 1"
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0
