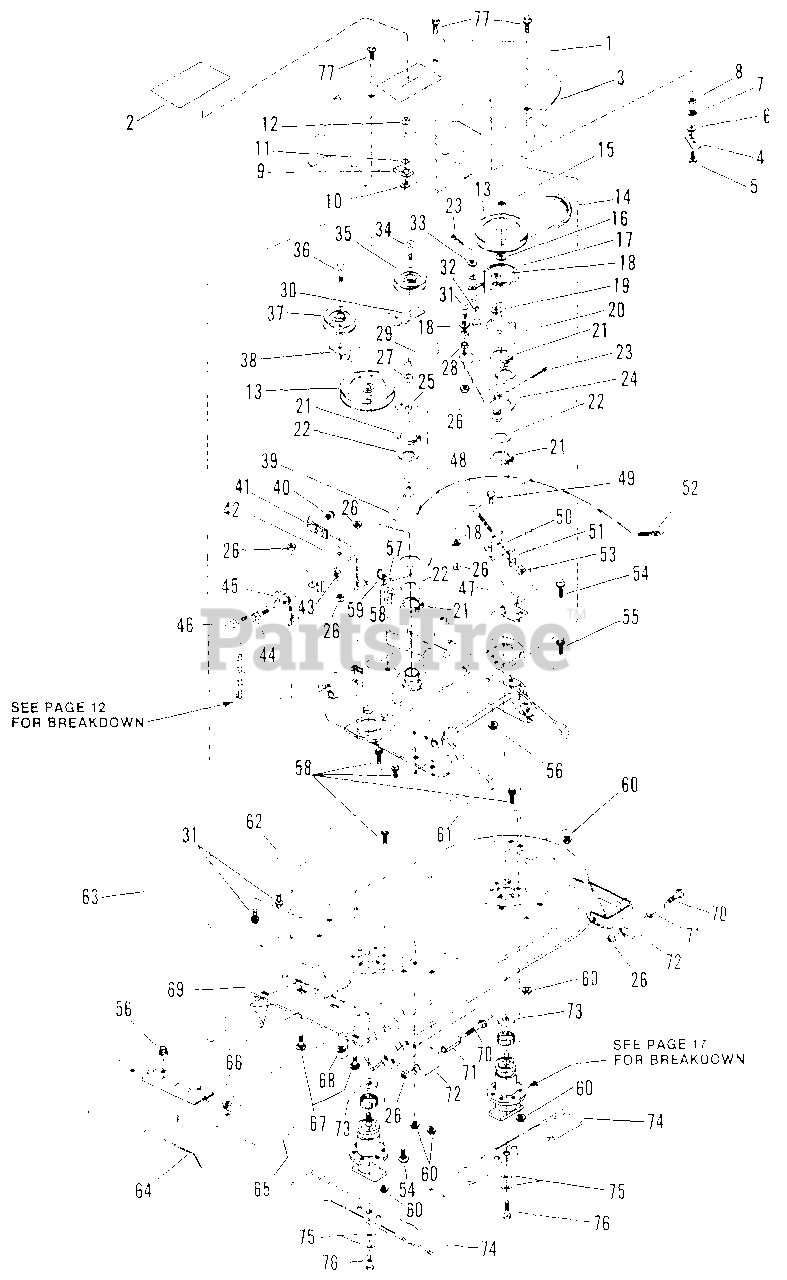

Y 41120 (88048) - Snapper 41" Walk-Behind Mower, 12hp Cutting Deck, Belt, Blade, Idler Arm Parts Diagram

41" Walk-Behind Mower, 12hp

Cutting Deck, Belt, Blade, Idler Arm Parts Diagram

  • Title
1

Snapper 7057504

ASSEMBLY, 41" Cover-Top

Note: (Incl. item 2)

$

$

Currently unavailable

2

Snapper 7018970

DECAL-CAUTION

$

$

Currently unavailable

3

Snapper 7057505

ASSEMBLY, 41" Cover-Bottom

Note: (Incl. items 4-8)

$

$

Currently unavailable

4

Snapper 7032427

GUIDE, Belt

$

$

Not available

5

Snapper 7090071

SCREW, 1/4-20 x 1/2" Hex Head Cap
(Superseded to 703818)

$3.49

$

In Stock, only 1 left!

0

6

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

8

Snapper 7091576

NUT, 1/4 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

9

Snapper 7032367

CLIP
(Superseded to 7032367YP)

$19.99

$

Usually ships in 2-12 days

0

10

Snapper 7013847

RETAINER, Bolt, 3/8"
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

12

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7014532

PULLEY, 5" O.D.
(Superseded to 7014532YP)

$53.99

$

In Stock, only 3 left!

0

14

V-BELT, AA 105.5"

Note: Was 15893, No longer available

$

$

Not available

15

Snapper 7090820

LOCKNUT, 3/4-16 Hex Jam
(Superseded to 7090820YP)

$5.99

$

In Stock, only 1 left!

0

16

Snapper 7010935

WASHER, 3/4 Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7052886

BAND, Brake Assembly
(Superseded to 7503086YP)

Note: Was 57307

$35.99

$

In Stock, only 1 left!

0

18

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7014314

SPACER
(Superseded to 7014314YP)

$4.99

$

In Stock, only 1 left!

0

20

Snapper 7032169

BRAKE DRUM
(Superseded to 7035378YP)

$11.99

$

In Stock, only 2 left!

0

21

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

22

Snapper 7014795

WASHER, 2" I.D.

$

$

Not available

23

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

24

Snapper 7047862

BRAKE ARM ASSEMBLY
(Superseded to 7047862YP)

$82.99

$

Usually ships in 2-12 days

0

25

ANCHOR. Bl. Cont. Cable

Note: Was 32658, No longer available

$

$

Not available

26

Snapper 7090289

LOCKNUT, 3/8-24 Hex
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

27

$

$

Currently unavailable

28

Snapper 7014527

SPACER. 3/8 I.D.
(Superseded to 7014527YP)

$4.49

$

Usually ships in 2-12 days

0

29

$

$

Not available

30

Snapper 7032111

RESTRICTOR, Belt
(Superseded to 7032111YP)

$6.99

$

In Stock, Qty 11

0

31

Snapper 7090292

SCREW, 3/8-24 x 3/4" Hex Hd. Cap

$2.99

$

In Stock, only 3 left!

0

32

Snapper 7014304

PIN, 1/4 Clevis
(Superseded to 7014304YP)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

34

Snapper 7090166

SCREW, 3/8-24 x 2" Hex Hd. Cap
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

35

Snapper 7011029

PULLEY, Idler
(Superseded to 7011029YP)

$23.99

$

In Stock, only 1 left!

0

36

Snapper 7090161

SCREW, 3/8-24 x 1-3/4" Hex Hd. Cap
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

37

Snapper 7018651

PULLEY. Idler
(Superseded to 7018651YP)

$42.99

$

In Stock, only 1 left!

0

38

Snapper 7032368

GUIDE, Belt

$

$

Not available

39

Snapper 7051725

IDLER ARM ASSM'Y.

Note: (Incl. items 57-59)

$

$

Not available

40

Snapper 7090361

SCREW. 5/16-18 x 5/8" HFST
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

41

Snapper 7032622

BRACKET, Cable
(Superseded to 7032622YP)

$8.49

$

Usually ships in 2-12 days

0

42

Snapper 7036089

SUPPORT, Idler
(Superseded to 7036089YP)

$34.99

$

Usually ships in 2-12 days

0

43

Snapper 7091585

NUT, 3/8-16 Hex
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

44

Snapper 7090138

SCREW, 3/8-16 x 1"
(Superseded to 7090138YP)

$3.99

$

Usually ships in 2-12 days

0

45

Snapper 7038114

BRACKET

$

$

Not available

46

Snapper 7090134

SCREW, 3/8-16 x 3/4" Hex Cap
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

47

Snapper 7038129

BRACKET, Height Indicator

$

$

Currently unavailable

48

Snapper 7014302

EYE-BOLT
(Superseded to 7014302YP)

$4.99

$

In Stock, Qty 6

0

49

Snapper 7090316

BOLT, 5/16-18 x 3/4" SNC
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

50

Snapper 7032334

ANCHOR
(Superseded to 7032334YP)

$29.99

$

Usually ships in 2-12 days

0

51

Snapper 7014303

T-NUT
(Superseded to 7014303YP)

$15.99

$

Usually ships in 2-12 days

0

52

Snapper 7015926

SPRING, Blade Brake
(Superseded to 7015926YP)

Note: Was 15964 3.75' (Try 4" 7015926)

$5.49

$

Usually ships in 2-12 days

0

53

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

54

Snapper 7091547

BOLT, 3/8-16 x 3/4" SNC
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

55

Snapper 7091588

BOLT, 3/8-16 x 3/4" HFL
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

56

Snapper 7091601

NUT, 5/16-18 HFL
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

57

Snapper 7032594

BRACKET, Deck Interlock

$

$

Currently unavailable

58

Snapper 7090100

SCREW, 1/4-28 x 5/8" HHC
(Superseded to 7090100YP)

$5.99

$

Usually ships in 2-12 days

0

59

Snapper 7090303

NUT, 1/4-28
(Superseded to 703972)

$3.49

$

In Stock, Qty 7

0

60

Snapper 7091619

NUT, 3/8-16 HFL
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

61

Snapper 7014853

DECAL-CAUTION (Rotating Blades)
(Superseded to 7014853YP)

Note: (LH)

$11.99

$

Usually ships in 2-12 days

0

62

PLATE, Model Number

Note: Nota serviceable part

$

$

Not available

63

Snapper 7014852

DECAL-CAUTION (Rotating Blades)
(Superseded to 7101665YP)

Note: (RH)

$14.99

$

In Stock, Qty 5

0

64

Snapper 7051401

ASSEMBLY, Side Chute
(Superseded to 7051401YP)

Note: (Includes item 65)

$159.99

$

Usually ships in 2-12 days

0

65

Snapper 7013010

DECAL, Danger (Keep Hands & Feet Away)
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

66

Snapper 7091537

WINGNUT, 5/16-18
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, only 3 left!

0

67

Snapper 7090799

BOLT, 5/16-18 x 5/8" SNC
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

68

Snapper 7011791

RETAINER, Bolt, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

69

Snapper 7051916

ASSEMBLY, Deck

Note: Was 49960

$

$

Not available

70

Snapper 7091532

SCREW, 3/8-24 x 3-3/4" HHC
(Superseded to 703876)

Note: Was 90859

$6.99

$

In Stock, Qty 10

0

71

Snapper 7015272

SPACER
(Superseded to 7015272YP)

$7.49

$

Usually ships in 2-12 days

0

72

Snapper 7019190

ROLLER
(Superseded to 7019190YP)

Note: Was 15273

$11.99

$

Usually ships in 2-12 days

0

73

$

$

Not available

74

Snapper 7019795

BLADE, 21"
(Superseded to 7019795BZYP)

$28.99

$

In Stock, Qty 20+

0

75

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

76

Snapper 7090824

SCREW, 3/8-24 x 1-1/4"
(Superseded to 7090824YP)

$4.99

$

In Stock, Qty 9

0

77

Snapper 7090741

SCREW, 1/4-28 x 5/8" HHST
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0
