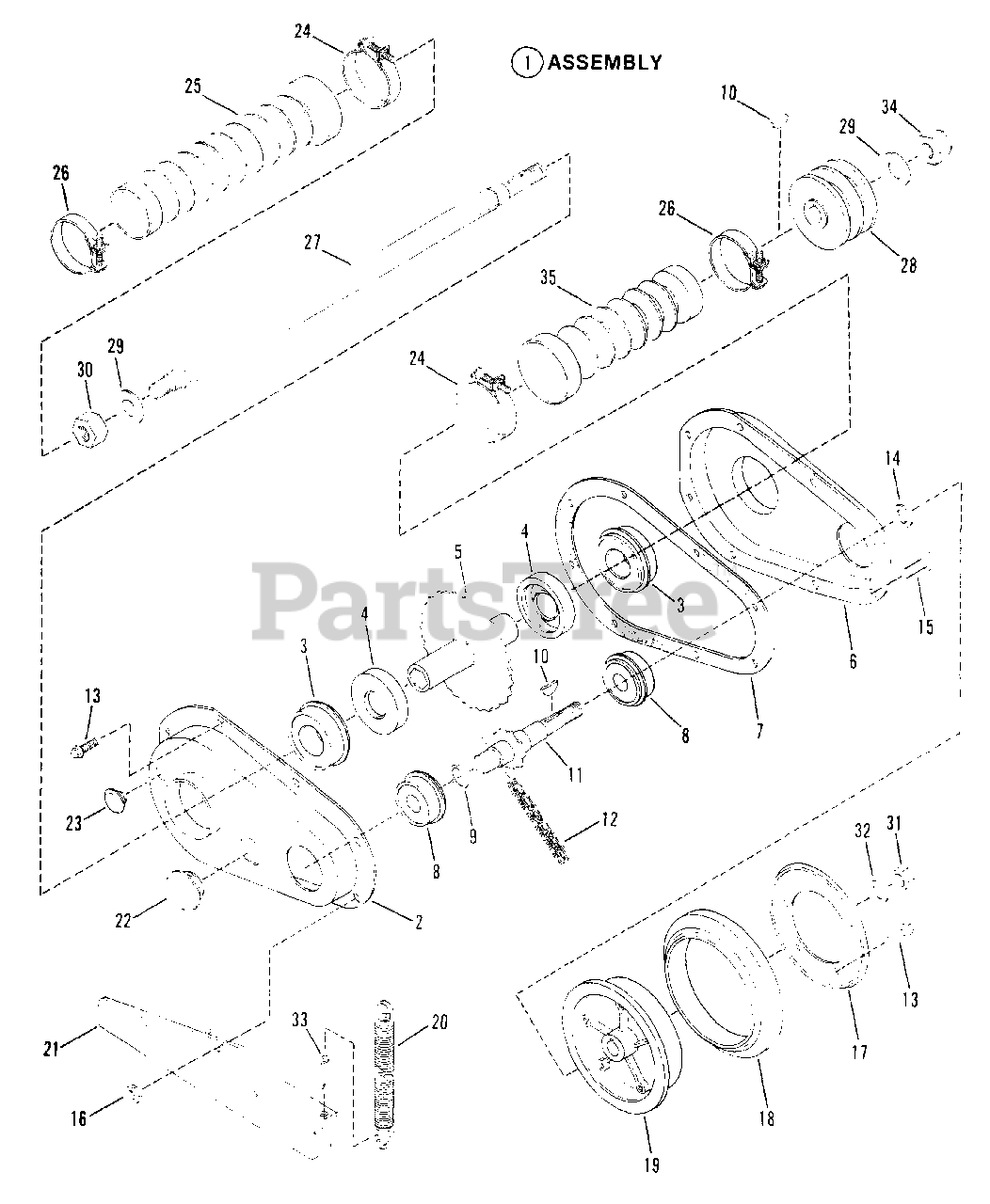

Y 41120 (88048) - Snapper 41" Walk-Behind Mower, 12hp Chain Case Parts Diagram

41" Walk-Behind Mower, 12hp

Chain Case Parts Diagram

  • Title

1

Snapper 7051641

ASSEMBLY, Chain Case

Note: (Includes items 2-16)

$

$

Not available

2

Snapper 7038285

COVER, Chain Case, R.H.

$

$

Not available

3

Snapper 7015535

BEARING, 3/4"
(Superseded to 7015535YP)

$17.99

$

In Stock, only 2 left!

0

4

Snapper 7015142

SPACER

$

$

Not available

5

Snapper 7040538

HUB & SPROCKET
(Superseded to 7040538YP)

$95.99

$

Usually ships in 2-12 days

0

6

Snapper 7038284

COVER, Chain Case, L.H.

$

$

Not available

7

Snapper 7018842

GASKET, Chain Case

$

$

Currently unavailable

8

Snapper 7015141

BEARING
(Superseded to 7015141YP)

$

$

Not available

9

Snapper 7013906

O-RING, 15/32

$

$

Currently unavailable

10

Snapper 7015163

KEY, Woodruff, 3/32 x 1-1/2"
(Superseded to 7015163YP)

$

$

Not available

11

Snapper 7018964

DRIVE SPROCKET

$

$

Not available

12

Snapper 7015536

CHAIN
(Superseded to 7015536YP)

$15.99

$

Usually ships in 2-12 days

0

13

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 9

0

14

Snapper 7090692

WASHER, 5/16"
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7090099

SCREW, 1/4-28 x 1/2", Hex Head Cap

$

$

Not available

16

Snapper 7090303

NUT, 1/4-28 Hex Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 6

0

17

Snapper 7031013

PLATE
(Superseded to 7031013YP)

$5.99

$

In Stock, Qty 13

0

18

Snapper 7023364

RING, Rubber
(Superseded to 704059)

$14.99

$

In Stock, Qty 20+

0

19

Snapper 7018748

HUB, Rubber Ring

$

$

Not available

20

Snapper 7015609

SPRING
(Superseded to 7015609YP)

$5.99

$

In Stock, only 1 left!

0

21

Snapper 7038524

BRACKET, Shift

$

$

Not available

22

Snapper 7023036

PLUG, 3/4"
(Superseded to 7023036YP)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 7015671

PLUG, 3/8"
(Superseded to 7015671YP)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 7011037

CLAMP, 1-7/8"
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

25

Snapper 7018844

COVER, Shaft

$

$

Currently unavailable

26

Snapper 7015543

CLAMP, 1-1/2"

$

$

Not available

27

Snapper 7027660

SHAFT, Hex
(Superseded to 7027660YP)

$55.99

$

Usually ships in 2-12 days

0

28

Snapper 7015614

PULLEY, V-Belt
(Superseded to 7015614YP)

$13.99

$

Usually ships in 2-12 days

0

29

Snapper 7090500

WASHER, 7/16 SAE

$2.99

$

In Stock, Qty 7

0

30

Snapper 7090377

NUT, 7/16-20 Hex Center Lock
(Superseded to 7090377SM)

Note: Was 90394

$5.49

$

In Stock, Qty 20+

0

31

Snapper 7090524

NUT, 3/8-24 Hex Lock
(Superseded to 7090524YP)

$

$

Not available

32

Snapper 7011731

WASHER, 3/8 Belleville

$

$

Currently unavailable

33

Snapper 7091516

COTTER-PIN, 5/32" x 1"
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

34

Snapper 7090377

JAM-NUT, 7/16-20 Hex Ctr. Lock
(Superseded to 7090377SM)

$5.49

$

In Stock, Qty 20+

0

35

Snapper 7019049

COVER, Shaft
(Superseded to 7019049YP)

Note: (Driven Ring Side)

$10.99

$

Usually ships in 2-12 days

0
