Y 41120 (88048) - Snapper 41" Walk-Behind Mower, 12hp Accessories - Grass Catcher Parts Diagram

41" Walk-Behind Mower, 12hp

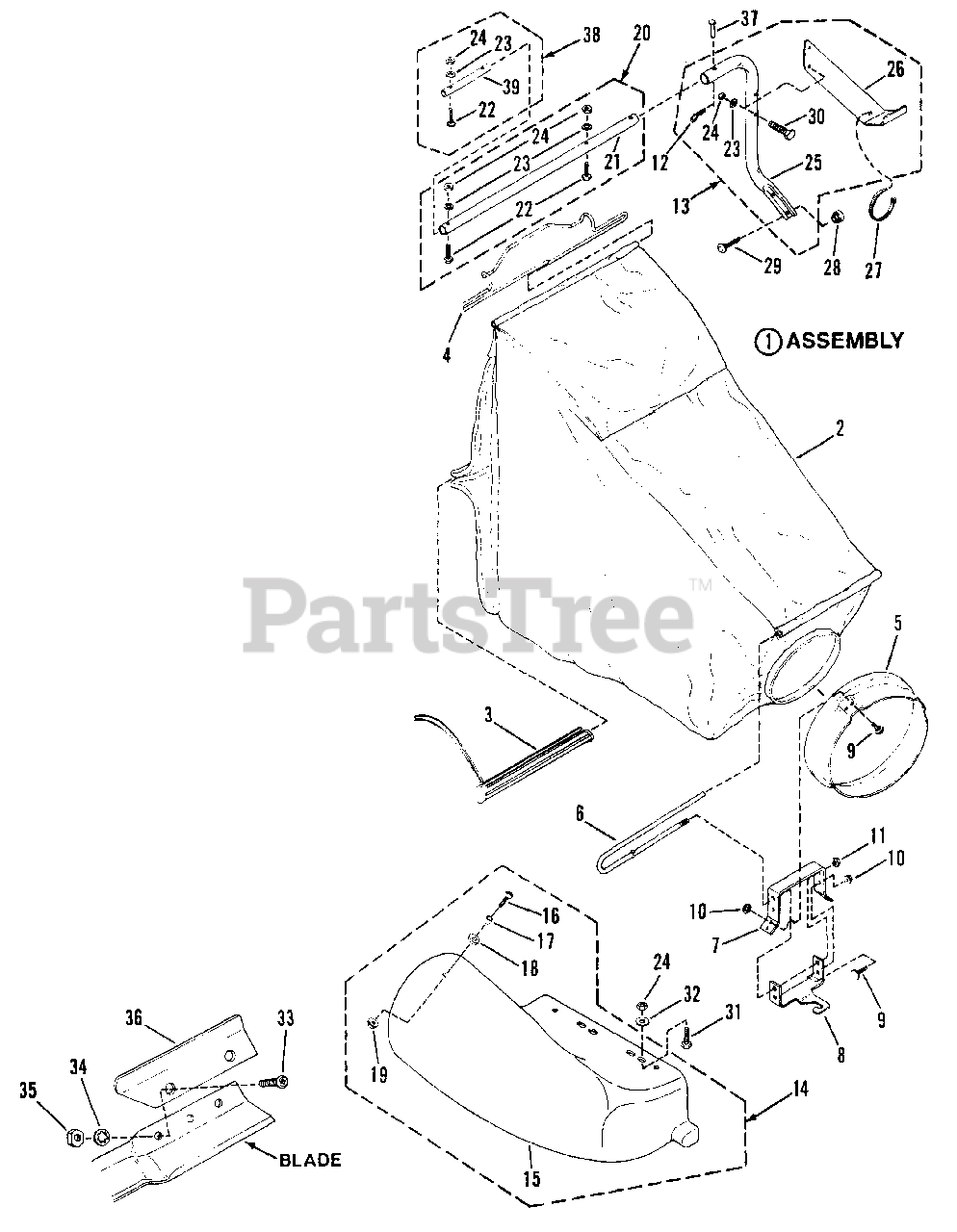

Accessories - Grass Catcher Parts Diagram

  • Title

Snapper 7060835

KIT ASSM'Y., Grass Catcher

Note: (Incl. items 1-39)

$

$

Currently unavailable

1

Snapper 7051709

BAG ASSM'Y., Grass

Note: (Incl. items 2-11)

$

$

Currently unavailable

2

Snapper 7016220

BAG, Grass
(Superseded to 7016220YP)

Note: Was 15896

$163.99

$

Usually ships in 2-12 days

0

3

Snapper 7050711

SLIDER, Grass Bag
(Superseded to 7050711YP)

Note: Was 51717 (Incl. Rope)

$16.99

$

In Stock, Qty 8

0

4

Snapper 7018959

WIRE, Support, Bag, Rear
(Superseded to 7018959YP)

$7.49

$

Usually ships in 2-12 days

0

5

Snapper 7017008

RING, Connector
(Superseded to 7017008YP)

$12.99

$

Usually ships in 2-12 days

0

6

Snapper 7027670

WIRE, Bag, Front
(Superseded to 7027670YP)

$25.99

$

Usually ships in 2-12 days

0

7

Snapper 7038336

CONNECTOR, Handle
(Superseded to 7038336YP)

$21.99

$

Usually ships in 2-12 days

0

8

Snapper 7038337

LATCH, Connector
(Superseded to 7038337YP)

$36.99

$

Usually ships in 2-12 days

0

9

Snapper 7090803

BOLT, 1/4-20 x 5/8" F.H.C.
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7091584

NUT, 1/4-20 Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0

11

Snapper 7090289

NUT, 3/8-24 Hex, Ctr. Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

12

Snapper 7012431

PIN, Hair, 1/4
(Superseded to 7012431SM)

$2.99

$

Usually ships in 2-12 days

0

13

Snapper 7051736

BRACKET ASSM'Y., Rear Bag Support

Note: (Incl. items 23-26, & 30)

$

$

Currently unavailable

14

Snapper 7051710

ADAPTER ASSM'Y., Bag
(Superseded to 7051710YP)

Note: (Incl. items 15-19)

$176.99

$

Usually ships in 2-12 days

0

15

Snapper 7051663

CHUTE ASSEMBLY
(Superseded to 7051663YP)

$198.99

$

Usually ships in 2-12 days

0

16

Snapper 7091614

SCREW, 1/4-20 x 3/4" Slotted Rnd. Hd. Machine
(Superseded to 7091614YP)

Note: Was 90847

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7010916

SPACER
(Superseded to 7010916YP)

$5.49

$

In Stock, Qty 9

0

18

Snapper 7011763

WASHER, 5/16" I.D., 1" O.D.
(Superseded to 7011763SM)

$4.49

$

In Stock, only 3 left!

0

19

Snapper 7091545

NUT, 1/4-20 Hex Flng. Top Lock
(Superseded to 703916)

Note: Was 90477

$4.99

$

In Stock, only 2 left!

0

20

Snapper 7051711

SUPPORT ASSM'Y., Bag, Rear
(Superseded to 7051711YP)

Note: (Incl. items 21-24)

$62.99

$

Usually ships in 2-12 days

0

21

Snapper 7027671

TUBE, Support, Rear Bag

$

$

Currently unavailable

22

Snapper 7090529

BOLT, 1/4-28 x 1-1/4"
(Superseded to 7090529YP)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 7090053

WASHER, 1/4 Int. T. Lock
(Superseded to 703462)

Note: (2 with Assm'y. 51736 & 51711)

$4.49

$

In Stock, Qty 7

0

24

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

Note: (2 in Hrdw. Bag)

$3.49

$

Usually ships in 2-12 days

0

25

Snapper 7036229

SUPPORT, Rear Bag

$

$

Not available

26

Snapper 7038335

BRACKET, Support

$

$

Not available

27

Snapper 7015509

CABLE-TIE

$

$

Currently unavailable

28

Snapper 7014729

ROLLER
(Superseded to 7014729YP)

$8.49

$

In Stock, only 1 left!

0

29

Snapper 7090959

BOLT, 5/16-18 x 2-1/2" Carriage
(Superseded to 7090959SM)

$2.99

$

Usually ships in 2-12 days

0

30

Snapper 7090552

SCREW, 1/4-28 x 1-3/8" H.H.C.
(Superseded to 703828)

$3.99

$

Usually ships in 2-12 days

0

31

Snapper 7090541

SCREW, 1/4-28 x 3/4" H.H.C.
(Superseded to 7090541YP)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper 7091098

WASHER, 1/4 Flat
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

33

Snapper 7090228

SCREW,5/16-24 x 21/32" Mach.
(Superseded to 7090228SM)

$5.49

$

In Stock, Qty 20+

0

34

Snapper 7090391

WASHER, 5/16 Int. T. Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

35

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

36

Snapper 7031724

AIR-LIFT
(Superseded to 7031724YP)

$27.99

$

Usually ships in 2-12 days

0

37

Snapper 7012393

PIN, 1/4 x 1-1/8" Clevis
(Superseded to 7012393YP)

$4.49

$

Usually ships in 2-12 days

0

38

Snapper 7051739

EXTENSION ASSM'Y.

Note: (Incl. items 22-24, & 39) (Required for 41" Deck Only)

$

$

Currently unavailable

39

Snapper 7023114

TUBE, Extension Assm'y.

$

$

Not available

Snapper 7060838

HARDWARE BAG

$

$

Currently unavailable
